BB 4/AKZ2.5

BB 4/AKZ2.5

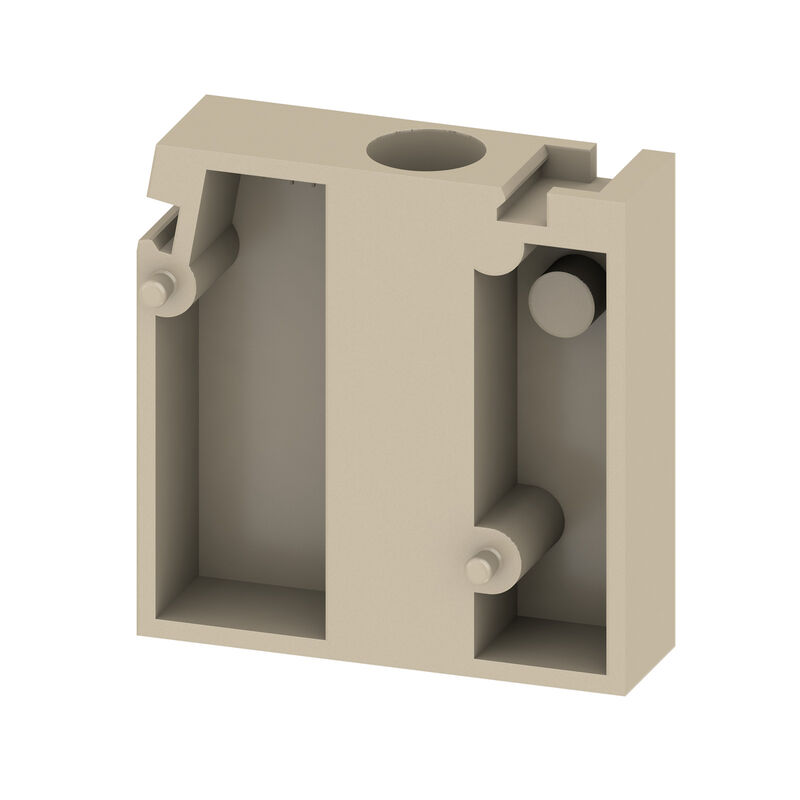

Partition plate (terminal), dark beige, Height: 25.85 mm, Width: 7.5 mm, V-0

Ürün No. 0697560000
Veri sayfasını indir Engineering Support
İlgili ürünler 7
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Additional technical data Product images Classifications Approvals

General ordering data

Version
Partition plate (terminal), dark beige, Height: 25.85 mm, Width: 7.5 mm, V-0
Order No.
0697560000
Type
BB 4/AKZ2.5
GTIN (EAN)
4008190165383
Qty.
50  adet

Dimensions and weights

Height
25,85  mm
Height (inches)
1,018  inch
Width
7,5  mm
Width (inches)
0,295  inch
Net weight
2,36  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Colour
dark beige
UL 94 flammability rating
V-0

Additional technical data

Snap-on
Yes

Product images

Classifications

ETIM 6.0
EC000886
ETIM 7.0
EC000886
ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 9.0
27-14-11-92
ECLASS 9.1
27-14-11-33
ECLASS 10.0
27-14-11-92
ECLASS 11.0
27-14-11-92
ECLASS 12.0
27-14-11-92
ECLASS 13.0
27-25-03-01
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01

Approvals

ROHS
Conform
