Properties
| Version | Mounting screw (Terminal), 2.50 mm, Depth: 3.8 mm, Width: 4.5 mm, Height: 14 mm |
| Order No. | 0266800000 |

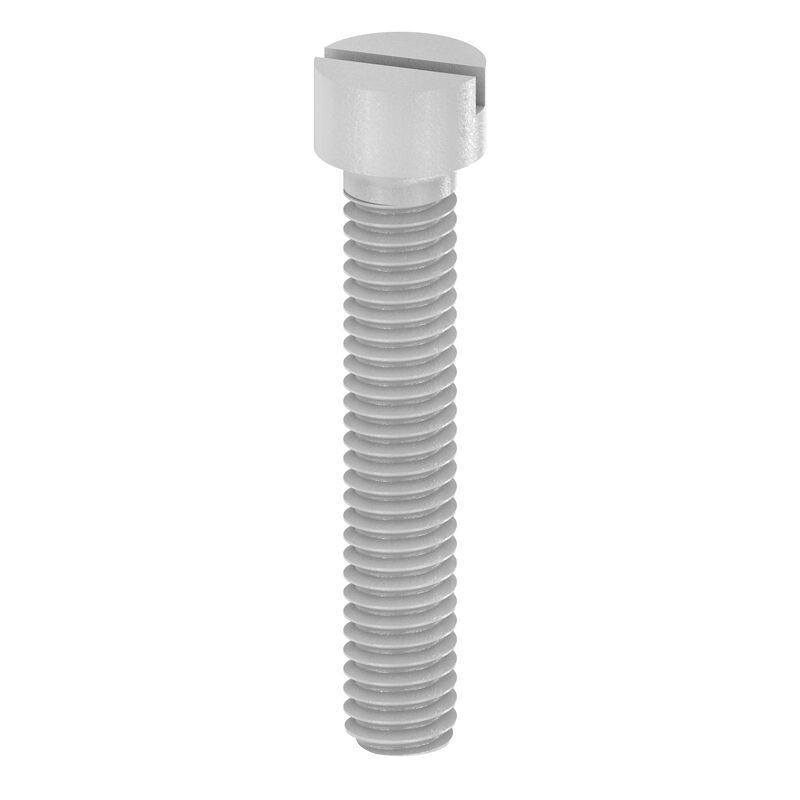

| Type | BFSC M2.5X14 SAKD2.5N |
| GTIN (EAN) | 4008190084899 |
| Qty. | 100 items |
| Depth | 3.8 mm |
| Depth (inches) | 0.15 inch |
| Height | 14 mm |
| Height (inches) | 0.551 inch |
| Width | 4.5 mm |
| Width (inches) | 0.177 inch |
| Diameter | 3.8 mm |
| Net weight | 0.5 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | beige |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Diameter | 3.8 mm |
| Metric size of the thread, external | 2.5 mm |
| Pitch in mm (P) | 5.1 mm |
| Installation advice | Direct mounting |
| Number of poles | 1 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74431) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0266800000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0266800000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
