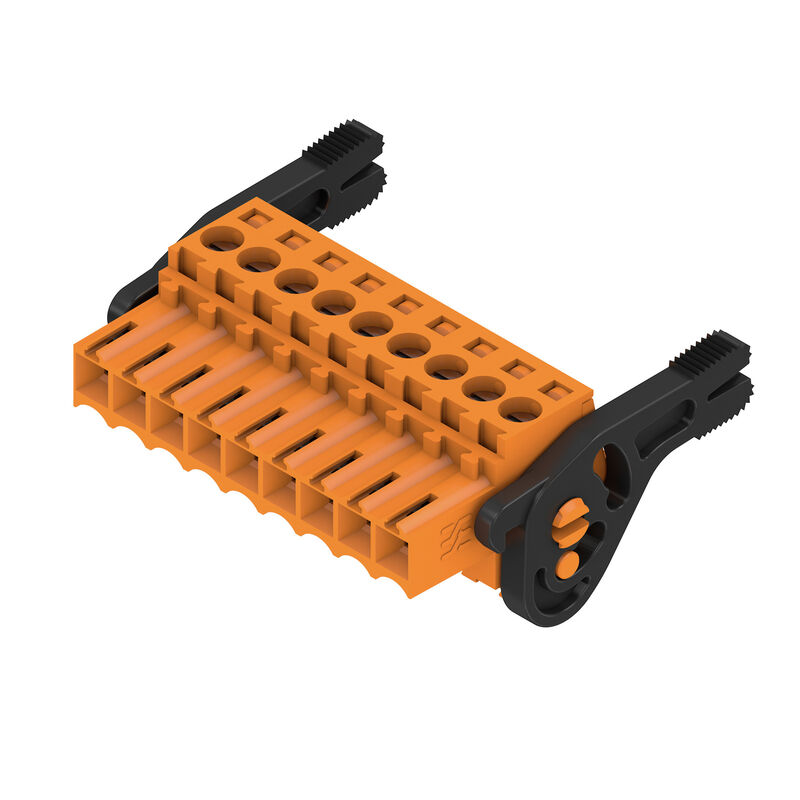

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 9, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box

Product ID 1531070000
Gegevensblad downloaden Engineering Support Product Downloads
Contradelen 2 Verwante producten 15
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 3.50 mm, Number of poles: 9, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box
Order No.
1531070000
Type
BL 3.50/09/180LR SN OR BX
GTIN (EAN)
4050118336146
Qty.
48  items
Product data
IEC: 320 V / 17 A / 0.2 - 1.5 mm²
UL: 300 V / 10 A / AWG 28 - AWG 14
Packaging
Box

Dimensions and weights

Depth
29,5  mm
Depth (inches)
1,161  inch
Height
14,9  mm
Height (inches)
0,587  inch
Width
38  mm
Width (inches)
1,496  inch
Net weight
8,881  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.062 kg CO2eq.

System Parameters

Product family
OMNIMATE Signal - series BL/SL 3.50
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
3,5  mm
Pitch in inches (P)
0,138  "
Conductor outlet direction
180°
Number of poles
9
L1 in mm
28  mm
L1 in inches
1,102  "
Number of rows
1
Pin series quantity
1
Rated cross-section
1,5  mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
when fully mounted
Volume resistance
≤5 mΩ
Can be coded
Yes
Stripping length
6  mm
Clamping screw
M 2
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
7  N
Pulling force/pole, max.
5  N
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0,2 Nm
      • max.:
        0,25 Nm

Material data

Insulating material
PBT
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
100  °C
Temperature range, installation, min.
-30  °C
Temperature range, installation, max.
100  °C

Conductors suitable for connection

Clamping range, min.
0,08  mm²
Clamping range, max.
1,5  mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2  mm²
Solid, max. H05(07) V-U
1,5  mm²
Flexible, min. H05(07) V-K
0,2  mm²
Flexible, max. H05(07) V-K
1,5  mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,2  mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1,5  mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,2  mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5  mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.4 mm x 1.5 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409500000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409600000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409700000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025740000
    • Stripping length:
      • nominal:
        5 mm
    • Recommended wire-end ferrule:
      9018910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025750000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17  A
Rated current, max. number of poles (Tu=20°C)
12  A
Rated current, min. number of poles (Tu=40°C)
14,5  A
Rated current, max. number of poles (Tu=40°C)
10  A
Rated voltage for surge voltage class / pollution degree II/2
320  V
Rated voltage for surge voltage class / pollution degree III/2
160  V
Rated voltage for surge voltage class / pollution degree III/3
160  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5  kV
Short-time withstand current resistance
3 x 1s with 100 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300  V
Rated voltage (Use group D / CSA)
300  V
Rated current (Use group B / CSA)
10  A
Rated current (Use group D / CSA)
10  A
Wire cross-section, AWG, min.
AWG 28
Wire cross-section, AWG, max.
AWG 14

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300  V
Rated voltage (Use group D / UL 1059)
300  V
Rated current (Use group B / UL 1059)
10  A
Rated current (Use group D / UL 1059)
10  A
Wire cross-section, AWG, min.
AWG 28
Wire cross-section, AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
351  mm
VPE width
136  mm
VPE height
38  mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, approval marking SEV, approval marking CSA
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Misengagement (Non-interchangeability)
  • Standard:
    DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN IEC 60512 part 7 section 5 / 05.94
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.99
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.2 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      2 × AWG 24/1
    • Type of conductor and conductor cross-section:
      2 × AWG 24/19 with wire end ferrule
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/7
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥5 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      2 × AWG 24/1
    • Type of conductor and conductor cross-section:
      2 × AWG 24/19 with wire end ferrule
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U1.5
    • Type of conductor and conductor cross-section:
      H05V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/7
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Max. outer diameter of the conductor: 2.9 mm
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC002638
ETIM 7.0
EC002638
ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 9.0
27-44-03-09
ECLASS 9.1
27-44-03-09
ECLASS 10.0
27-44-03-09
ECLASS 11.0
27-46-02-02
ECLASS 12.0
27-46-02-02
ECLASS 13.0
27-46-02-02
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
