Properties
| Version | Clamping yoke, Set of fixings, Steel |
| Order No. | 1768020000 |

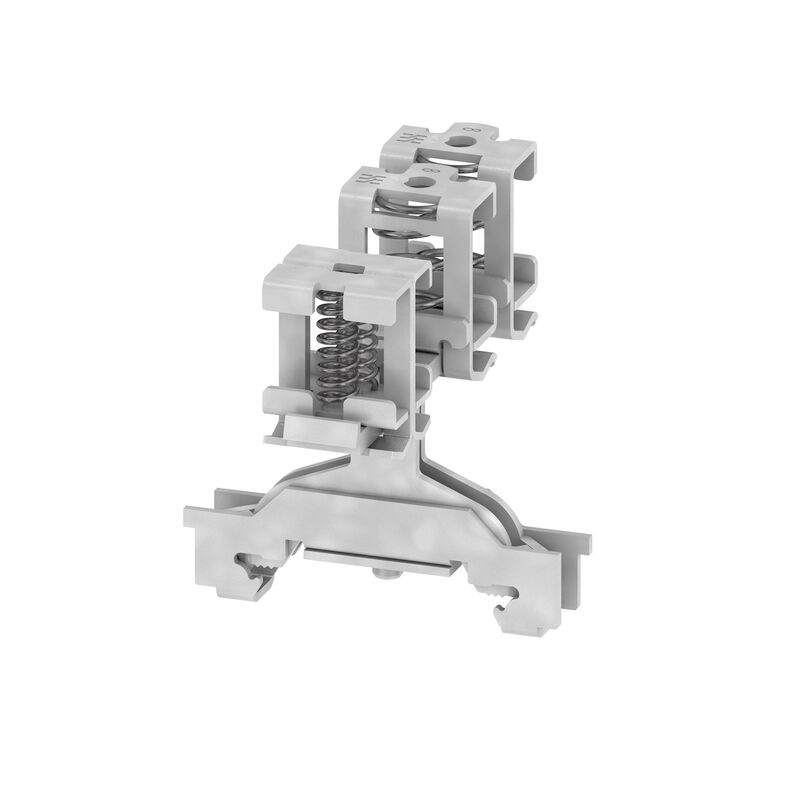

| Type | BS 35II KLBUE2X3-8/2X2-6 |
| GTIN (EAN) | 4032248109296 |
| Qty. | 10 items |
| Depth | 36.5 mm |
| Depth (inches) | 1.437 inch |
| Height | 35 mm |
| Height (inches) | 1.378 inch |
| Diameter | 3 mm |
| Net weight | 72 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Steel |
| Colour | silver |
| Version | Clamping yoke |
| Rail | TS 35 |
| Explosion-tested version | Yes |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 3 mm |
| Diameter | 3 mm |
| TS 35 offset | 26.5 mm |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63498) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1768020000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1768020000) |
| User Documentation |
[Beipackzettel_KLBUE.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35361)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
