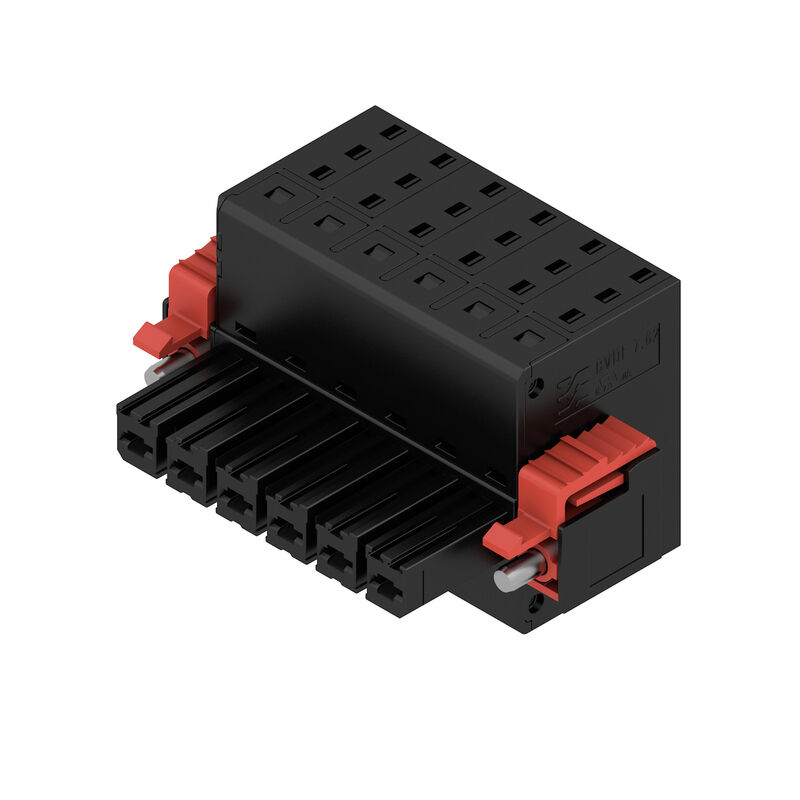

BVDF 7.62HP/06/180SF SN BK BX
Product image
BVDF 7.62HP/06/180SF SN BK BX
Product image
BVDF 7.62HP/06/180SF SN BK BX
Dimensional drawing
Similar to illustration
BVDF 7.62HP/06/180SF SN BK BX
Derating curve
BVDF 7.62HP/06/180SF SN BK BX
Product benefits
BVDF 7.62HP/06/180SF SN BK BX
Product benefits
BVDF 7.62HP/06/180SF SN BK BX
Product benefits

BVDF 7.62HP/06/180SF SN BK BX

PCB plug-in connector, female plug, 7.62 mm, Number of poles: 6, 180°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 10 mm², Box

Ürün No. 2720520000
Veri sayfasını indir Engineering Support Product Downloads
Karşı parçalar 5 İlgili ürünler 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 7.62 mm, Number of poles: 6, 180°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 10 mm², Box
Order No.
2720520000
Type
BVDF 7.62HP/06/180SF SN BK BX
GTIN (EAN)
4050118815955
Qty.
15  adet
Product data
IEC: 600 V / 46 A / 0.5 - 10 mm²
UL: 600 V / 35 A / AWG 24 - AWG 8
Packaging
Box

Dimensions and weights

Depth
42,55  mm
Depth (inches)
1,675  inch
Height
35,05  mm
Height (inches)
1,38  inch
Width
73,66  mm
Width (inches)
2,9  inch
Net weight
82,325  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Power - series BV/SV 7.62HP
Type of connection
Field connection
Wire connection method
PUSH IN with actuator
Tension-clamp connection
Pitch in mm (P)
7,62  mm
Pitch in inches (P)
0,3  "
Conductor outlet direction
180°
Number of poles
6
L1 in mm
38,1  mm
L1 in inches
1,5  "
Number of rows
2
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Protection degree
IP20
Volume resistance
4.50 mΩ
Can be coded
Yes
Stripping length
12  mm
Stripping length tolerance
  • min.:
    -1 mm
  • max.:
    1 mm
Tightening torque for screw flange, min.
0,3  Nm
Tightening torque for screw flange, max.
0,5  Nm
Screwdriver blade
0.6 x 3.5
Plugging cycles
25
Plugging force/pole, max.
12  N
Pulling force/pole, max.
12  N

Material data

Insulating material
PA GF
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 4...10 µm Sn
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
120  °C

Conductors suitable for connection

Clamping range, min.
0,5  mm²
Clamping range, max.
10  mm²
Wire connection cross section AWG, min.
AWG 24
Wire connection cross section AWG, max.
AWG 8
Solid, min. H05(07) V-U
0,5  mm²
Solid, max. H05(07) V-U
10  mm²
Stranded, min. H07V-R
1,5  mm²
Stranded, max. H07V-R
6  mm²
Flexible, min. H05(07) V-K
0,5  mm²
Flexible, max. H05(07) V-K
10  mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,5  mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,5  mm²
w. wire end ferrule, DIN 46228 pt 1, max.
6  mm²
Clampable conductor
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      0409500000
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9025910000
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9025930000
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9004060000
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9019140000
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0186100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019170000
  • Cross-section for conductor connection:
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0244100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019200000
  • Cross-section for conductor connection:
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0191900000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      0533500000
  • Cross-section for conductor connection:
    • nominal:
      10 mm²
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
46  A
Rated current, max. number of poles (Tu=20°C)
41  A
Rated current, min. number of poles (Tu=40°C)
38  A
Rated current, max. number of poles (Tu=40°C)
37,5  A
Rated voltage for surge voltage class / pollution degree II/2
600  V
Rated voltage for surge voltage class / pollution degree III/2
600  V
Rated voltage for surge voltage class / pollution degree III/3
600  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6  kV
Short-time withstand current resistance
3 x 1s with 400 A
Clearance, min.
10,36  mm
Creepage distance, min.
11,03  mm

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
600  V
Rated voltage (Use group C / UL 1059)
600  V
Rated voltage (Use group D / UL 1059)
600  V
Rated current (Use group B / UL 1059)
35  A
Rated current (Use group C / UL 1059)
35  A
Rated current (Use group D / UL 1059)
35  A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 8
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
338  mm
VPE width
130  mm
VPE height
54  mm

Type tests

Test: Durability of markings
  • Standard:
    IEC 61984 section 7.3.2 / 10.08 Taking pattern from IEC 60068-2-70 / 12.95
  • Test:
    mark of origin, type identification, pitch, durability
  • Evaluation:
    available
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 04.08
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
    • Type of conductor and conductor cross-section:
      H07V-K6
    • Type of conductor and conductor cross-section:
      H07V-K10
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 8/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    1.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-K6
  • Evaluation:
    passed
  • Requirement:
    2.0 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U10
    • Type of conductor and conductor cross-section:
      AWG 8/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    IEC 60999-1 section 9.5 / 11.99
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥80 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-K6
  • Evaluation:
    passed
  • Requirement:
    ≥ 90N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-K10
    • Type of conductor and conductor cross-section:
      AWG 8/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC002638
ETIM 7.0
EC002638
ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 9.0
27-44-03-09
ECLASS 9.1
27-44-03-09
ECLASS 10.0
27-44-03-09
ECLASS 11.0
27-46-02-02
ECLASS 12.0
27-46-02-02
ECLASS 13.0
27-46-02-02
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
