CH20M AD SHL 5.00/04 BL 2013
Dimensioned drawing

CH20M AD SHL 5.00/04 BL 2013

Item No. 3179030000
Download data sheet Product Downloads
Related products 3
Approvals General ordering data Dimensions and weights Temperatures Material data General data Product images Classifications

Approvals

ROHS
Conform

General ordering data

Order No.
3179030000
Type
CH20M AD SHL 5.00/04 BL 2013
GTIN (EAN)
4099987894142
Qty.
50 items

Dimensions and weights

Depth
15.2 mm
Depth (inches)
0.598 inch
Height
23.4 mm
Height (inches)
0.921 inch
Width
22.5 mm
Width (inches)
0.886 inch
Net weight
1.61 g

Temperatures

Humidity
5 - 93% rel. humidity, Tu = 40°C, no condensation

Material data

Basic material
Plastic
Comparative Tracking Index (CTI)
600 ≤ CTI
Insulating material
PA 66 GF 30
Insulating material group
I
Surface finish
untreated
UL 94 flammability rating
V-0

General data

Colour
black
Colour chart (similar)
RAL 9011
Encapsulation option
No
Protection degree
IP20 in installed state

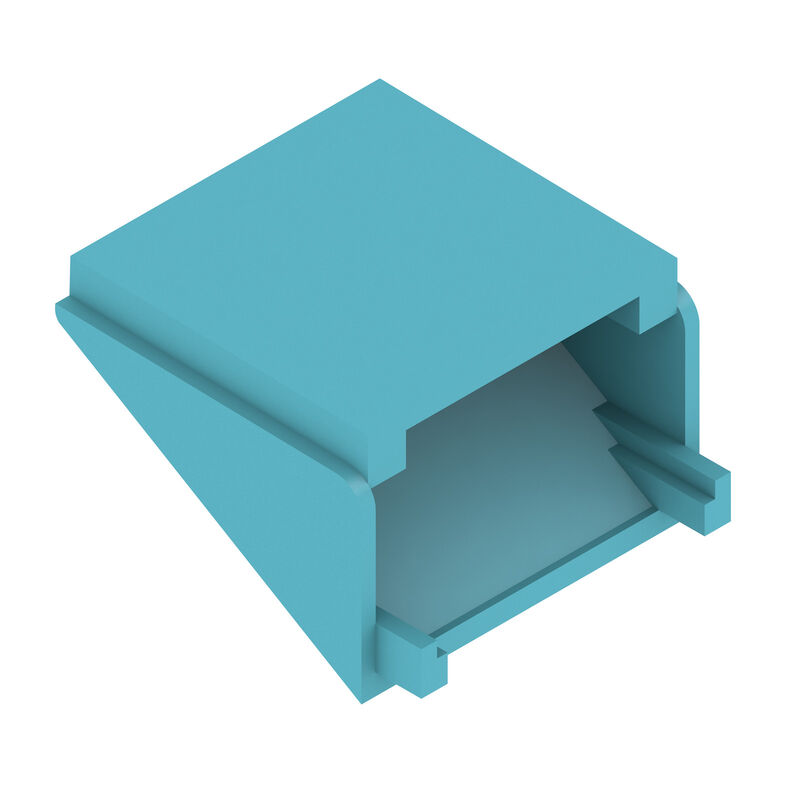

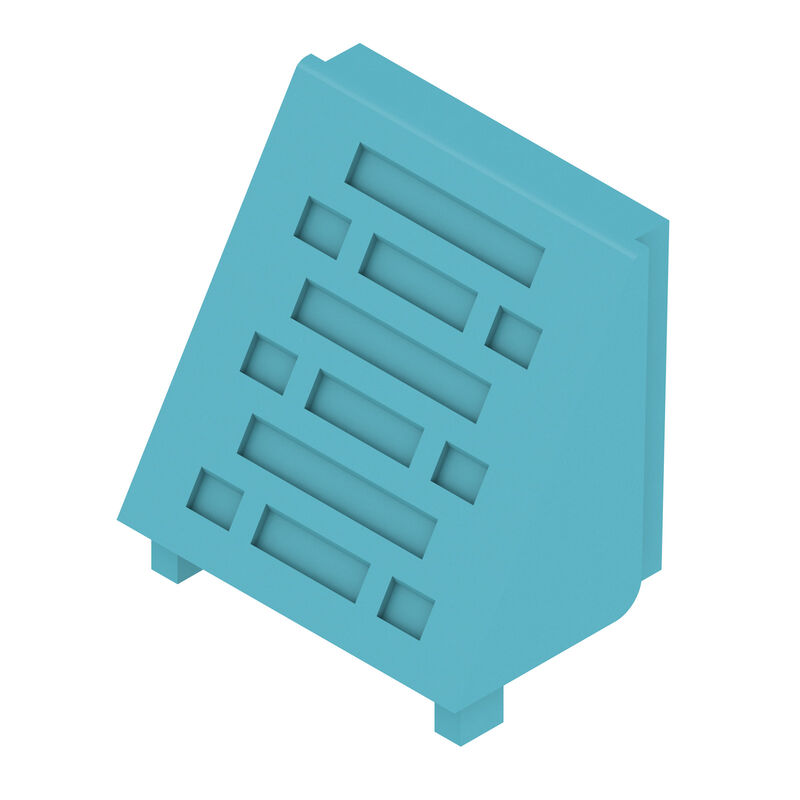

Product images

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-06-05
ECLASS 15.0
27-19-06-05
