Properties

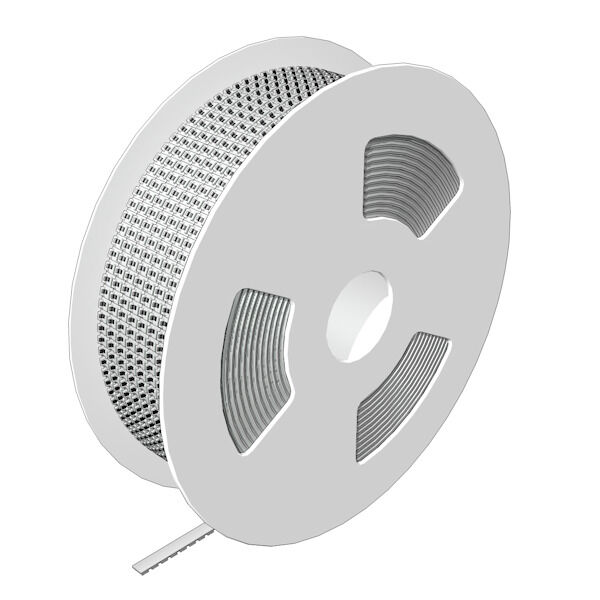

| Version | Dekafix, Terminal marker, 5 x 6 mm, Weidmueller, white |
| Order No. | 2619780000 |
| Type | DEK 5/6 MM BP WS |
| GTIN (EAN) | 4050118626308 |
| Qty. | 9,000 items |
| Height | 5 mm |
| Height (inches) | 0.197 inch |
| Width | 6 mm |
| Width (inches) | 0.236 inch |
| Net weight | 0.089 g |
| Operating temperature range | -50...90 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Application/manufacturer | Weidmueller |
| Colour | white |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material |
PC-ABS
TPU |
| Operating temperature range | -50...90 °C |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -50 °C |
| Orientation of print | horizontal and vertical |
| Printed characters | without |
| Size of labelling field | 4.5 x 5.7 mm |
| UL 94 flammability rating | V-2 |
| Version | halogen-free |
| Width | 6 mm |
| Product information | External roll holder 1302920000 necessary |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_225359) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2619780000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2619780000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2619780000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
