DTLE 2.5/4

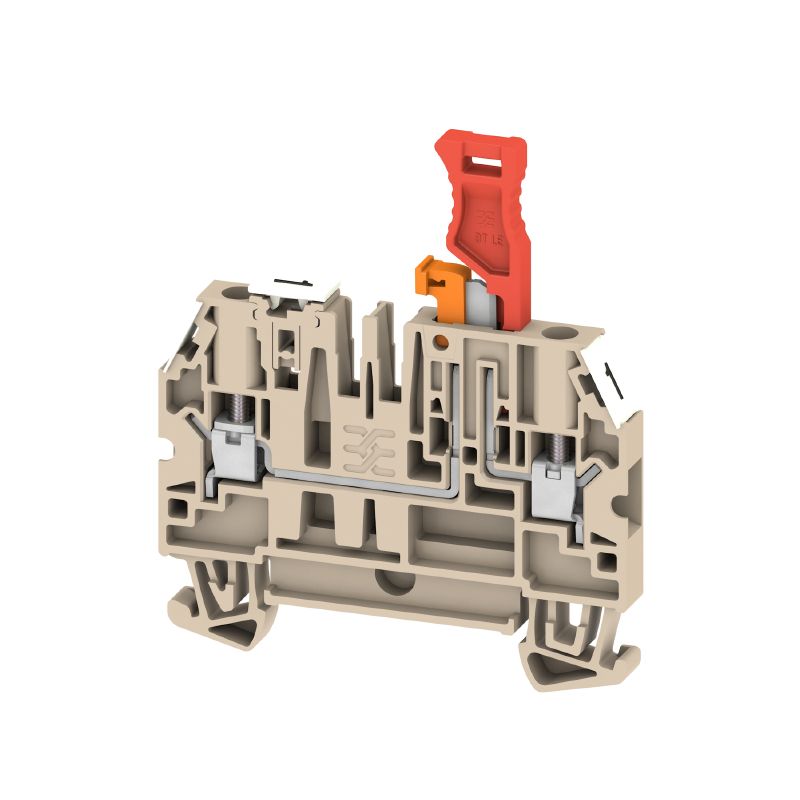

Locking element (terminal), Wemid, red

Item No. 2910530000

Properties

General ordering data

Version	Locking element (terminal), Wemid, red
Order No.	2910530000
Type	DTLE 2.5/4
GTIN (EAN)	4099986519466
Qty.	25 items

Dimensions and weights

Depth	34.4 mm
Depth (inches)	1.354 inch
Height	11 mm
Height (inches)	0.433 inch
Width	4 mm
Width (inches)	0.157 inch
Net weight	0.555 g

Temperatures

Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	red
UL 94 flammability rating	V-0

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_293281)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2910530000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002848
ETIM 7.0	EC002848
ETIM 8.0	EC002848
ETIM 9.0	EC002848
ECLASS 9.0	27-14-11-92
ECLASS 9.1	27-14-11-92
ECLASS 10.0	27-14-11-92
ECLASS 11.0	27-14-11-92
ECLASS 12.0	27-14-11-92
ECLASS 13.0	27-25-03-90
ECLASS 14.0	27-25-03-90

Approvals

ROHS

Conform
