Properties

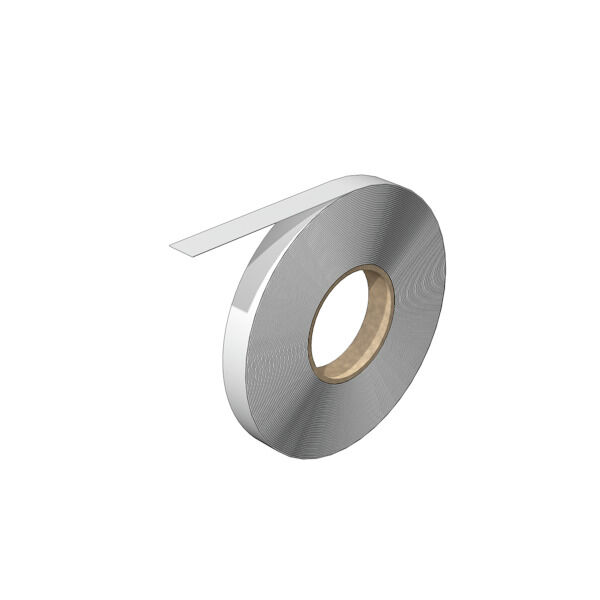

| Version | Terminal marker, 7.6 x 5 mm, white |
| Order No. | 2799280000 |
| Type | EL KSM 7.6 MM WS 30M |
| GTIN (EAN) | 4064675261049 |
| Qty. | 1 items |
| Depth | 0.7 mm |
| Depth (inches) | 0.028 inch |
| Height | 7.6 mm |
| Height (inches) | 0.299 inch |
| Width | 5 mm |
| Width (inches) | 0.197 inch |
| Net weight | 130 g |
| Operating temperature range | -50...90 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| Halogen | No |
| Material | Polypropylene |
| Operating temperature range | -50...90 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -50 °C |
| UL 94 flammability rating | V-2 |
| Version | halogen-free |
| Width | 5 mm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
