Properties

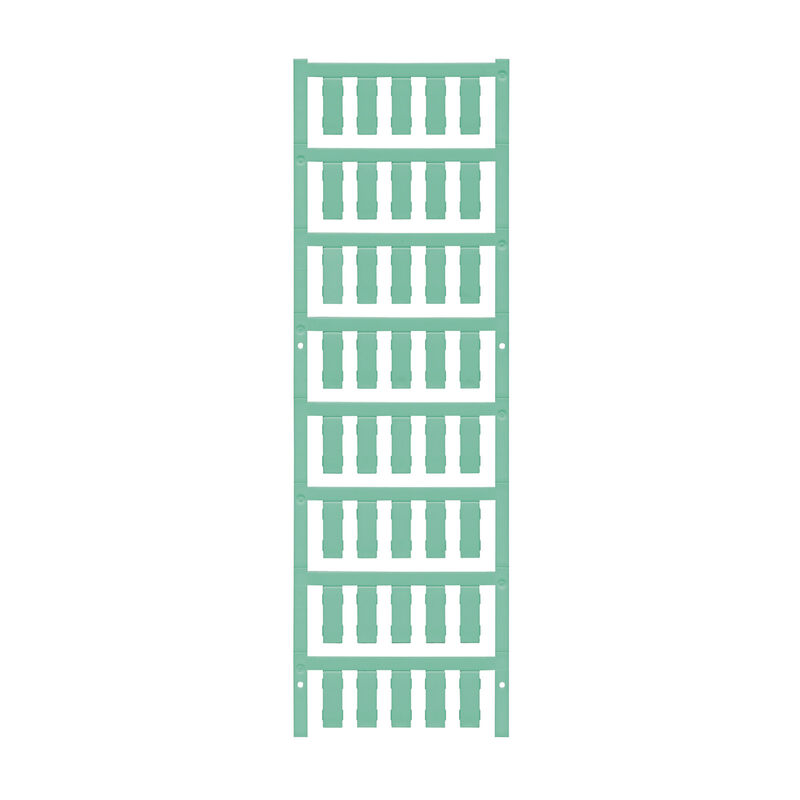

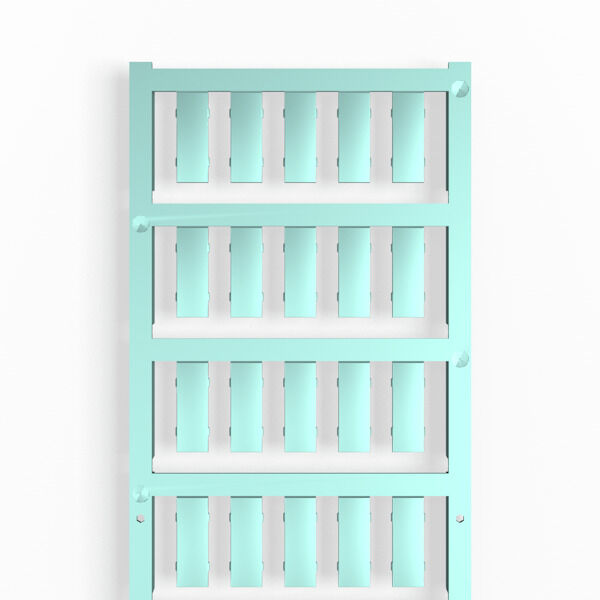

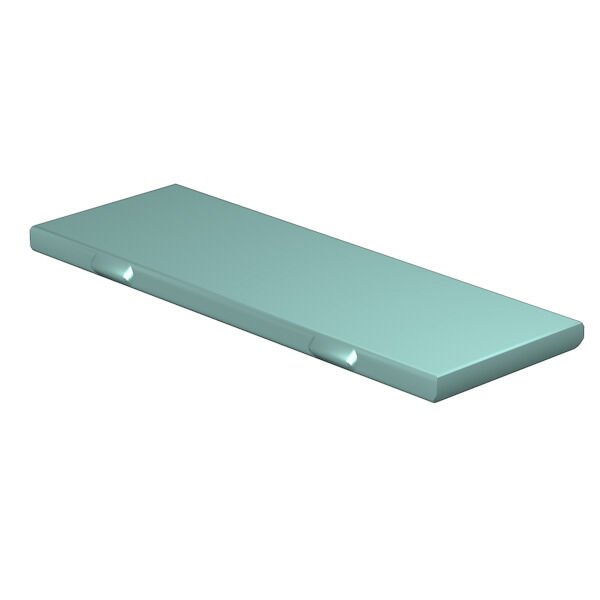

| Version | ESG, Device markers x 20 mm, PA 66, Colour: Turquoise, pluggable |
| Order No. | 1736181696 |
| Type | ESG 7/20 SIRIUS MC NE TU |
| GTIN (EAN) | 4008190985967 |
| Qty. | 200 items |
| Depth | 0.8 mm |
| Depth (inches) | 0.031 inch |
| Height | 7 mm |
| Height (inches) | 0.276 inch |
| Width | 20 mm |
| Width (inches) | 0.787 inch |
| Net weight | 0.52 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Application/manufacturer | Siemens Sirius 3R |
| Colour | Turquoise |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | PA 66 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Number of markers per packaging unit |
|
| Number per roll | 40 |
| Number per sheet | 40 |
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| UL 94 flammability rating | V-2 |
| Version | pluggable |
| Width | 20 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63175) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1736181696) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1736181696) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
