Properties
| Version | ESG, Device markers x 17 mm, PA 66, Colour: To customer specification, Self-adhesive |
| Order No. | 1674770000 |

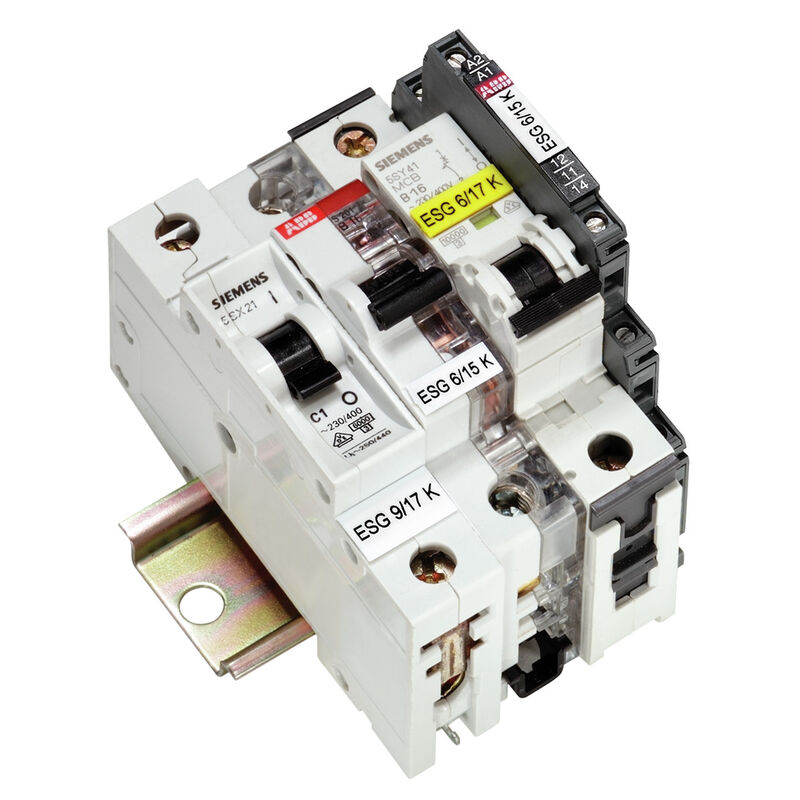

| Type | ESG 9/17 K MC SDR |
| GTIN (EAN) | 4008190447656 |
| Qty. | 40 items |
| Depth | 0.8 mm |
| Depth (inches) | 0.031 inch |
| Height | 9 mm |
| Height (inches) | 0.354 inch |
| Width | 17 mm |
| Width (inches) | 0.669 inch |
| Net weight | 0.38 g |
| Operating temperature range | -40...60 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Double-sided adhesive tape |
| Application/manufacturer | Self-adhesive |
| Colour | To customer specification |
| Colour of printing | black |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | PA 66 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Number of markers per packaging unit |
|
| Number per sheet | 40 |
| Operating temperature range | -40...60 °C |
| Operating temperature range, max. | 60 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | Based on customer requirements (Please send M-Print PRO file) |
| Printing method | MC Laser |
| UL 94 flammability rating | V-2 |
| Version | Self-adhesive |
| Width | 17 mm |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1674770000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
Is accessory of
-
Item No.:2519490000Packaging unit:1 PC
Potential distributor terminal, Screw connection, blue, 185 mm², 490 A, 1000 V, Number of connections: 10, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
-
Item No.:2521770000Packaging unit:1 PC
Potential distributor terminal, Screw connection, blue, 35 mm², 214 A, 1000 V, Number of connections: 18, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
-
Item No.:2518540000Packaging unit:1 PC
Potential distributor terminal, Screw connection, blue, 35 mm², 214 A, 1000 V, Number of connections: 7, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
-
Item No.:2519470000Packaging unit:1 PC
Potential distributor terminal, Screw connection, blue, 35 mm², 214 A, 1000 V, Number of connections: 12, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
-
Item No.:2518250000Packaging unit:1 PC
Potential distributor terminal, Screw connection, blue, 25 mm², 164 A, 1000 V, Number of connections: 7, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
-
Item No.:2518330000Packaging unit:1 PC
Potential distributor terminal, Screw connection, blue, 25 mm², 164 A, 1000 V, Number of connections: 12, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
-
Item No.:2518340000Packaging unit:1 PC
Potential distributor terminal, Screw connection, blue, 25 mm², 164 A, 1000 V, Number of connections: 18, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
-
Item No.:2519480000Packaging unit:1 PC
Potential distributor terminal, Screw connection, blue, 120 mm², 400 A, 1000 V, Number of connections: 10, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
-
Item No.:2518570000Packaging unit:1 PC
Potential distributor terminal, Screw connection, blue, 70 mm², 215 A, 1000 V, Number of connections: 6, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
-
Item No.:2521730000Packaging unit:1 PC
Potential distributor terminal, Screw connection, blue, 95 mm², 270 A, 1000 V, Number of connections: 11, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
