Properties

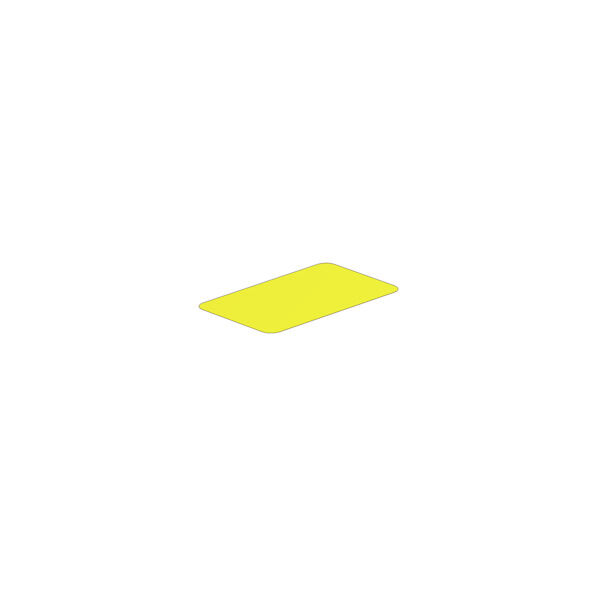

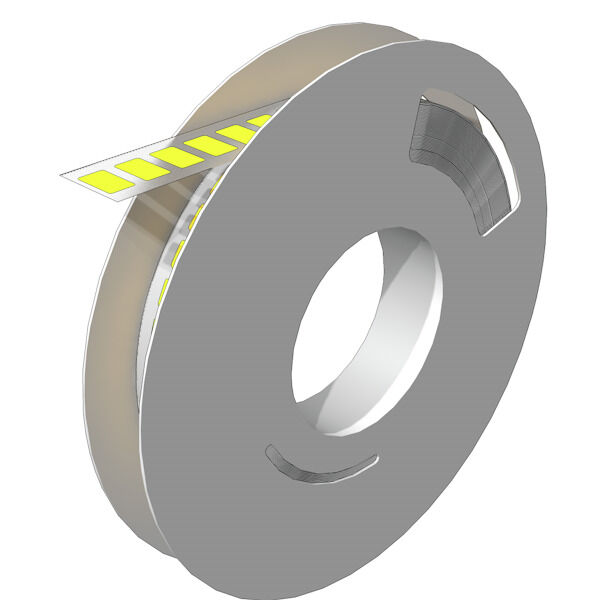

| Version | ESG, Device markers, 9 x 15 mm, yellow |
| Order No. | 2835980000 |
| Type | ESG-LP 9/15 MM GE |
| GTIN (EAN) | 4064675427940 |
| Qty. | 15,000 items |
| Depth | 0.05 mm |
| Depth (inches) | 0.002 inch |
| Height | 9 mm |
| Height (inches) | 0.354 inch |
| Width | 15 mm |
| Width (inches) | 0.591 inch |
| Net weight | 0.026 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Acrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | yellow |
| Halogen | No |
| Material | Polyamide |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | without |
| UL 94 flammability rating | V-0 |
| Version |
Self-adhesive
halogen-free |
| Width | 15 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_245588) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2835980000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
