Properties

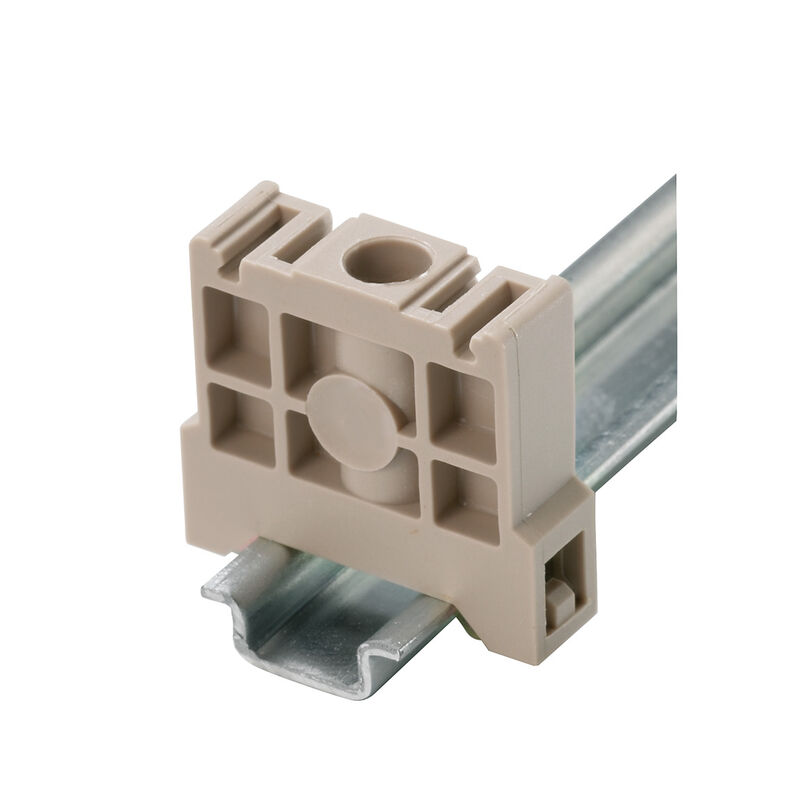

| Version | End bracket, dark beige, TS 15, HB, Plastic, Width: 8 mm, 100 °C |
| Order No. | 1071900000 |
| Type | EW 15/2 |
| GTIN (EAN) | 4008190462949 |
| Qty. | 50 items |
| Depth | 25 mm |
| Depth (inches) | 0.984 inch |
| Height | 27 mm |
| Height (inches) | 1.063 inch |
| Width | 8 mm |
| Width (inches) | 0.315 inch |
| Net weight | 5.2 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Plastic |
| Colour | dark beige |
| UL 94 flammability rating | HB |
| Version | For the terminals |
| Rail | TS 15 |
| Interlock | for screw fixing |
| Type of mounting | Direct mounting |
| Blade size | 0.6 x 3.5 mm |
| Tightening torque, min. | 0.5 Nm |
| TS 15 offset | 13.5 mm |
| Rail | TS 15 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data |
[CAD data -- 22353_EW_15-2_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_38059)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60260) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1071900000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1071900000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1071900000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001041 |
| ETIM 7.0 | EC001041 |
| ETIM 8.0 | EC001041 |
| ETIM 9.0 | EC001041 |
| ECLASS 9.0 | 27-14-11-35 |
| ECLASS 9.1 | 27-14-11-35 |
| ECLASS 10.0 | 27-14-11-35 |
| ECLASS 11.0 | 27-14-11-35 |
| ECLASS 12.0 | 27-14-11-35 |
| ECLASS 13.0 | 27-25-03-02 |
| ECLASS 14.0 | 27-25-03-02 |
| ROHS | Conform |
