Properties
| Version | Standard distributor, 1-way distributor, IP66, Branch line M12 |
| Order No. | 8564060000 |

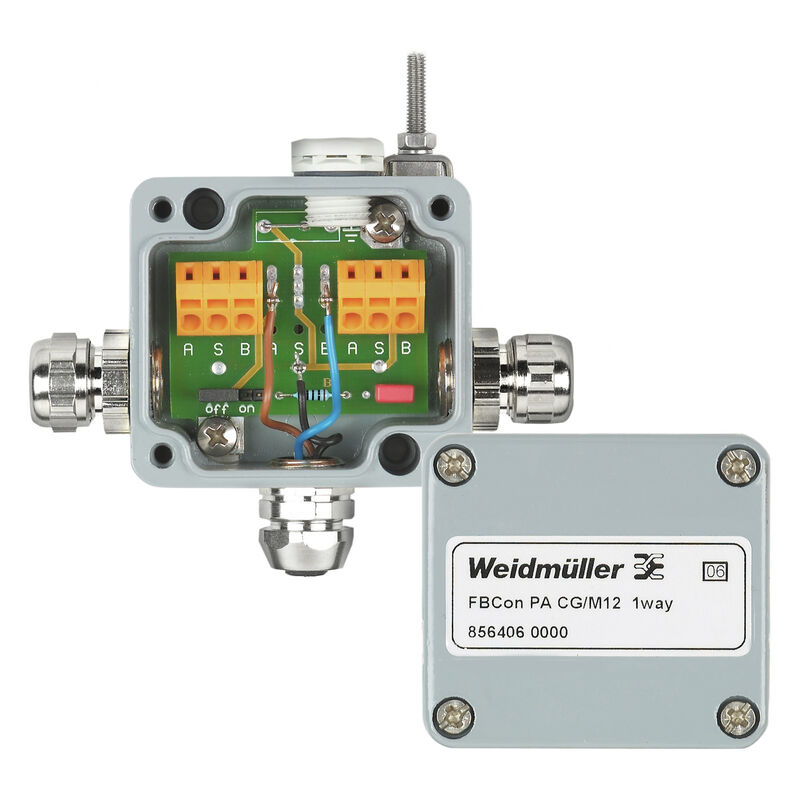

| Type | FBCON PA CG/M12 1WAY |
| GTIN (EAN) | 4032248236596 |
| Qty. | 1 items |
| Height | 37 mm |
| Height (inches) | 1.457 inch |
| Width | 58 mm |
| Width (inches) | 2.283 inch |
| Length | 64 mm |
| Length (inches) | 2.52 inch |
| Net weight | 258 g |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C...75 °C |
| Operating temperature | -40 °C...75 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 3a5f5913-76fc-4ff5-8563-4463f80bbe02 |
| Bus system |
Profibus-PA
Foundation Fieldbus |
| Cable entry | Branch line M12 |
| Cable glands | Brass cable gland |
| Conductor O.D., max. | 9.5 mm |
| Conductor O.D., min. | 5.5 mm |
| Connection type PE | M12 spur line |
| Contact carrier material | Brass |
| Contact material | CuZnAu |
| Design of housing | With pressure compensation element |
| Housing main material |
Aluminium
AISi12 Aluminum |
| Housing surface | stove enamelled |
| Number of contact sockets | 1 |
| Operating voltage | 10 ... 31 V DC |
| Operating voltage Umax, max. | 32 V |
| Pollution severity | 3 |
| Protection degree | IP66 |
| Type of distribution | 1-way distributor |
| Type of mounting | surface-mounted |
| Approval/Certificate/Document of Conformity |
[Certification UL for Canada](https://mdcop.weidmueller.com/mediadelivery/asset/900_317640)
[Certification UL for US](https://mdcop.weidmueller.com/mediadelivery/asset/900_317641) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_317719) |
| Product Change Notification | [20220208 Technical change to FBCon field distributors (passive, with aluminum housings)](https://mdcop.weidmueller.com/mediadelivery/asset/900_251153) |
| Software | [WI-Segment-Calculator](https://mdcop.weidmueller.com/mediadelivery/asset/900_90759) |
| User Documentation |
[Application-Guide-Planning and installing Fieldbus networks-using-FBCon_english_deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_90760)
[FBCon Segment Calculator_english](https://mdcop.weidmueller.com/mediadelivery/asset/900_101984) [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_317163) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| ETIM 9.0 | EC001604 |
| ECLASS 9.0 | 27-24-26-08 |
| ECLASS 9.1 | 27-24-26-08 |
| ECLASS 10.0 | 27-24-26-08 |
| ECLASS 11.0 | 27-24-26-08 |
| ECLASS 12.0 | 27-44-01-11 |
| ECLASS 13.0 | 27-44-01-11 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
