Properties

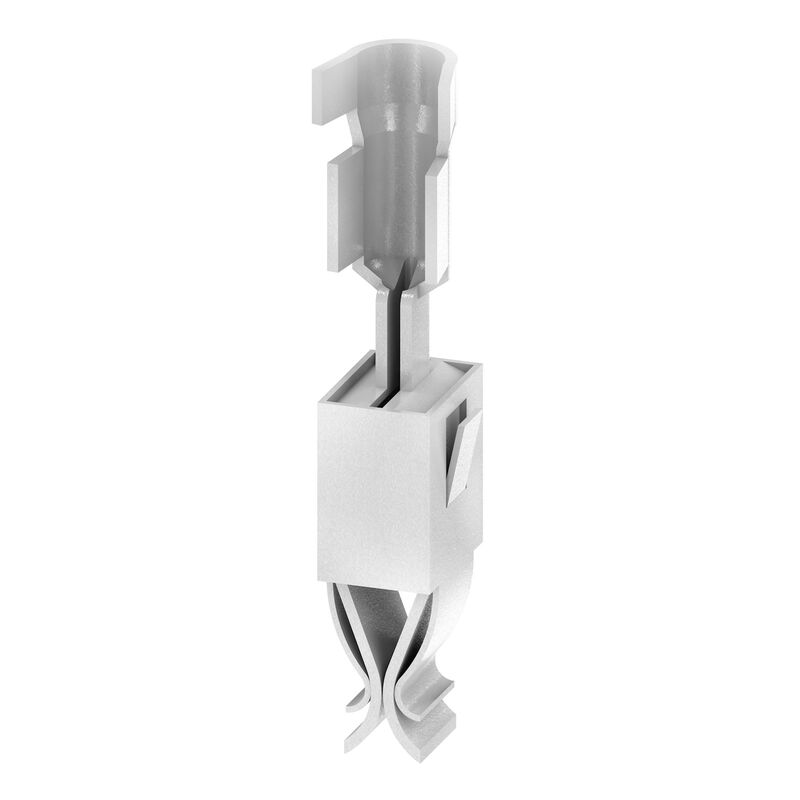

| Version | Z-series, Crimp contact, 4.15 mm, silver, Direct mounting |
| Order No. | 1854760000 |
| Type | FEKO ZRV2.5 0.5-1 |
| GTIN (EAN) | 4032248401314 |
| Qty. | 5,000 items |
| Packaging | Multipack bag |
| Depth | 3.1 mm |
| Depth (inches) | 0.122 inch |
| Height | 19.8 mm |
| Height (inches) | 0.78 inch |
| Width | 4.15 mm |
| Width (inches) | 0.163 inch |
| Net weight | 0.648 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | 130 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | c6099607-b1cd-4fc8-8f5b-8c2defa73093 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| Material | CuSn |
| Colour | silver |
| Version | Spring contact |
| Installation advice | Direct mounting |
| Type of connection | Spring contact |
| Installation advice | Direct mounting |
| Rated cross-section | 2.5 mm² |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64388) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1854760000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1854760000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [CAT 1 TERM 16/17 EN](http://download.weidmueller.com/asset/download/file/39470) |
| ETIM 6.0 | EC000796 |
| ETIM 7.0 | EC000796 |
| ETIM 8.0 | EC000796 |
| ETIM 9.0 | EC000796 |
| ECLASS 9.0 | 27-44-02-04 |
| ECLASS 9.1 | 27-44-02-04 |
| ECLASS 10.0 | 27-44-02-04 |
| ECLASS 11.0 | 27-44-02-04 |
| ECLASS 12.0 | 27-44-02-04 |
| ECLASS 13.0 | 27-44-02-04 |
| ECLASS 14.0 | 27-44-02-04 |
| ROHS | Conform |
