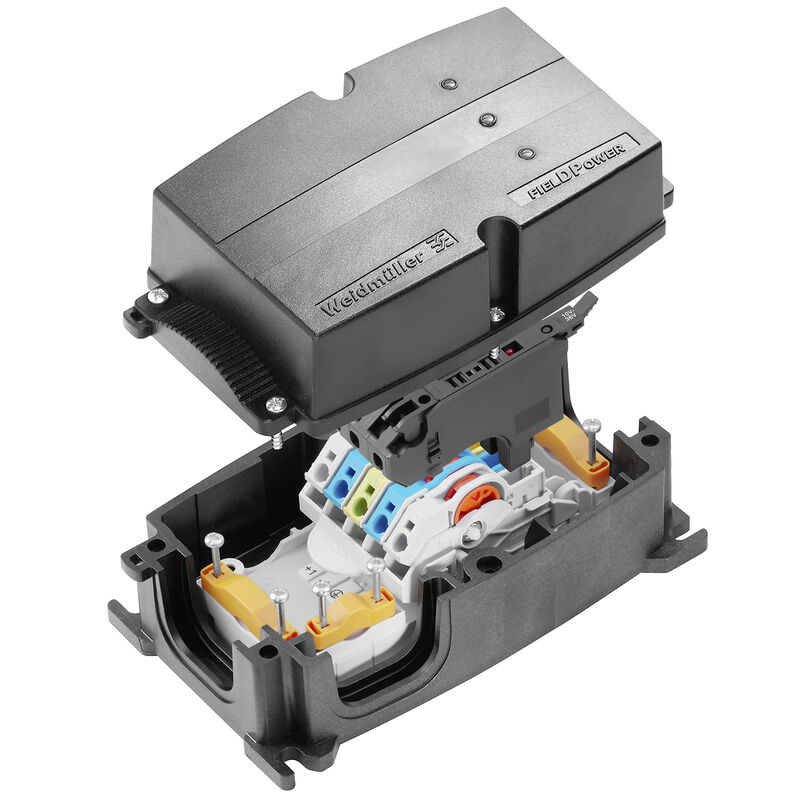

FP BOX FUSE DC

FieldPower® power distribution box, DC, IP65, in complete state, glass-fibre reinforced polycarbonate, Insulation displacement connection (IDC), PUSH IN, Fuse

Item No. 8000007924

Properties

General ordering data

Version	FieldPower® power distribution box, DC, IP65, in complete state, glass-fibre reinforced polycarbonate, Insulation displacement connection (IDC), PUSH IN, Fuse
Order No.	8000007924
Type	FP BOX FUSE DC
GTIN (EAN)	4050118195439
Qty.	1 items

Dimensions and weights

Depth	86 mm
Depth (inches)	3.386 inch
Width	104 mm
Width (inches)	4.094 inch
Net weight	700 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...55 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7cI
REACH SVHC	Potassium perfluorobutane sulfonate 29420-49-3
SCIP	5f19cd84-8946-4797-9386-3ac323b95c10

Clamping capacity

Connection data - contact element power bus	Wire connection method: Insulation displacement connection (IDC) Blade size of operating tool: 0.6 x 3.5 mm Number of poles: 5 Conductor connection cross-section, solid, max.: 6 mm² Conductor connection cross-section, solid, min.: 1.5 mm² Conductor connection cross-section, stranded, max.: 6 mm² Conductor connection cross-section, stranded, min.: 2.5 mm² Conductor connection cross-section, finely stranded, max.: 6 mm² Conductor connection cross-section, finely stranded, min.: 2.5 mm² Conductor connection cross-section, finest stranded, max.: 6 mm² Conductor connection cross-section, finest stranded, min.: 2.5 mm²
Connection data - contact element Branch / Feed-in	Wire connection method: PUSH IN Blade size of operating tool: 0.6 x 3.5 mm Stripping length: 14 mm Number of poles: 5 Conductor connection cross-section, solid, max.: 6 mm² Conductor connection cross-section, solid, min.: 0.5 mm² Conductor connection cross-section, stranded, max.: 6 mm² Conductor connection cross-section, stranded, min.: 0.5 mm² Conductor connection cross-section, finely stranded, max.: 10 mm² Conductor connection cross-section, finely stranded, min.: 0.5 mm² Conductor connection cross-section, finest stranded, max.: 6 mm² Conductor connection cross-section, finest stranded, min.: 0.5 mm² Conductor connection cross-section with wire end ferrule: Type of wire end ferrule: 12 mm with plastic collar Standard: DIN 46228/1 Cross-section, min.: 0.5 mm² Cross-section, max.: 6 mm² Type of wire end ferrule: 12 mm with plastic collar Standard: DIN 46228/4 Cross-section, min.: 0.5 mm² Cross-section, max.: 6 mm² Type of wire end ferrule: 8 mm with plastic collar Standard: DIN 46228/1 Cross-section, min.: 0.5 mm² Cross-section, max.: 6 mm² Type of wire end ferrule: 8 mm with plastic collar Standard: DIN 46228/4 Cross-section, min.: 0.5 mm² Cross-section, max.: 6 mm² Type of wire end ferrule: Twin wire-end ferrules Cross-section, min.: 0.5 mm² Cross-section, max.: 6 mm²
Connection data - plug-in connector	Wire connection method: PUSH IN Blade size of operating tool: 3.0 x 0.5 mm Stripping length: 12 mm Number of poles: 5 Conductor connection cross-section, solid, max.: 4 mm² Conductor connection cross-section, solid, min.: 0.5 mm² Conductor connection cross-section, stranded, max.: 4 mm² Conductor connection cross-section, stranded, min.: 0.5 mm² Conductor connection cross-section, finely stranded, max.: 4 mm² Conductor connection cross-section, finely stranded, min.: 0.5 mm² Conductor connection cross-section, finest stranded, max.: 4 mm² Conductor connection cross-section, finest stranded, min.: 0.5 mm² Conductor connection cross-section with wire end ferrule: Type of wire end ferrule: 12 mm with plastic collar Standard: DIN 46228/1 Cross-section, min.: 0.5 mm² Cross-section, max.: 4 mm² Type of wire end ferrule: 12 mm with plastic collar Standard: DIN 46228/4 Cross-section, min.: 0.5 mm² Cross-section, max.: 4 mm² Type of wire end ferrule: 8 mm with plastic collar Standard: DIN 46228/1 Cross-section, min.: 0.5 mm² Cross-section, max.: 4 mm² Type of wire end ferrule: 8 mm with plastic collar Standard: DIN 46228/4 Cross-section, min.: 0.5 mm² Cross-section, max.: 4 mm² Type of wire end ferrule: Twin wire-end ferrules Cross-section, min.: 0.5 mm² Cross-section, max.: 4 mm²

General data

Insulating material	Polycarbonate
Enclosure material	glass-fibre reinforced polycarbonate
Silicone	No
Colour	black
Protection degree	IP65 in complete state
UL 94 flammability rating	5VA
Torque for lid screws	2 Nm
Lid attachment	TX20 screws
Type of mounting	Screw mounting Fixing lugs
Installation advice	Lid screws included
Function	Fuse
Can be coded	Yes Coded on PE
Voltage type	DC
Number of poles	5
Number of connections / pole	1
Wire connection method	Insulation displacement connection (IDC) PUSH IN
Cartridge fuse	6.3 x 32 mm (1/4 x 1 1/4")
Conductor outlet direction	90°
Failure indicator	Red LED
Fuse holder (cartridge holder)	Pivoting

Rated data acc. to IEC

Rated data acc. to IEC for contact element	Voltage type: DC Standard: IEC 60947-7-1, IEC 60947-7-2 Rated voltage: 800 V Rated impulse withstand voltage: 8 kV Rated current (3 loaded poles): 41 A Rated current (4 loaded poles): 25 A
Rated data acc. to IEC for fuse plug	Voltage type: DC Standard: IEC 61984, IEC 60947-7-3 Rated voltage: 36 V Rated impulse withstand voltage: 6 kV Rated current: 12 A

Rated data acc. to UL

Rated data acc. to UL for contact element	Standard: UL 1059 Note: for use with UL-listed TC-ER cables Conductor connection cross-section, AWG, max.: AWG 10 Conductor connection cross-section, AWG, min.: AWG 14 Rated voltage: 600 V Rated current: 30 A
Rated data acc. to UL for fuse plug	Rated voltage: 600 V Note: for use with UL-listed TC-ER cables Conductor connection cross-section, AWG, min.: AWG 16 Conductor connection cross-section, AWG, max.: AWG 12 Standard: UL 1059 Rated current: 20 A
Standards	not UL approved

Downloads

Approval/Certificate/Document of Conformity	[UL Certificate FieldPower® Box Fuse](https://mdcop.weidmueller.com/mediadelivery/asset/900_261847) [Manufacturer's Declaration FieldPower® BOX, BOX FUSE and Terminal variants](https://mdcop.weidmueller.com/mediadelivery/asset/900_42270)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96102)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000007924)
Product Change Notification	[Product Change Notification FieldPower® box base](https://mdcop.weidmueller.com/mediadelivery/asset/900_90698) [Produktänderungsmitteilung FieldPower® Box Unterschale](https://mdcop.weidmueller.com/mediadelivery/asset/900_90699) [Technical change to FieldPower® (GHDE)](https://mdcop.weidmueller.com/mediadelivery/asset/900_306319)
User Documentation	[Manual FieldPower® Box](https://mdcop.weidmueller.com/mediadelivery/asset/900_252971) [Datasheet FieldPower® Box Fuse](https://mdcop.weidmueller.com/mediadelivery/asset/900_252972)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000214
ETIM 7.0	EC000214
ETIM 8.0	EC000214
ETIM 9.0	EC000214
ECLASS 9.0	27-14-24-09
ECLASS 9.1	27-14-24-09
ECLASS 10.0	27-14-24-09
ECLASS 11.0	27-14-24-09
ECLASS 12.0	27-14-24-09
ECLASS 13.0	27-14-24-09
ECLASS 14.0	27-14-24-09

Approvals

Approvals	![UL](/picture/UL.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UL)	E310075
