Properties
| Version | FieldPower® power distribution box, 3-phase AC, IP65, in complete state, glass-fibre reinforced polycarbonate, PUSH IN, Insulation displacement connection (IDC), Maintenance switch |
| Order No. | 8000056232 |
| Type | FP BOX ON/OFF VG M20 3AN |
| GTIN (EAN) | 4064675385950 |
| Qty. | 1 items |

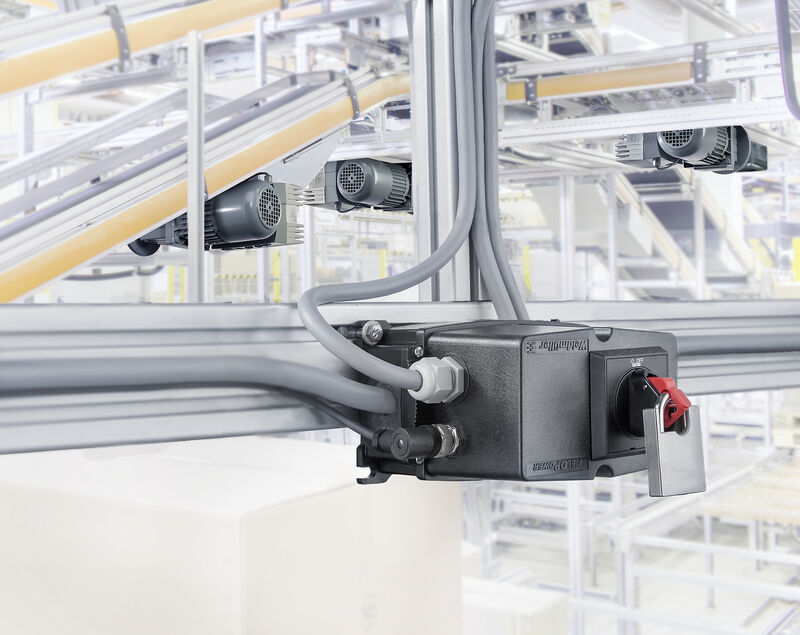

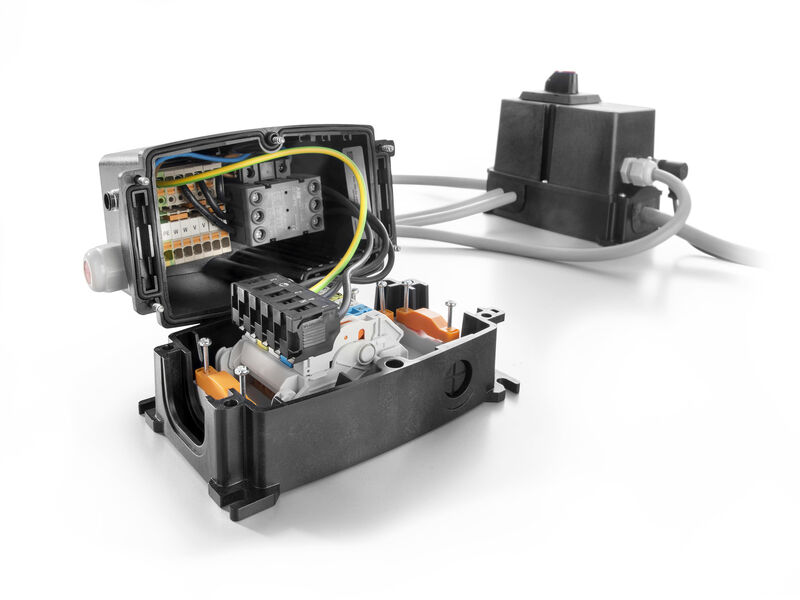

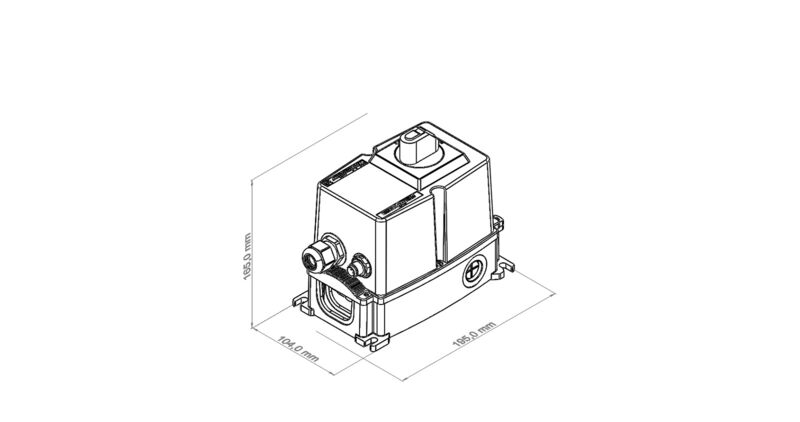

| Depth | 165 mm |
| Depth (inches) | 6.496 inch |
| Height | 181 mm |
| Height (inches) | 7.126 inch |
| Width | 104 mm |
| Width (inches) | 4.094 inch |
| Net weight | 1,191.57 g |
| Storage temperature | -20 °C...55 °C |
| Operating temperature | -20 °C...45 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 7645f3b1-6db9-495d-9e21-ab1d894aff05 |
| Cable gland clamping area, max. | 12 mm |
| Cable gland clamping area, min. | 6 mm |
| Cable gland material | Polyamide 6 |
| Number of cable glands | 1 |
| Connection data - contact element power bus |
|
| Connection data - contact element Branch / Feed-in |
|
| Insulating material | Polycarbonate |
| Enclosure material | glass-fibre reinforced polycarbonate |
| Silicone | No |
| Colour | black |
| Protection degree |
IP65
in complete state |
| UL 94 flammability rating | 5VA |
| Torque for lid screws | 2 Nm |
| Lid attachment | TX20 screws |
| lockable | Yes |
| Type of mounting |
Screw mounting
Fixing lugs |
| Installation advice | Lid screws included |
| Function | Maintenance switch |
| With cable gland | Yes |
| Can be coded |
Yes
Coded on PE |
| Voltage type | 3-phase AC |
| Number of poles | 5 |
| Number of connections / pole | 1 |
| Wire connection method |
PUSH IN
Insulation displacement connection (IDC) |
| Type of connection, signal | M12, A-coded |
| Rated data acc. to IEC for contact element |
|
| Rated data acc. to IEC for plug-in connector |
|
| Rated data acc. to UL for contact element |
|
| Rated data acc. to UL for plug-in connector |
|
| Standards | not UL approved |

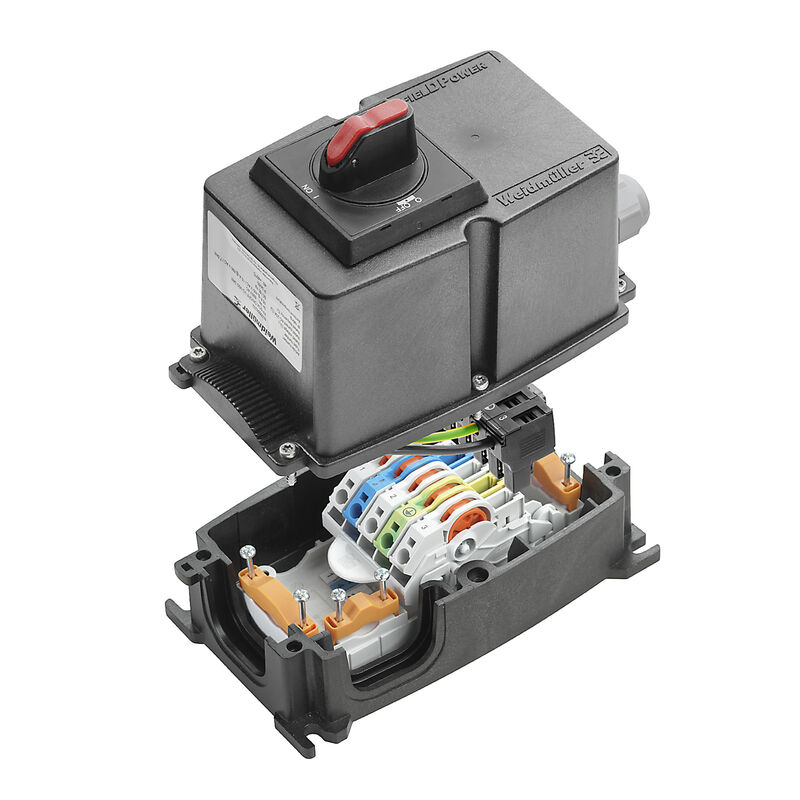

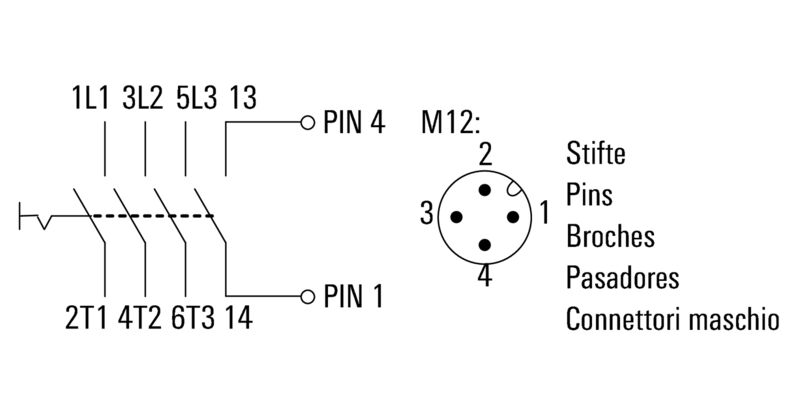

| auxiliary contact | ABB OA1G10 |
| Clamping range, plug, max. | 10 mm² |
| Clamping range, plug, min. | 0.75 mm² |
| Operating voltage | 690 V |
| Pollution severity | 3 |
| Power rating AC-23A | 7.5 kW |
| Rated current AC-23A | 16 A |
| Rated short-term current resistance ICW | 500 A rms for 1 Second |
| Switch according to standard | IEC 60947-3 |
| Switch type | ABB OT16FT3 |
| Terminals - torque | 0.8 Nm |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 18 |
| Approval/Certificate/Document of Conformity | [Manufacturer's Declaration FieldPower® ON/OFF variants](https://mdcop.weidmueller.com/mediadelivery/asset/900_207550) |
| Engineering Data |
[Application notes -- Application note FieldPower® Box ON/OFF](https://mdcop.weidmueller.com/mediadelivery/asset/900_245162)
[Application notes -- Applikationshinweis FieldPower® Box ON/OFF](https://mdcop.weidmueller.com/mediadelivery/asset/900_245163) |
| User Documentation |
[Datasheet FieldPower® ON/OFF](https://mdcop.weidmueller.com/mediadelivery/asset/900_245102)
[Manual FieldPower® PT6 IEC cURus](https://mdcop.weidmueller.com/mediadelivery/asset/900_252969) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000214 |
| ETIM 7.0 | EC000214 |
| ETIM 8.0 | EC000214 |
| ETIM 9.0 | EC000214 |
| ECLASS 9.0 | 27-14-24-09 |
| ECLASS 9.1 | 27-14-24-09 |
| ECLASS 10.0 | 27-14-24-09 |
| ECLASS 11.0 | 27-14-24-09 |
| ECLASS 12.0 | 27-14-24-09 |
| ECLASS 13.0 | 27-14-24-09 |
| ECLASS 14.0 | 27-14-24-09 |
| ROHS | Conform |
