Properties

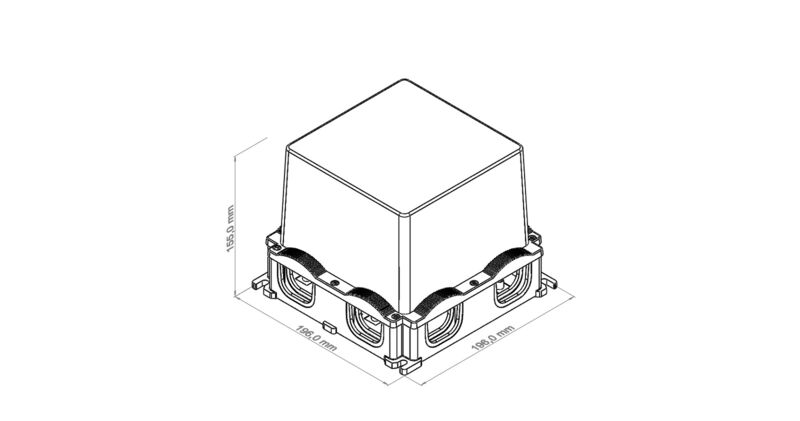

| Version | FieldPower® enclosures, 196 mm, 196 mm, 155 mm, IP65, in complete state, glass-fibre reinforced polycarbonate, black |
| Order No. | 2659750000 |
| Type | FP ENC BSBS 155 2M |
| GTIN (EAN) | 4050118704723 |
| Qty. | 1 items |
| Depth | 155 mm |
| Depth (inches) | 6.102 inch |
| Height | 196 mm |
| Height (inches) | 7.717 inch |
| Width | 196 mm |
| Width (inches) | 7.717 inch |
| Net weight | 714.16 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 5f19cd84-8946-4797-9386-3ac323b95c10 |
| Material | Polycarbonate, glass fibre reinforced |
| Enclosure material | glass-fibre reinforced polycarbonate |
| Silicone | No |
| Colour | black |
| Protection degree |
IP65
in complete state |
| UL 94 flammability rating | 5VA |
| Torque for lid screws | 2 Nm |
| Lid attachment | TX20 screws |
| Type of mounting |
Screw mounting
Fixing lugs |
| Installation advice | Lid screws included |
| Approval/Certificate/Document of Conformity |
[UL Certificate FieldPower® complete enclosures](https://mdcop.weidmueller.com/mediadelivery/asset/900_252846)
[Manufacturer's Declaration FieldPower® Enclosure parts](https://mdcop.weidmueller.com/mediadelivery/asset/900_263559) |
| Engineering Data |
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212166)
[Application notes -- Application note FieldPower® size 2 and 3 plastic enclosure temperature information](https://mdcop.weidmueller.com/mediadelivery/asset/900_245107) [Application notes -- Applikationshinweis FieldPower® Größe 2 und 3 Kunststoffgehäuse Temperaturbewertung](https://mdcop.weidmueller.com/mediadelivery/asset/900_245108) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2659750000) |
| User Documentation | [Manual FieldPower® enclosure size 2](https://mdcop.weidmueller.com/mediadelivery/asset/900_87369) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E256877 |
