Properties
| Order No. | 2815540000 |

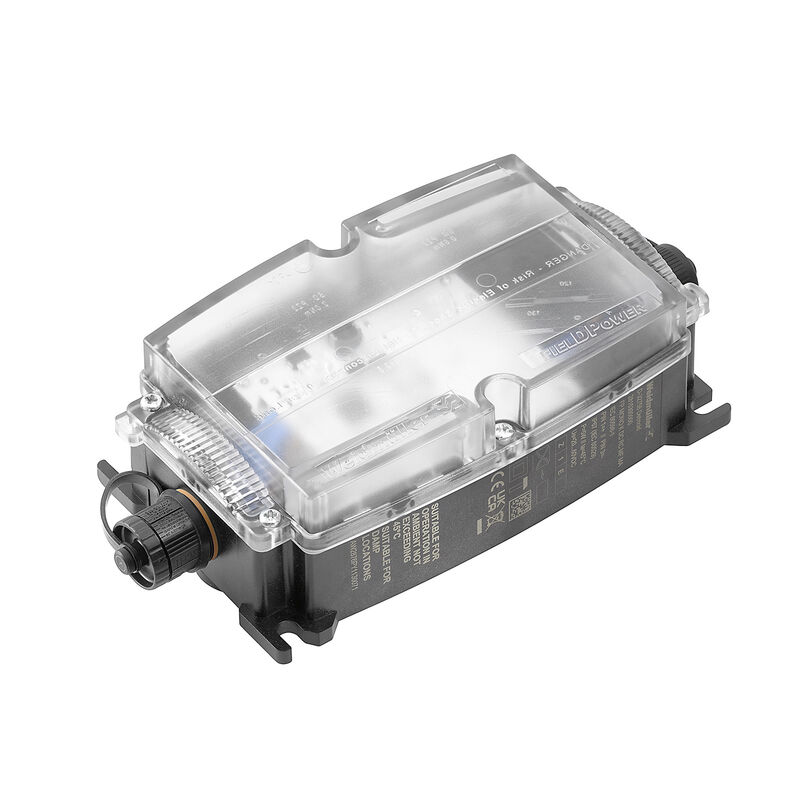

| Type | FP MONO K DC RC MF SP |
| GTIN (EAN) | 4064675303633 |
| Depth | 104 mm |
| Depth (inches) | 4.094 inch |
| Height | 61 mm |
| Height (inches) | 2.402 inch |
| Width | 238 mm |
| Width (inches) | 9.37 inch |
| Net weight | 590 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...55 °C |
| Humidity | 92 % @ 25 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | cfe9d4bf-2d88-4e4b-aa73-fe200a7615a0 |
| Amplitude of acceleration | 5 m/s² (@ 9-200 Hz) |
| Amplitude of deflection | 1.5 mm (2-9 Hz) |
| Connector cross-section, max. | 2.5 mm² |
| Connector cross-section, min. | 0.5 mm² |
| Efficiency class (according to EU Directive No. 874/2012) | E |
| Halogen | No |
| Height | ≤ 3000 m |
| Insulation voltage | <500 V (housing/PE) |
| LED operating life | > 50.000 h |
| Light colour (CCT) |
Cool White, 6000K
6000K |
| Light current | 454 lm |
| Luminosity | 3,000 cd |
| Mounting position, installation notice | Arbitrary |
| Peak acceleration, type L | 70 m/s² |
| Pollution severity | 2 |
| Protection class | II |
| Protection degree | IP67 |
| Rated voltage | 24 V |
| Shape of the LED module | Other |
| Shock resistance EN 60721-3-3 | Class 3M3 portable |
| Short-circuit protection |
Yes
internal |
| Silicone | No |
| Surge voltage category | II |
| Type of connection | Plug-in round connector with fixed number of poles |
| Type of mounting | Screw mounting |
| UL 94 flammability rating | V-0 |
| Vibration resistance EN 60721-3-3 | Class 3M3 sinusoidal, stationary |
| DC input voltage range | 20...60 V DC |
| Input voltage | 20…60 V DC |
| Power rating | 5 W |
| Rated current | 20 mA |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000996 |
| ETIM 7.0 | EC000996 |
| ETIM 8.0 | EC000996 |
| ETIM 9.0 | EC000996 |
| ECLASS 9.1 | 27-11-03-45 |
| ECLASS 10.0 | 27-11-03-45 |
| ECLASS 11.0 | 27-11-03-45 |
| ECLASS 12.0 | 27-11-03-45 |
| ECLASS 13.0 | 27-11-03-45 |
| ECLASS 14.0 | 27-11-03-45 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E345151 |
