H1,5/26D ZH SW

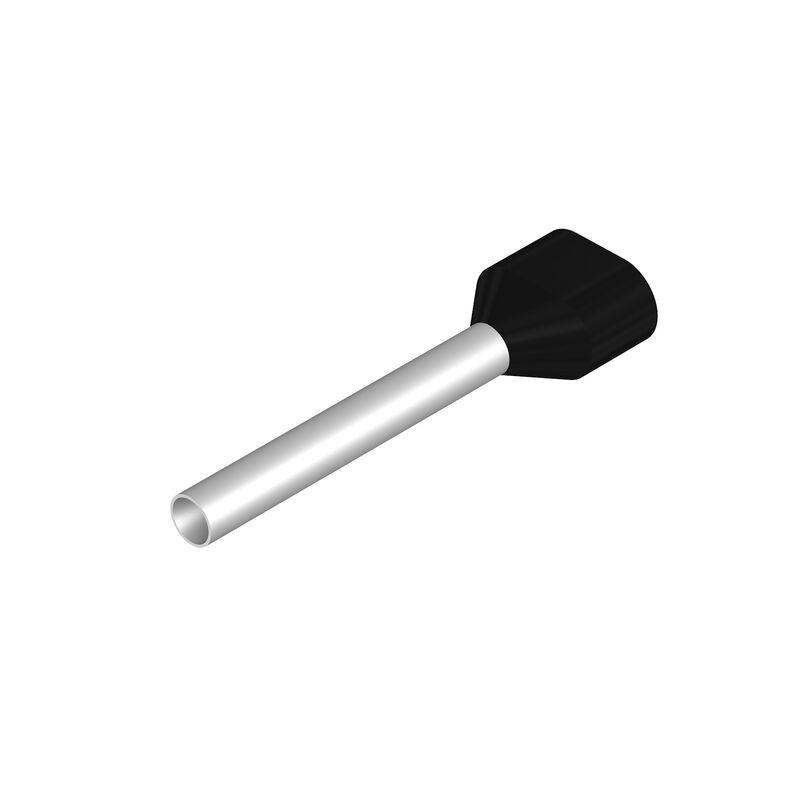

Wire-end ferrule, Twin wire-end ferrule, 21 mm, 18 mm, black

Item No. 9037490000
Download data sheet Engineering Support Product Downloads
Is accessory of 10 Related products 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Tulejki kablowe Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/bd70fd7c-25a7-46d9-a404-2588bf18d09f/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/b770a92f-60fd-42c9-876f-9d6366f8928c/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cULus)
E499744

General ordering data

Version
Wire-end ferrule, Twin wire-end ferrule, 21 mm, 18 mm, black
Nr zam.
9037490000
Type
H1,5/26D ZH SW
GTIN (EAN)
4008190493066
Qty.
100 items
Packaging
loose

Dimensions and weights

Net weight
0.264 g

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Descrizione articolo
Twin wire end ferrule, black
Változat
Twin wire-end ferrule

Tulejki kablowe

Conductor cross-section
1.5 mm²
Contact surface diameter (D1)
2.2 mm
Contact surface length (L2)
18 mm
Couleur
DIN
Espesor del manguito de metal (S1)
0.15 mm
L1 in mm
26 mm
Leiteranschlussquerschnitt AWG, max.
AWG 16
Plastic collar thickness (S2)
0.3 mm
Stripping length
21 mm
Výška objímky (A)
6.5 mm
Šířka objímky (B)
3.6 mm

Classifications

ETIM 8.0
EC000005
ETIM 9.0
EC000005
ETIM 10.0
EC000005
ECLASS 14.0
27-40-02-01
ECLASS 15.0
27-40-02-01
