Properties

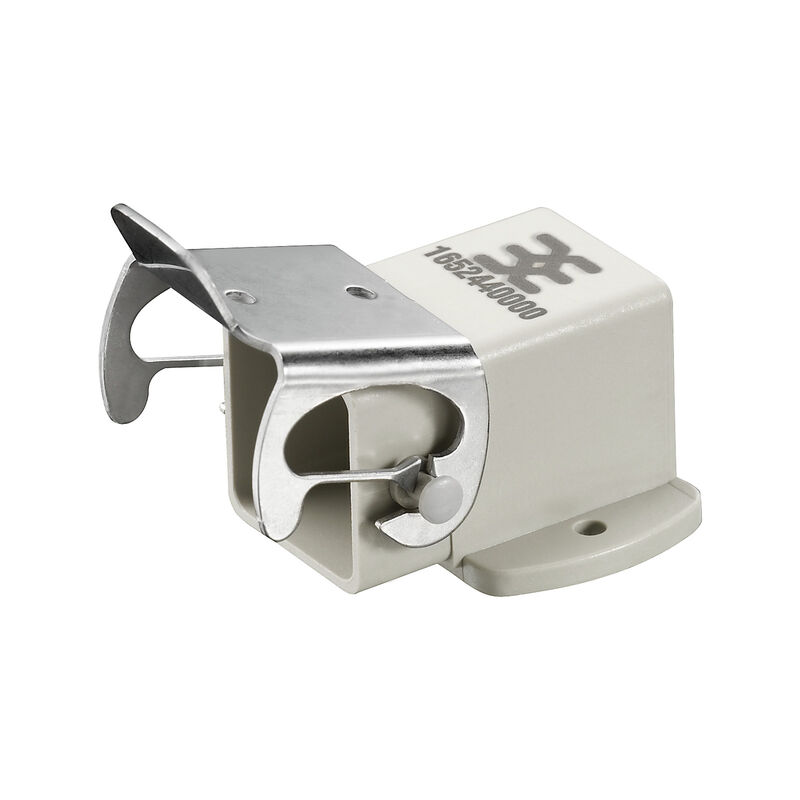

| Version | HDC enclosures, Size: 1, Protection degree: IP65 (in plugged condition), Base housing, Side-locking clamp on lower side, Standard, Size of cable entries: PG 11 |
| Order No. | 1652440000 |
| Type | HDC 07A SLU 1PG11S |
| GTIN (EAN) | 4008190402518 |
| Qty. | 1 items |
| Depth | 26 mm |
| Depth (inches) | 1.024 inch |
| Height | 53 mm |
| Height (inches) | 2.087 inch |
| Width | 37 mm |
| Width (inches) | 1.457 inch |
| Mounting dimension - width | 30 mm |
| Net weight | 23 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 2f94735a-9fba-4903-842f-4fb9aa902310 |
| Chemical resistance |
|
| Cable entry | w. Supports |

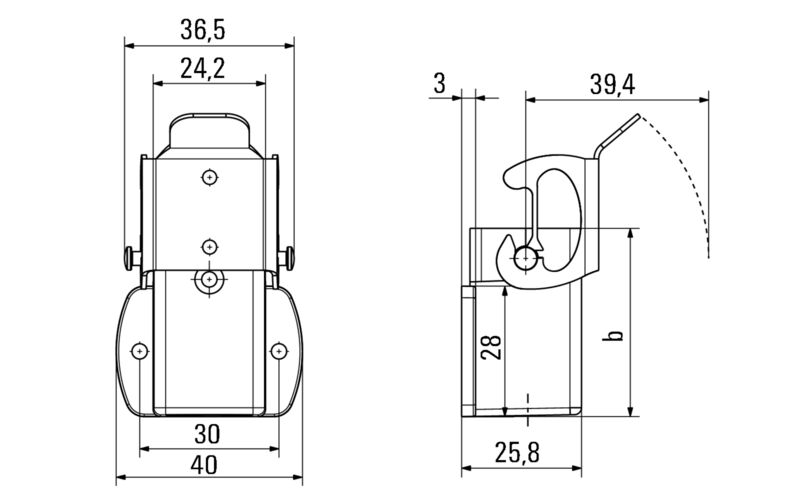

| Height of base B1 | 3 mm |
| Height of housing B | 42 mm |
| Hole pitch length A2 | 30 mm |
| Total length housing | 27 mm |
| Width base C1 | 42 mm |
| Width housing C | 24 mm |
| EMC housings | No |
| Housing main material | Plastic |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree | IP65 (in plugged condition) |
| Tightening torque | 0.5 Nm |
| UL 94 flammability rating | V-0 |
| BG | 1 |
| Cable entry | w. Supports |
| Clamp version | Side-locking clamp |
| Colour (RAL) | RAL 1001 |
| Design | Standard |
| Design of housing | Base housing |
| Design of locking system | Side-locking clamp on lower side |
| Internal thread | PG 11 |
| Number of cable entry on top | 0 |
| Number of cable entry sideways | 1 |
| Size | 1 |
| Size of cable entries | PG 11 |
| Suitable for ModuPlug® | No |
| Tightening torque | 0.5 Nm |
| Top part/bottom part/lid | lower part |
| Type | Base housing |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79514) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1652440000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1652440000) |
| Product Change Notification |
[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005)
[20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006) |
| Technical Documentation | [1652440000_HDC_07A_SLU_1PG11G_STP_Blatt__1.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_39242) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
