HDC 07A TOLU 1PG11G

HDC 07A TOLU 1PG11G

Download data sheet

HDC 07A TOLU 1PG11G

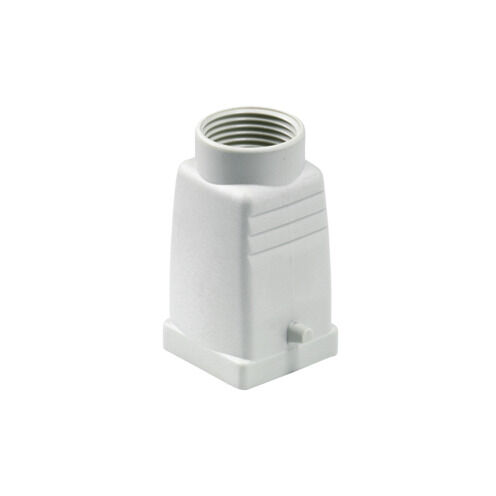

HDC enclosures, Size: 1, Protection degree: IP65 (in plugged condition), Cable entry from top, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: PG 11

Item No. 1652380000

Properties

General ordering data

Version	HDC enclosures, Size: 1, Protection degree: IP65 (in plugged condition), Cable entry from top, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: PG 11
Order No.	1652380000
Type	HDC 07A TOLU 1PG11G
GTIN (EAN)	4008190402457
Qty.	1 items

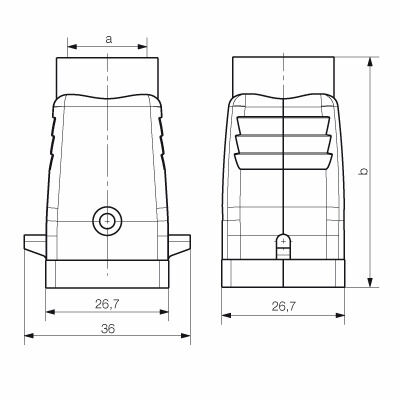

Dimensions and weights

Depth	26.8 mm
Depth (inches)	1.055 inch
Height	50 mm
Height (inches)	1.968 inch
Width	36.5 mm
Width (inches)	1.437 inch
Net weight	13 g

Limit temperature

-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	Potassium perfluorobutane sulfonate 29420-49-3
SCIP	2f94735a-9fba-4903-842f-4fb9aa902310
Chemical resistance	Substance: Acetone Chemical resistance: Conditionally resistant Substance: Drilling oil Chemical resistance: Resistant Substance: Diesel Chemical resistance: Resistant Substance: Ethyl alcohol Chemical resistance: Resistant Substance: Transmission oil Chemical resistance: Resistant Substance: Hydraulic oil Chemical resistance: Resistant Substance: Coolant Chemical resistance: Resistant Substance: Petroleum benzine Chemical resistance: Resistant Substance: Sweat Chemical resistance: Resistant Substance: Premium gasoline Chemical resistance: Conditionally resistant Substance: Water Chemical resistance: Resistant Substance: UV Chemical resistance: Unstable Substance: Ozone Chemical resistance: Unstable

Cable entry	w. thread
Height of housing B	50 mm
Total length housing	26.8 mm
Width housing C	26.8 mm

EMC housings	No
Housing main material	Plastic
Protection degree	IP65 (in plugged condition)
Tightening torque	0.5 Nm
UL 94 flammability rating	V-0

BG	1
Cable entry	w. thread
Clamp version	Side-locking clamp
Colour (RAL)	RAL 1001
Design	Standard
Design of housing	Cable entry from top Plug housing
Design of locking system	Side-locking clamp on lower side
Internal thread	PG 11
Number of cable entry on top	1
Number of cable entry sideways	0
Size	1
Size of cable entries	PG 11
Suitable for ModuPlug^®	No
Tightening torque	0.5 Nm
Top part/bottom part/lid	upper part
Type	Plug

Approval/Certificate/Document of Conformity	[Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79510)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1652380000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1652380000)
Product Change Notification	[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005) [20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006)
Technical Documentation	[1652380000_HDC_07A_TOLU_1PG11G_STP_Blatt__1.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_39248)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC000437
ETIM 7.0	EC000437
ETIM 8.0	EC000437
ETIM 9.0	EC000437
ECLASS 9.0	27-44-02-02
ECLASS 9.1	27-44-02-02
ECLASS 10.0	27-44-02-02
ECLASS 11.0	27-44-02-02
ECLASS 12.0	27-44-02-02
ECLASS 13.0	27-44-02-02
ECLASS 14.0	27-44-02-02

Approvals	![CE](/picture/CE.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E92202
