Properties

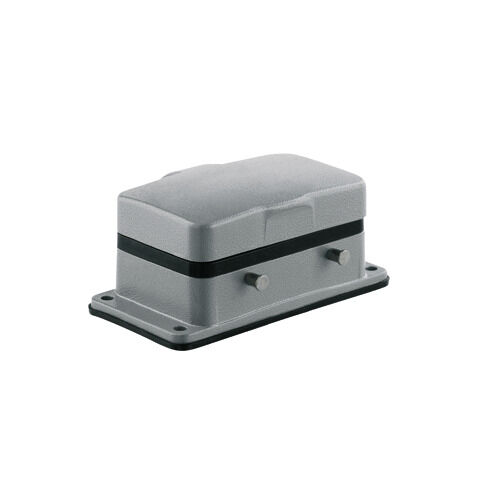

| Version | HDC enclosures, Size: 6, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on upper side, Standard, with cover |
| Order No. | 1209200000 |
| Type | HDC 16B ADBO |
| GTIN (EAN) | 4008190871130 |
| Qty. | 1 items |
| Depth | 115 mm |
| Depth (inches) | 4.528 inch |
| Height | 47 mm |
| Height (inches) | 1.85 inch |
| Width | 77 mm |
| Width (inches) | 3.031 inch |
| Mounting dimension - height | 32 mm |
| Mounting dimension - width | 103 mm |
| Net weight | 178 g |
| Limit temperature | -40 °C ... 125 °C |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | e98b2b24-ba23-41bf-8d19-0dda3647412f |
| Chemical resistance |
|

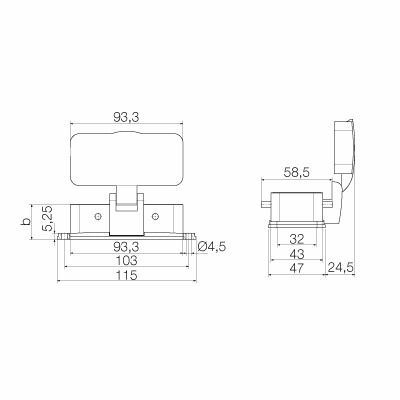

| Height of base B1 | 5 mm |
| Height of housing B | 29 mm |
| Hole pitch length A2 | 103 mm |
| Total length housing | 93 mm |
| Width base C1 | 47 mm |
| Width housing C | 43 mm |
| EMC housings | No |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection class note | Protection class for this version of cover: IP20 |
| Protection degree | IP65 (in plugged condition) |
| Surface finish | Powder coating |
| BG | 6 |
| Clamp version | Side-locking clamp |
| Colour (RAL) | RAL 7035 |
| Cover | with cover |
| Design | Standard |
| Design of cover | with cover |
| Design of housing | Bulkhead housing |
| Design of locking system | Side-locking clamp on upper side |
| Sealing | NBR |
| Size | 6 |
| Suitable for ModuPlug® | Yes |
| Top part/bottom part/lid | lower part |
| Type | Bulkhead (feed-through) |
| Product information | When mounting the housings, make sure that the flat gasket is correctly seated. |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72757) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1209200000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1209200000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1209200000&norm=0) |
| Product Change Notification |
[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005)
[20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006) |
| Technical Documentation | [1209200000_HDC_16B_ADBO_STP_Blatt__1.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_39357) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
