Properties
| Version | HDC enclosures, Size: 3, Protection degree: IP65 (in plugged condition), Cable entry from side, Plug housing, End-locking clamp, lower side, high, Size of cable entries: M 32 |
| Order No. | 3107180000 |

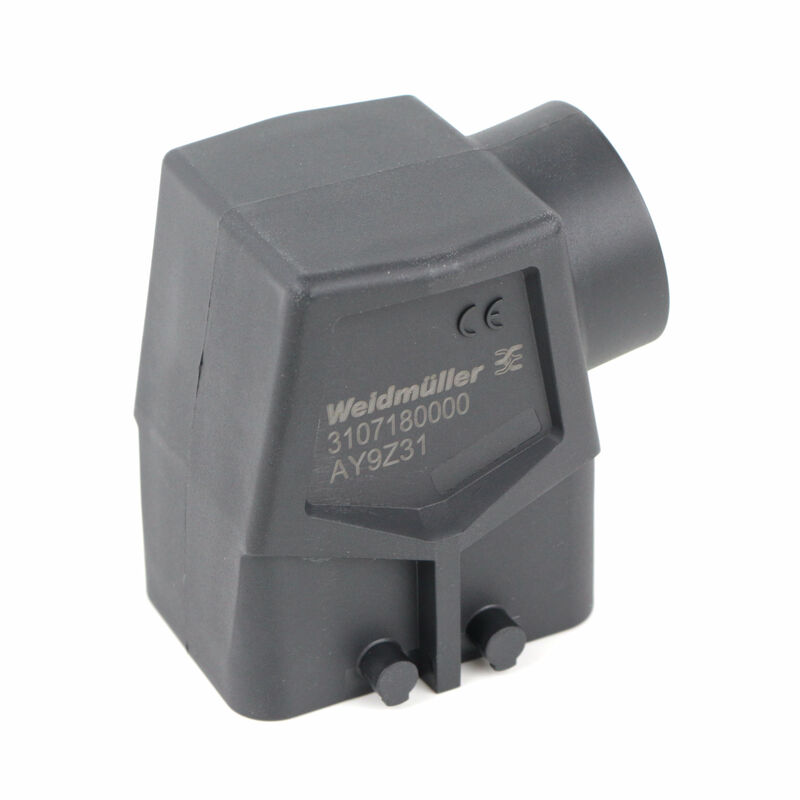

| Type | HDC 16D TSBU 1M32 BP |
| GTIN (EAN) | 4099987172080 |
| Qty. | 1 items |

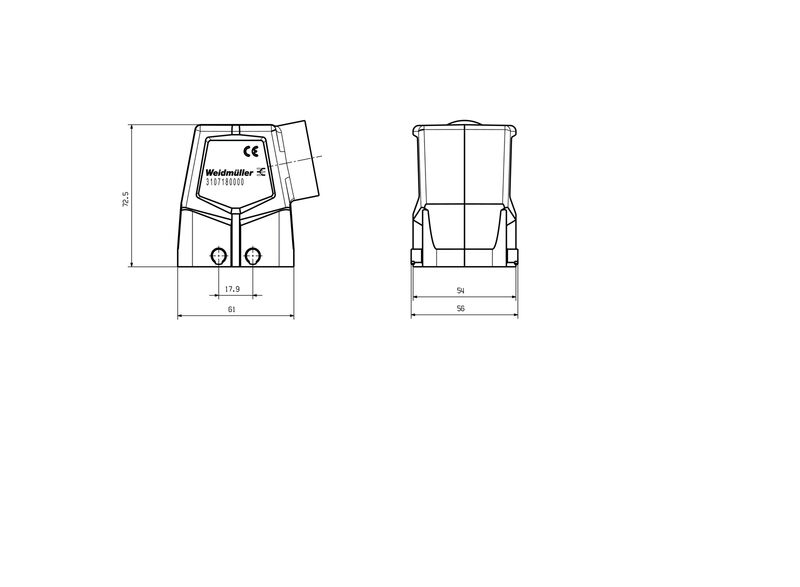

| Depth | 56 mm |
| Depth (inches) | 2.205 inch |
| Height | 72.5 mm |
| Height (inches) | 2.854 inch |
| Width | 61 mm |
| Width (inches) | 2.402 inch |
| Length | 61 mm |
| Length (inches) | 2.402 inch |
| Net weight | 115 g |
| Limit temperature | -40 °C ... 125 °C |
| Cable entry | w. thread |
| EMC housings | No |
| Housing main material | Polyamide |
| Material of locking element | Polyamide |
| Protection degree | IP65 (in plugged condition) |
| Tightening torque | 1.2 Nm |
| UL 94 flammability rating | V-0 |
| BG | 3 |
| Cable entry | w. thread |
| Clamp version | End-locking clamp |
| Colour (RAL) | RAL 9005 |
| Design | high |
| Design of housing |
Cable entry from side
Plug housing |
| Design of locking system | End-locking clamp, lower side |
| Internal thread | M 32 |
| Number of cable entry on top | 0 |
| Number of cable entry sideways | 1 |
| Size | 3 |
| Size of cable entries | M 32 |
| Suitable for ModuPlug® | Yes |
| Tightening torque | 1.2 Nm |
| Top part/bottom part/lid | upper part |
| Type | Plug |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| ROHS | Conform |
