Properties

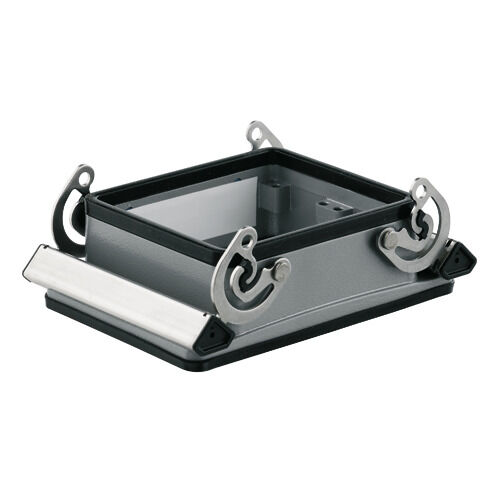

| Version | HDC enclosures, Size: 10, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on lower side, Standard |
| Order No. | 1217800000 |
| Type | HDC 32B ABU |
| GTIN (EAN) | 4008190148393 |
| Qty. | 1 items |
| Height | 38 mm |
| Height (inches) | 1.496 inch |
| Width | 97 mm |
| Width (inches) | 3.819 inch |
| Mounting dimension - height | 65 mm |
| Mounting dimension - width | 110 mm |
| Net weight | 276 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | e98b2b24-ba23-41bf-8d19-0dda3647412f |
| Chemical resistance |
|

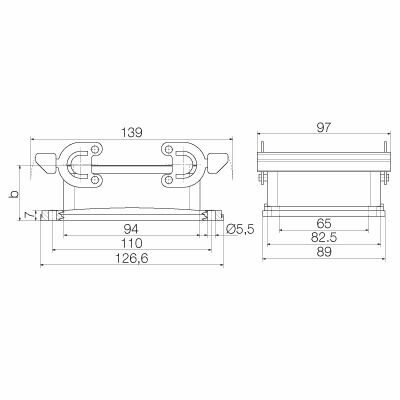

| Height of base B1 | 7 mm |
| Height of housing B | 38 mm |
| Hole pitch length A2 | 110 mm |
| Total length housing | 94 mm |
| Width base C1 | 89 mm |
| Width housing C | 82.5 mm |
| EMC housings | No |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree | IP65 (in plugged condition) |
| Surface finish | Powder coating |
| Tightening torque | 2 Nm |
| BG | 10 |
| Clamp version | Side-locking clamp |
| Colour (RAL) | RAL 7035 |
| Design | Standard |
| Design of housing | Bulkhead housing |
| Design of locking system | Side-locking clamp on lower side |
| Sealing | NBR |
| Size | 10 |
| Suitable for ModuPlug® | Yes |
| Tightening torque | 2 Nm |
| Top part/bottom part/lid | lower part |
| Type | Bulkhead (feed-through) |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79443) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1217800000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1217800000) |
| Product Change Notification |
[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005)
[20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006) |
| Technical Documentation | [1217800000_HDC_32B_ABU_STP_Blatt__1.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_39347) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[CAT 3 HDC 17/18 EN](http://download.weidmueller.com/asset/download/file/39468)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
