Properties

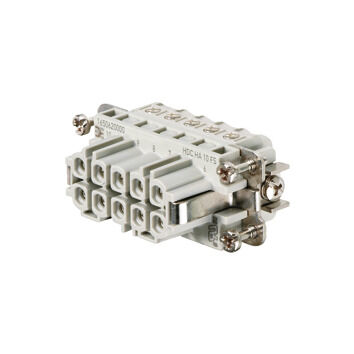

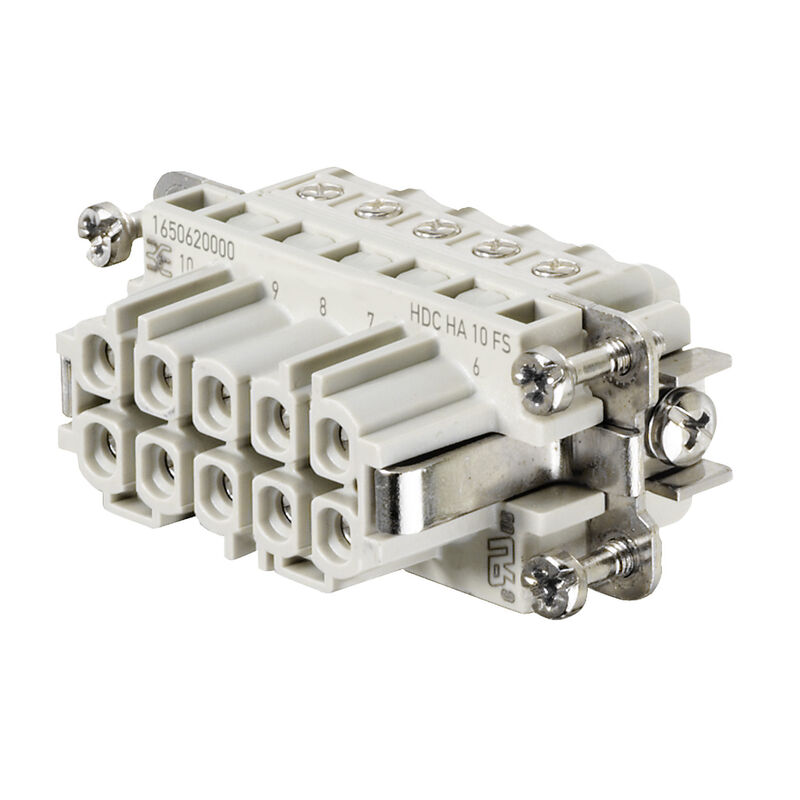

| Version | HDC insert, Female, 250 V, 16 A, Number of poles: 10, Screw connection, Size: 2 |
| Order No. | 1650620000 |
| Type | HDC HA 10 FS |
| GTIN (EAN) | 4008190299293 |
| Qty. | 1 items |
| Depth | 56.6 mm |
| Depth (inches) | 2.228 inch |
| Height | 31.1 mm |
| Height (inches) | 1.224 inch |
| Width | 23 mm |
| Width (inches) | 0.906 inch |
| Net weight | 44 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | b67daa31-7dca-434d-8290-da7fb52f83a2 |
| Chemical resistance |
|
| Height of socket | 31.1 mm |
| Total length base | 56.6 mm |
| Width | 23 mm |
| BG | 2 |
| Colour | beige |
| Conductor cross-section | 2.5 mm² |
| Insulating material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Insulating material group | IIIa |
| Insulation strength | 1010 Ω |
| Low smoke acc. DIN EN 45545-2 | Yes |
| Material | Copper alloy |
| Max. torque for main contact | 0.55 Nm |
| Min. torque for main contact | 0.5 Nm |
| Number of poles | 10 |
| Plugging cycles, silver | ≥ 500 |
| Pollution severity | 3 |
| Rated current (cUR) |
|
| Rated current (DIN EN 61984) | 16 A |
| Rated current (UR) |
|
| Rated impulse voltage (DIN EN 61984) | 4 kV |
| Rated voltage (DIN EN 61984) | 250 V |
| Rated voltage according to UL/CSA | 600 V AC/DC |
| Series | HA |
| Size | 2 |
| Surface finish | Silver passivated |
| Type | Female |
| Type of connection | Screw connection |
| UL 94 flammability rating | V-0 |
| Volume resistance | ≤2 mΩ |
| Blade size, slotted (PE connection) | SD 0.8 x 4.0 |
| Connection type PE | Screw connection |
| Fixing screw | M 4 |
| Rated cross-section | 2.5 mm² |
| Stripping length PE connection | 10 mm |
| Tightening torque, max. PE connection | 1.5 Nm |
| Tightening torque, min. PE connection | 1.2 Nm |
| Wire cross section, AWG (PE), max. | AWG 14 |
| Wire cross section, AWG (PE), min. | AWG 20 |
| BG | 2 |
| Blade size | size PH0 |
| Blade size, slotted (screw connection) | SD 0.6 x 3.5 |
| Clamping screw | M 3 |
| Conductor cross-section, max. | 2.5 mm² |
| Conductor cross-section, min. | 0.5 mm² |
| Material | Copper alloy |
| Max. torque for main contact | 0.55 Nm |
| Min. torque for main contact | 0.5 Nm |
| Size | 2 |
| Stripping length, rated connection | 9 mm |
| Surface finish | Silver passivated |
| Type of connection | Screw connection |
| Volume resistance | ≤2 mΩ |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire cross-section, solid, max. | 2.5 mm² |
| Wire cross-section, solid, min. | 0.5 mm² |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_73369) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1650620000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1650620000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1650620000&norm=0) |
| Technical Documentation | [1650620000_HDC_HA_10_FS_STP_Blatt__1.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_39261) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000438 |
| ETIM 7.0 | EC000438 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-05 |
| ECLASS 9.1 | 27-44-02-05 |
| ECLASS 10.0 | 27-44-02-05 |
| ECLASS 11.0 | 27-44-02-05 |
| ECLASS 12.0 | 27-44-02-05 |
| ECLASS 13.0 | 27-44-02-05 |
| ECLASS 14.0 | 27-44-02-05 |
| Approvals |   |
| ROHS | Conform |
