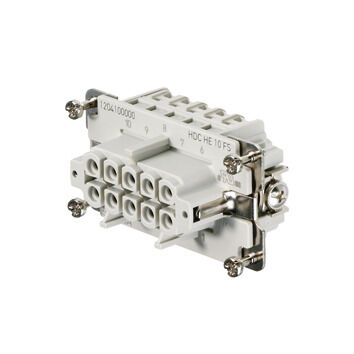

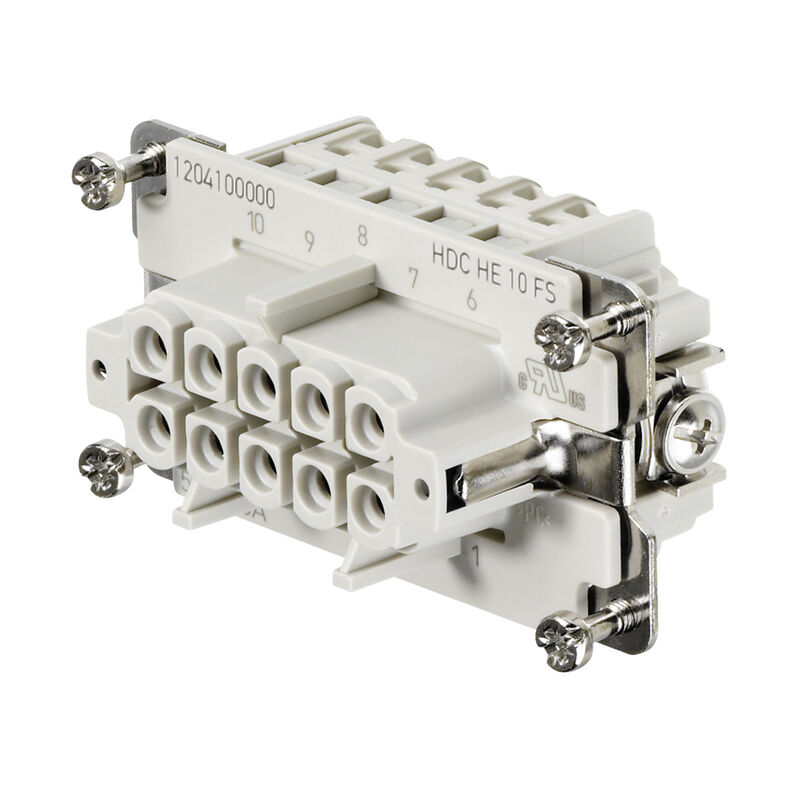

HDC insert, Female, 500 V, 16 A, Number of poles: 10, Screw connection, Installation size: 4

Item No. 1204100000
Download data sheet Engineering Support Product Downloads
Accessories 2 Individual part of 4 Related products 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Power contact Signal contact Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
HDC insert, Female, 500 V, 16 A, Number of poles: 10, Screw connection, Installation size: 4
Order No.
1204100000
Type
HDC HE 10 FS
GTIN (EAN)
4008190170172
Qty.
1 items

Dimensions and weights

Depth
64 mm
Depth (inches)
2,52 inch
Height
35,2 mm
Height (inches)
1,386 inch
宽度
34 mm
Width (inches)
1,339 inch
Net weight
61,6 g

Temperatures

温度限值
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Height of socket
35,2 mm
Total length base
64 mm
Width
34 mm

General data

Anslutningstyp
Screw connection
Antal effektkontakter
10
Antal poler
10
Antal signalkontakter
0
BG
4
Brännbarhetsklass enligt UL 94
V-0
Färgkod
beige
Genomgångsmotstånd (6)
≤2 mΩ
Grundläggande material
Copper alloy
Installationsstorlek
4
Isolationsmotstånd
1010 Ω
Isoleringsmaterial
PC glass-fibre reinforced (UL-listed and railway-certified)
Isoleringsmaterialgrupp
IIIa
Ledardiameter
2,5 mm²
Låg rökutveckling enligt DIN EN 45545-2
Yes
Märkspänning (DIN EN 61984)
500 V
Märkstötspänning (DIN EN 61984)
6 kV
Märkström (DIN EN 61984)
16 A
Märkspänning enligt UL/CSA
600 V AC/DC
Märkström (cUR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    19,7 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    11,3 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    10,3 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    8 A
Märkström (UR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    20 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    10 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    7 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    5 A
Nedsmutsningsgrad
3
Serie
HE
Stickcykler Ag
≥ 500
Stickcykler Au
≥ 500
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Typ
Female
Yta
Silver passivated
Åtdragningsmoment max., huvudkontakt
0,7 Nm
Åtdragningsmoment min., huvudkontakt
0,6 Nm

Connection data PE

Blade size, slotted (PE connection)
SD 0.8 x 4.0
Connection type PE
Screw connection
Fixing screw
M 4
Rated cross-section
4 mm²
Stripping length PE connection
10 mm
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Wire cross section, AWG (PE), max.
AWG 12
Wire cross section, AWG (PE), min.
AWG 20

Power contact

Tightening torque, max.
0,7 Nm
Tightening torque, min.
0,6 Nm

Signal contact

Tightening torque, max.
0,7 Nm
Tightening torque, min.
0,6 Nm

Version

Anslutningstyp
Screw connection
Avisoleringslängd nominellt
9 mm
Basic material
Copper alloy
BG
4
Blade size
size PH1
Clamping screw
M 3
Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,5 mm²
Installation size
4
Klingmått slits (skruvanslutning)
SD 0.6 x 3.5
Ledardiameter, AWG, max
AWG 14
Max. torque for main contact
0,7 Nm
Min. torque for main contact
0,6 Nm
Surface finish
Silver passivated
Volume resistance
≤2 mΩ
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded, max.
2,5 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire cross-section, solid, min.
0,5 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
