Properties

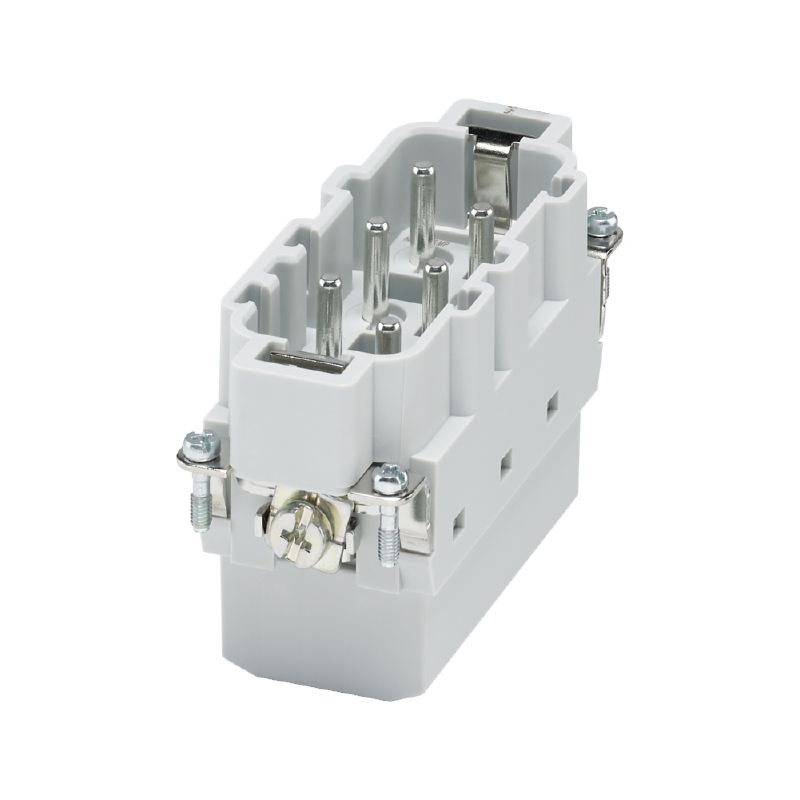

| Version | , Male, 400 V, 35 A, Number of poles: 6, PUSH IN, Size: 6 |
| Order No. | 3023960000 |
| Type | HDC HSB 6 MP |
| GTIN (EAN) | 4099986946545 |
| Qty. | 1 items |

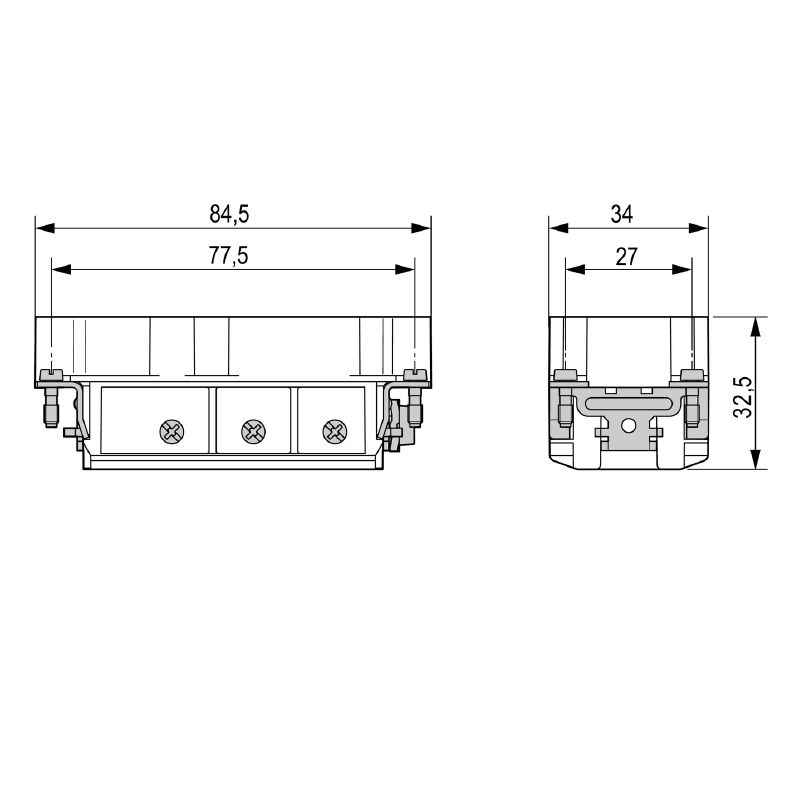

| Depth | 84.5 mm |
| Depth (inches) | 3.327 inch |
| Height | 35.6 mm |
| Height (inches) | 1.402 inch |
| Width | 34 mm |
| Width (inches) | 1.339 inch |
| Net weight | 50 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Height of socket | 35.6 mm |
| Total length base | 84.5 mm |
| Width | 34 mm |
| BG | 6 |
| Colour | beige |
| Conductor cross-section | 6 mm² |
| Insulating material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Insulating material group | IIIa |
| Insulation strength | 1010 Ω |
| Low smoke acc. DIN EN 45545-2 | Yes |
| Material | Copper alloy |
| Max. torque for main contact | 1.5 Nm |
| Min. torque for main contact | 1.2 Nm |
| Number of poles | 6 |
| Plugging cycles, silver | ≥ 500 |
| Pollution severity | 3 |
| Rated current (cUR) |
|
| Rated current (DIN EN 61984) | 35 A |
| Rated current (UR) |
|
| Rated impulse voltage (DIN EN 61984) | 6 kV |
| Rated voltage (DIN EN 61984) | 400 V |
| Rated voltage according to UL/CSA | 600 V AC/DC |
| Series | HSB |
| Size | 6 |
| Surface finish | Silver passivated |
| Type | Male |

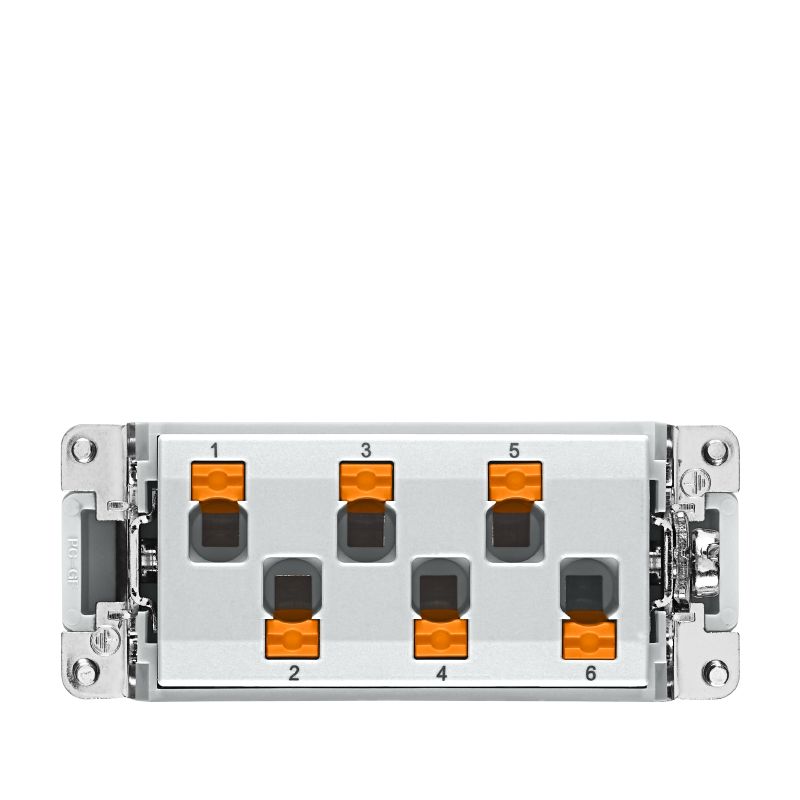

| Type of connection | PUSH IN |
| UL 94 flammability rating | V-0 |
| Volume resistance | ≤2 mΩ |
| Blade size, slotted (PE connection) | 1 x 5.5 |
| Connection type PE | Screw connection |
| Fixing screw | M 5 |
| Rated cross-section | 6 mm² |
| Stripping length PE connection | 10 mm |
| Tightening torque, max. PE connection | 2.5 Nm |
| Tightening torque, min. PE connection | 2 Nm |
| Wire cross section, AWG (PE), max. | AWG 10 |
| Wire cross section, AWG (PE), min. | AWG 20 |
| BG | 6 |
| Blade size | size PZ1 |
| Blade size, slotted (screw connection) | SD 0.8 x 4.0 |
| Clamping screw | M 4 |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 0.5 mm² |
| Material | Copper alloy |
| Max. torque for main contact | 1.5 Nm |
| Min. torque for main contact | 1.2 Nm |
| Size | 6 |
| Stripping length, rated connection | 11 mm |
| Surface finish | Silver passivated |
| Type of connection | PUSH IN |
| Volume resistance | ≤2 mΩ |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire cross-section, solid, max. | 6 mm² |
| Wire cross-section, solid, min. | 0.5 mm² |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000438 |
| ETIM 7.0 | EC000438 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-05 |
| ECLASS 9.1 | 27-44-02-05 |
| ECLASS 10.0 | 27-44-02-05 |
| ECLASS 11.0 | 27-44-02-05 |
| ECLASS 12.0 | 27-44-02-05 |
| ECLASS 13.0 | 27-44-02-05 |
| ECLASS 14.0 | 27-44-02-05 |
| ROHS | Conform |
