Properties
| Version | HDC enclosures, Size: 6, Protection degree: IP69K, IP66 (in plugged condition), IP68 (in plugged condition), , Clamping yoke connection, Standard |
| Order No. | 1110910000 |

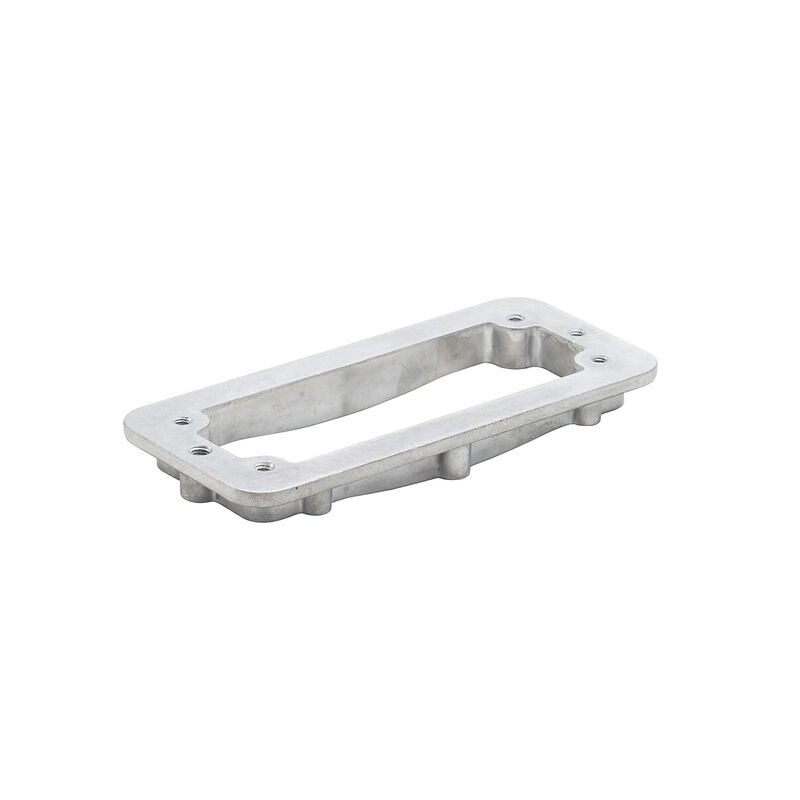

| Type | HDC IP68 16B FRAME M6 |
| GTIN (EAN) | 4032248886975 |
| Qty. | 1 items |

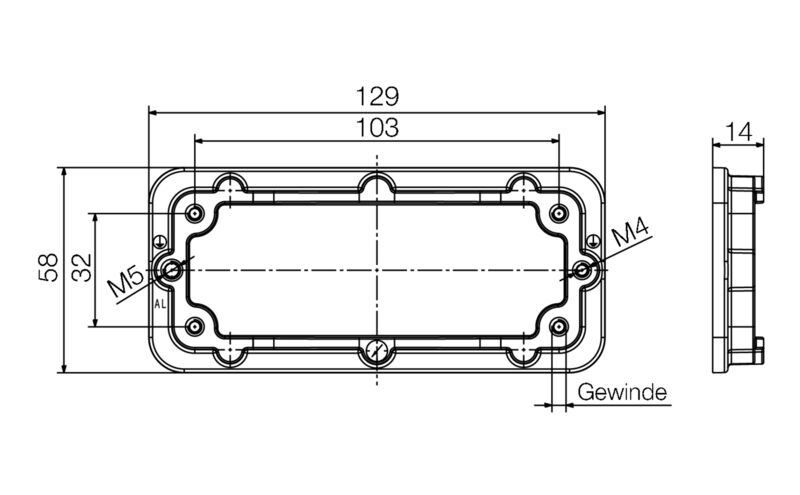

| Depth | 129 mm |
| Depth (inches) | 5.079 inch |
| Height | 14 mm |
| Height (inches) | 0.551 inch |
| Width | 58 mm |
| Width (inches) | 2.283 inch |
| Mounting dimension - height | 32 mm |
| Mounting dimension - width | 103 mm |
| Net weight | 66 g |
| Limit temperature | -50 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Chemical resistance |
|
| Height of housing B | 14 mm |
| Hole pitch length A2 | 103 mm |
| Total length housing | 129 mm |
| EMC housings | Yes |
| Housing main material | diecast aluminium |
| Protection degree |
IP69K
IP66 (in plugged condition) IP68 (in plugged condition) |
| BG | 6 |
| Colour (RAL) |
RAL 7001
RAL 9005 |
| Design | Standard |
| Design of locking system | Clamping yoke connection |
| Size | 6 |
| Suitable for ModuPlug® | Yes |
| Top part/bottom part/lid | lower part |
| Type | Bulkhead (feed-through) |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79396) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1110910000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1110910000) |
| Product Change Notification |
[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005)
[20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| Approvals |  |
| ROHS | Conform |
