Properties

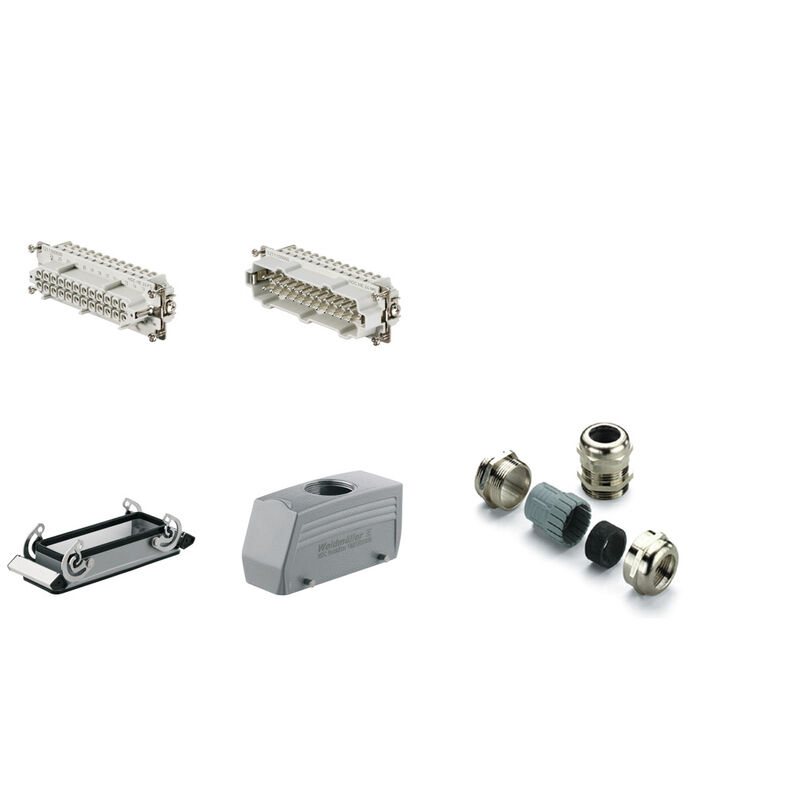

| Version | RockStar® HDC kits-Heavy-duty connectors, Kit, HE, Size: 8, Poles: 24, Screw connection, 500 V, 16 A, diecast aluminium, M 32 |
| Order No. | 1802480000 |
| Type | HDC-KIT-HE 24.131 M |
| GTIN (EAN) | 4032248256952 |
| Qty. | 1 items |
| Net weight | 781.68 g |
| Limit temperature | -40 °C ... 100 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI, 6c |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | bfb1c983-6f18-4ba4-8907-38aad6aee076 |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree | IP65 (in plugged condition) |
| Series | HE |
| Surface finish | Powder coating |
| BG | 8 |
| Colour (RAL) | RAL 7035 |
| Number of cable entry on top | 1 |
| Size | 8 |
| Size of cable entries | M 32 |
| Type of connection | Screw connection |
| BG | 8 |
| Cable glands | M 32 |
| Connection type PE | Screw connection |
| Material | diecast aluminium |
| Number of poles | 24 |
| Rated current (DIN EN 61984) | 16 A |
| Rated voltage (DIN EN 61984) | 500 V |
| Series | HE |
| Size | 8 |
| BG | 8 |
| Conductor cross-section, max. | 2.5 mm² |
| Conductor cross-section, min. | 0.5 mm² |
| Material | diecast aluminium |
| Max. torque for main contact | 0.55 Nm |
| Min. torque for main contact | 0.5 Nm |
| Size | 8 |
| Surface finish | Powder coating |
| Type of connection | Screw connection |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97849) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1802480000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1802480000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-01-90 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
