HDC MHP 300 FC
HDC MHP 300 FC
HDC MHP 300 FC

HDC MHP 300 FC

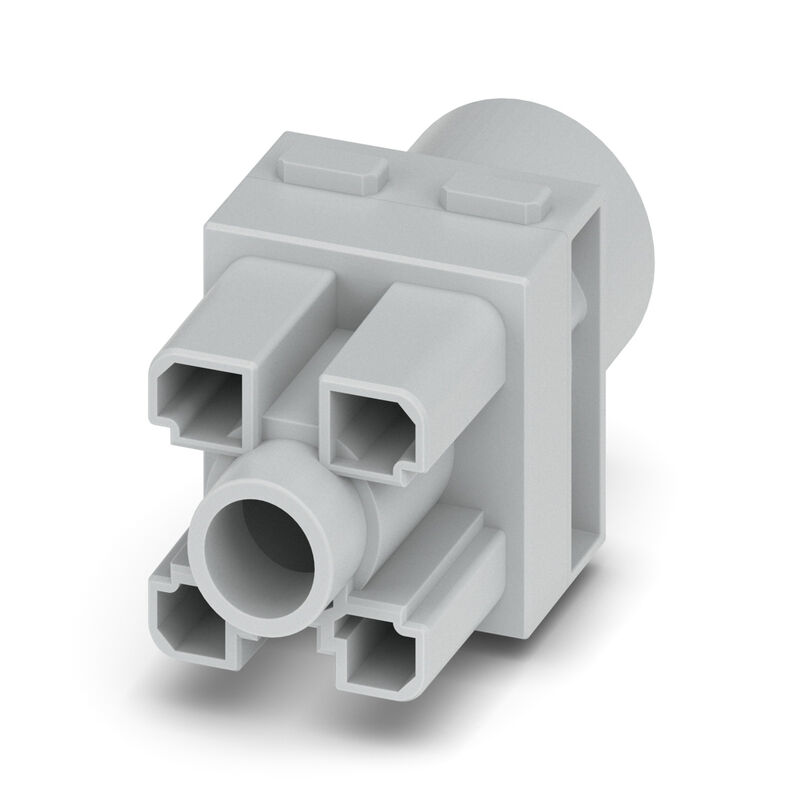

Module, 1000 V, 300 A, Number of poles: 1, Crimp connection, Female, Required plug-in slots: 1.5

Item No. 3187680000
Download data sheet Product Downloads
Related products 115
Approvals General ordering data Dimensions and weights Temperatures General data PE connection data Version Power contact Classifications

Approvals

ROHS
Conform

General ordering data

Version
Module, 1000 V, 300 A, Number of poles: 1, Crimp connection, Female, Required plug-in slots: 1.5
Order No.
3187680000
Type
HDC MHP 300 FC
GTIN (EAN)
4099987958776
Qty.
1 items

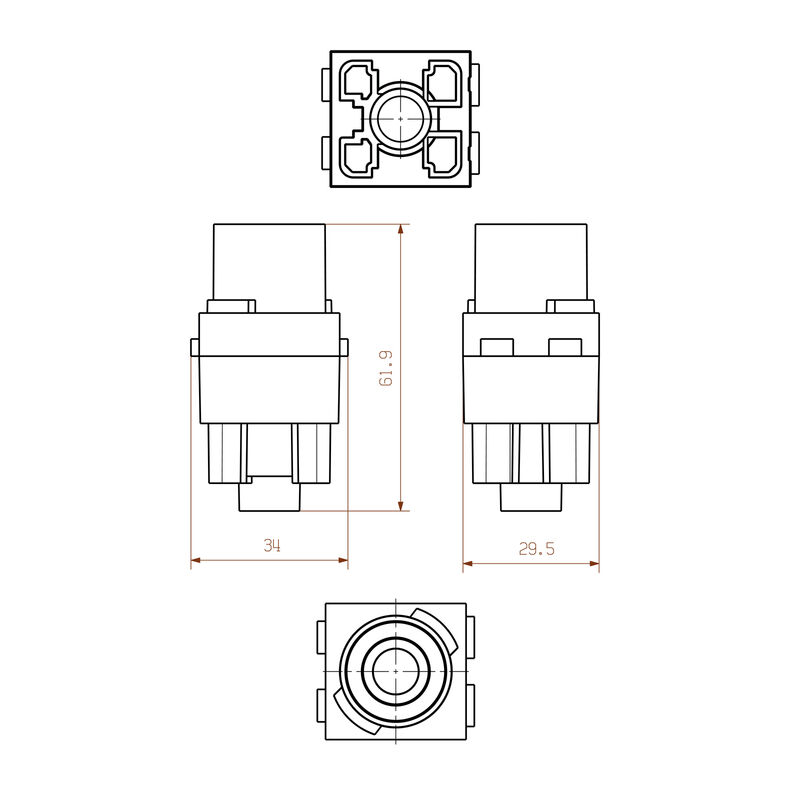

Dimensions and weights

Height
61.9 mm
Height (inches)
2.437 inch
Width
34 mm
Width (inches)
1.339 inch
Length
29.5 mm
Length (inches)
1.161 inch
Net weight
18 g

Temperatures

Limit temperature
-40 °C ... 125 °C

General data

Basic material
Polycarbonate, glass fibre reinforced
Insulation resistance
10¹² Ω
Number of poles
1
Number of potentials
1
Plugging cycles
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
300 A
Rated impulse voltage (DIN EN 61984)
8 kV
Rated voltage (DIN EN 61984)
1,000 V
Rated voltage according to UL/CSA
600 V
Required plug-in slots
1.5
Series
ModuPlug
Surge voltage category
III
Type
Female
UL 94 flammability rating
V-0

PE connection data

Connection type PE
Screw connection via module frame

Version

Conductor cross-section, max.
120 mm²
Conductor cross-section, min.
95 mm²
Stripping length, rated connection
19 mm
Type of connection
Crimp connection
Wire connection cross section AWG, max.
AWG 4/0
Wire connection cross section AWG, min.
AWG 3/0

Power contact

Tightening torque, max. according to the conductor cross-section
  • Conductor cross-section, min.:
    120 mm²
  • Conductor cross-section, max.:
    95 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-17
ECLASS 15.0
27-44-02-17
