Properties
| Version | Female, silver, 35 mm² |
| Order No. | 1435830000 |

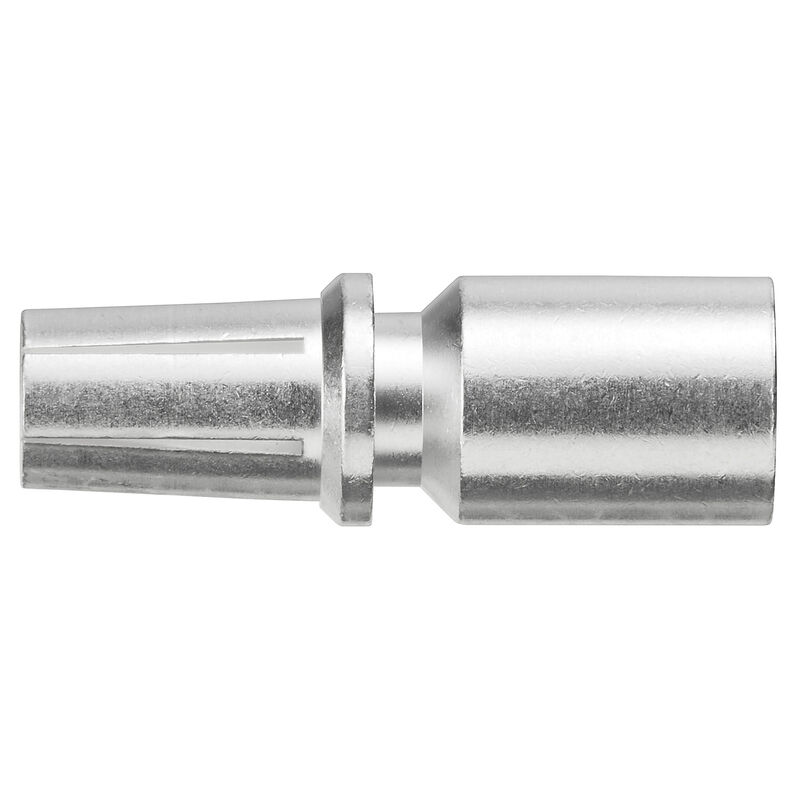

| Type | HDC MHP100 F 35 |
| GTIN (EAN) | 4050118240696 |
| Qty. | 10 items |
| Net weight | 17.077 g |
| Limit temperature | -40 °C ... 125 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6eabd5ae-2d6b-409e-8bdf-87c27ee10e40 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| Conductor cross-section, max. | 35 mm² |
| Cross-section for connected wire | 35 mm² |
| Material | Copper alloy |
| Plugging cycles | ≥ 500 |
| Production methods | turned |
| Stripping length, rated connection | 19 mm |
| Surface finish | silver |
| Type | Female |
| Type of connection | Crimp connection |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72272) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1435830000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1435830000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000796 |
| ETIM 7.0 | EC000796 |
| ETIM 8.0 | EC000796 |
| ETIM 9.0 | EC000796 |
| ECLASS 9.0 | 27-44-02-04 |
| ECLASS 9.1 | 27-44-02-04 |
| ECLASS 10.0 | 27-44-02-04 |
| ECLASS 11.0 | 27-44-02-04 |
| ECLASS 12.0 | 27-44-02-04 |
| ECLASS 13.0 | 27-44-02-04 |
| ECLASS 14.0 | 27-44-02-04 |
| ROHS | Conform |
