Properties

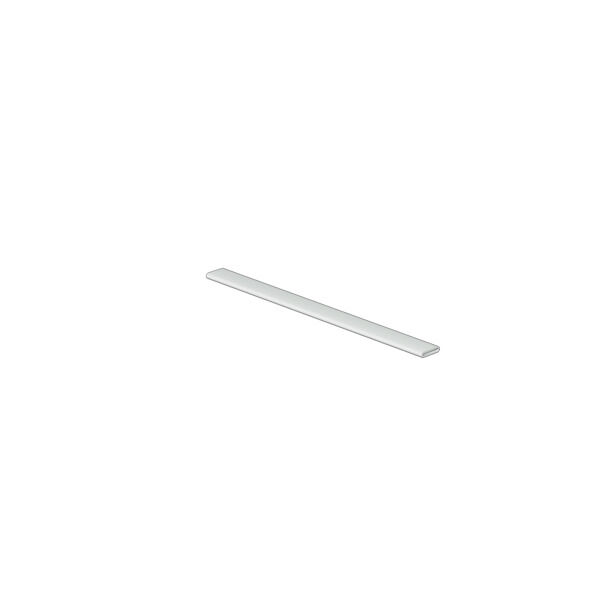

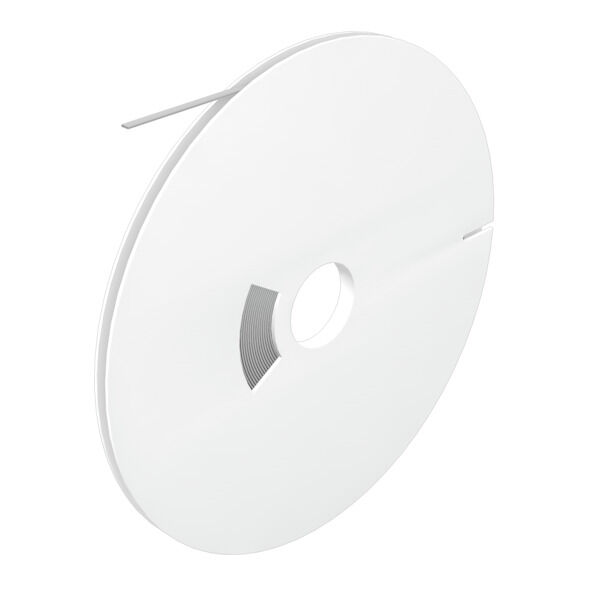

| Version | Conductor and cable markers, 0.8 - 2.4 mm, white |
| Order No. | 1505840000 |
| Type | HSS 0.8-2.4 EL W30M |
| GTIN (EAN) | 4050118314366 |
| Qty. | 1 items |
| Depth | 0.77 mm |
| Depth (inches) | 0.03 inch |
| Width | 4.2 mm |
| Width (inches) | 0.165 inch |
| Length | 30,000 mm |
| Length (inches) | 1,181.1 inch |
| Net weight | 160 g |
| Operating temperature range | -55...135 °C |
| REACH SVHC | / |
| Colour | white |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | Yes |
| Length | 30,000 mm |
| Material | Polyolefine |
| Operating temperature range | -55...135 °C |
| Operating temperature range, max. | 135 °C |
| Operating temperature range, min. | -55 °C |
| Printed characters | without |
| Recommended industries |
Plant manufacture
Energy Device manufacturer Machinery |
| Type of printing | neutral |
| Width | 4.2 mm |
| Conductor cross-section, max. | 0.5 mm² |
| Conductor cross-section, min. | 0.25 mm² |
| Conductor O.D. | 0.8 - 2.4 mm |
| Conductor O.D., max. | 2.4 mm |
| Conductor O.D., min. | 0.8 mm |
| Cross-section for connected wire | 0.25 - 0.5 mm² |
| Halogen | Yes |
| Rate of shrinkage | 3:1 |
| Recommended shrinking temperature | 90 °C |
| Text field height | 4 mm |
| Text field width | 0 mm |
| Product information | External roll holder 1302920000 necessary |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1505840000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1505840000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E366310 |
