Properties

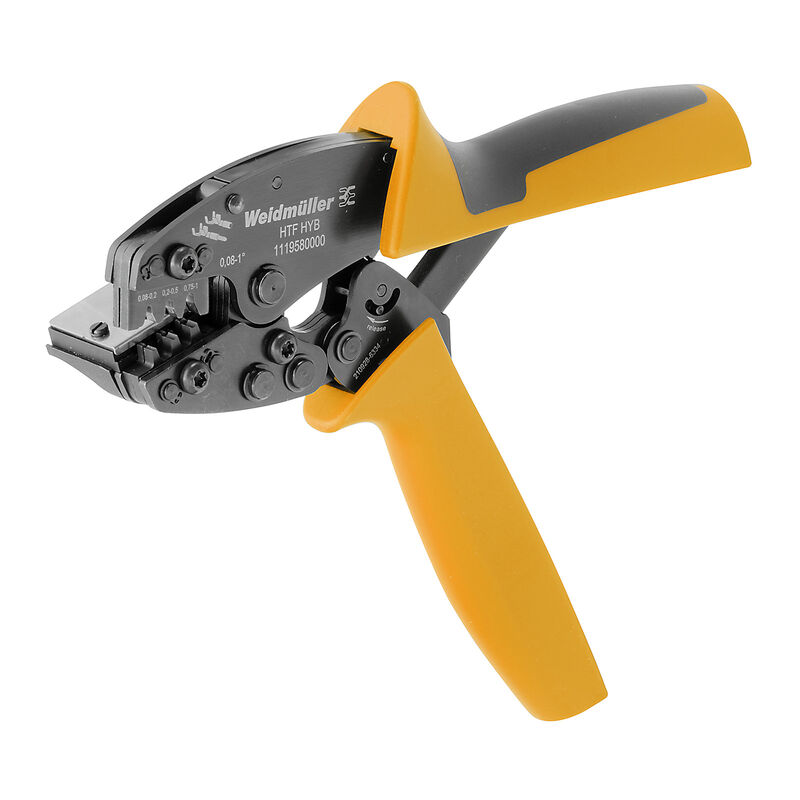

| Version | Pressing tool, Crimping tool for contacts, 0.08mm², 1mm², FoderBcrimp |
| Order No. | 1119580000 |
| Type | HTF HYB |
| GTIN (EAN) | 4032248900626 |
| Qty. | 1 items |
| Width | 200 mm |
| Width (inches) | 7.874 inch |
| Net weight | 443.2 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | (1)Crimping tool |
| Version | Mechanical, without interchangeable inserts |
| Crimping range, max. | 1 mm² |
| Crimping range, min. | 0.08 mm² |
| Crimping type/profile | FoderBcrimp |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
Is accessory of
-
-
Item No.:1072900000Packaging unit:10 PC
Hybrid flange, IP67, Cat.5 (ISO/IEC 11801)
-
-
Item No.:1096180000Packaging unit:300 PC

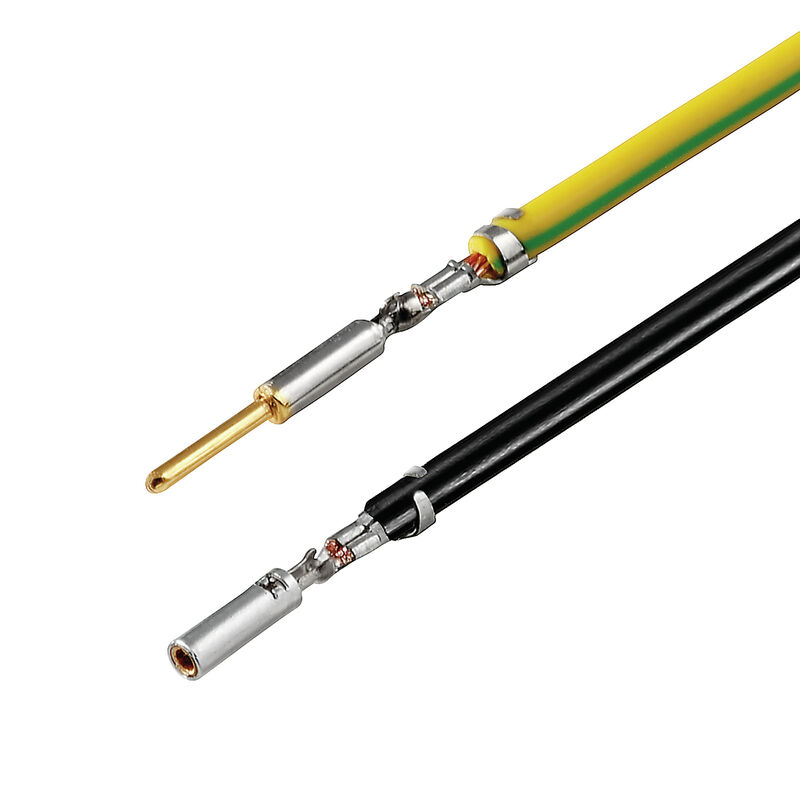

Crimp contact, for plug insert, Hybrid
-
-
Item No.:1135150000Packaging unit:300 PC
Crimp contact, for plug insert, Hybrid
-
Item No.:1096150000Packaging unit:300 PC
Crimp contact, for flange insert, Hybrid
-
Item No.:1135160000Packaging unit:300 PC
Crimp contact, for flange insert, Hybrid
-
Item No.:1068970000Packaging unit:300 PC
Crimp contact, for flange insert, Hybrid
-
Item No.:1068950000Packaging unit:300 PC
Crimp contact, for plug insert, Hybrid
-
Item No.:1068850000Packaging unit:1 PC
Junction box, FreeCon, Hybrid, Module, IP65
