HTI 15
HTI 15

HTI 15

Pressing tool, Tool for insulated cable connectors, 0.5mm², 2.5mm², Double crimp

Item No. 9014400000
Download data sheet Engineering Support Product Downloads
Accessories 55 Is accessory of 131 Spare parts 1 Related products 3
General ordering data Dimensions and weights Environmental Product Compliance Technical data Description of contact tool data crimping Important note Classifications

General ordering data

Wersja
Pressing tool, Tool for insulated cable connectors, 0.5mm², 2.5mm², Double crimp
Nr zam.
9014400000
Typ
HTI 15
GTIN (EAN)
4008190159412
Qty.
1 items

Dimensions and weights

Ширина
200 mm
Width (inches)
7.874 inch
Net weight
440.68 g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
2159813b-98fd-4068-b62a-bc89a046c012

Technical data

Description of article
Crimping tool for insulated connectors, 0.5-2.5 mm²
Wykonanie
Mechanical, without interchangeable inserts

Description of contact

Conductor cross-section, max. AWG
AWG 14
Conductor cross-section, min. AWG
AWG 21
Crimping range, max.
2.5 mm²
Crimping range, min.
0.5 mm²
Type of contact
Insulated connector

tool data crimping

Krimpelési típus/profil
Double crimp
Sección del terminal tubular, max.
2.5 mm²
크림핑 스테이션
  • Crimping station number:
    1
  • Conductor cross-section, min.:
    0.5 mm²
  • Conductor cross-section, max.:
    1.5 mm²
  • Conductor cross-section AWG, min.:
    21 AWG
  • Conductor cross-section AWG, max.:
    16 AWG
  • Colour of crimping station:
    Red
  • Crimping station number:
    2
  • Conductor cross-section, min.:
    1.5 mm²
  • Conductor cross-section, max.:
    2.5 mm²
  • Conductor cross-section AWG, min.:
    16 AWG
  • Conductor cross-section AWG, max.:
    14 AWG
  • Colour of crimping station:
    Blue

Important note

Product information

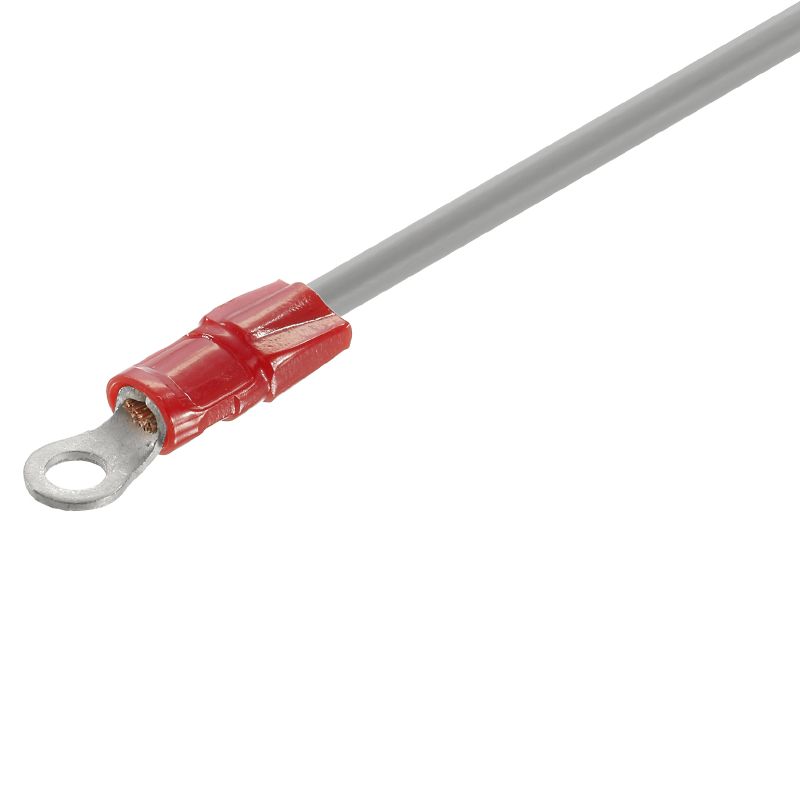

Not suitable for solid conductors. Insulation on the contact is pressed conically.

Classifications

ETIM 8.0
EC000168
ETIM 9.0
EC000168
ETIM 10.0
EC000168
ECLASS 14.0
21-04-38-11
ECLASS 15.0
21-04-38-11
