Properties
| Version | Pressing tool, Crimping tool for contacts, Hexagonal crimp |
| Order No. | 9012400000 |

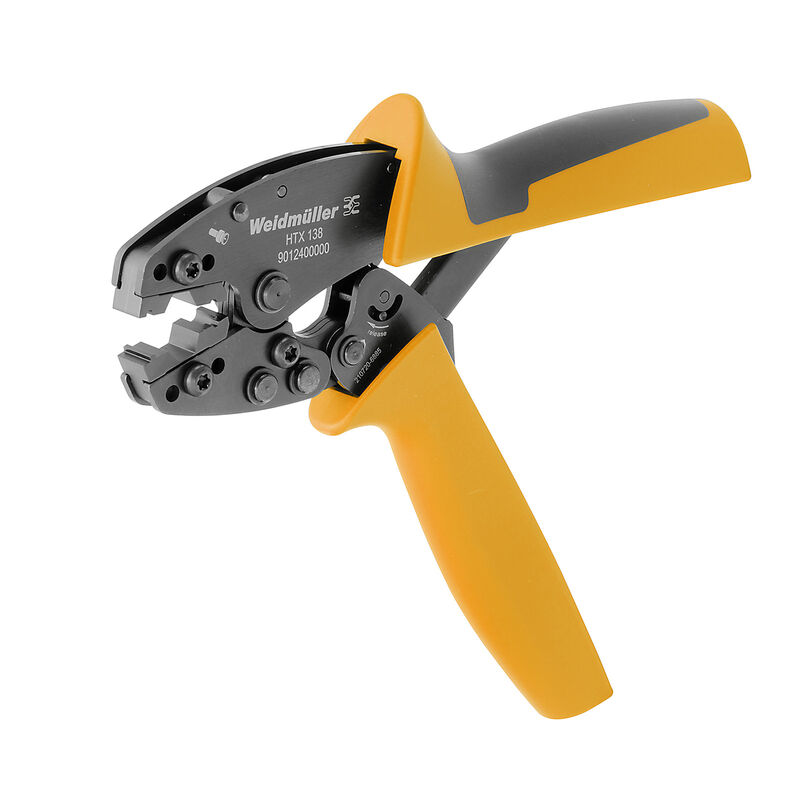

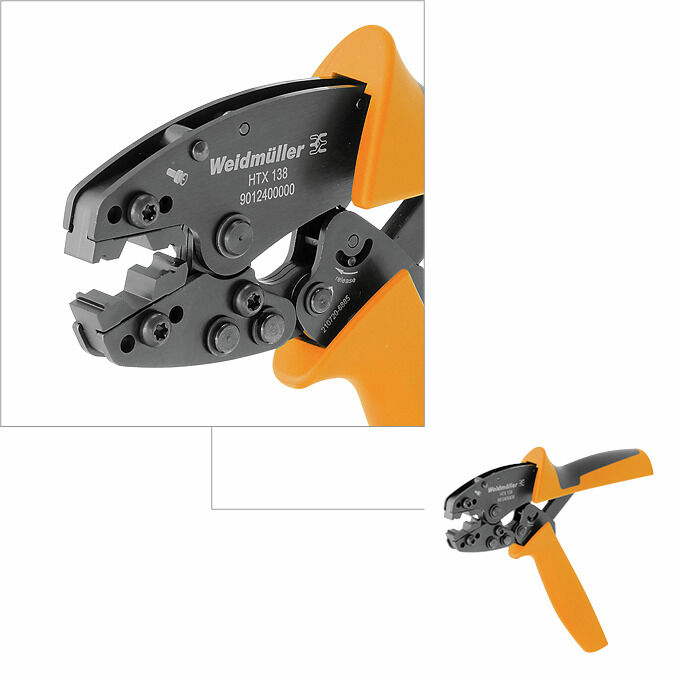

| Type | HTX 138 |
| GTIN (EAN) | 4008190036546 |
| Qty. | 1 items |
| Width | 200 mm |
| Width (inches) | 7.874 inch |
| Net weight | 415.08 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | Crimping tool for Twinax coaxial cable / AF 8.24 |
| Version | Mechanical, without interchangeable inserts |
| Type of contact | Coaxial connector |
| Crimping station, width (B 1) | 10 mm |
| Crimping station, width (B 2) | 2.3 mm |
| Crimping type/profile | Hexagonal crimp |
| Diameter of outer sleeve | 9.5 mm |
| Hexagon AF (A) | 8.24 mm |
| Hexagon spanner width (A 2) | 1.72 mm |
| Internal contact diameter (D) | 2 mm |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101171) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
