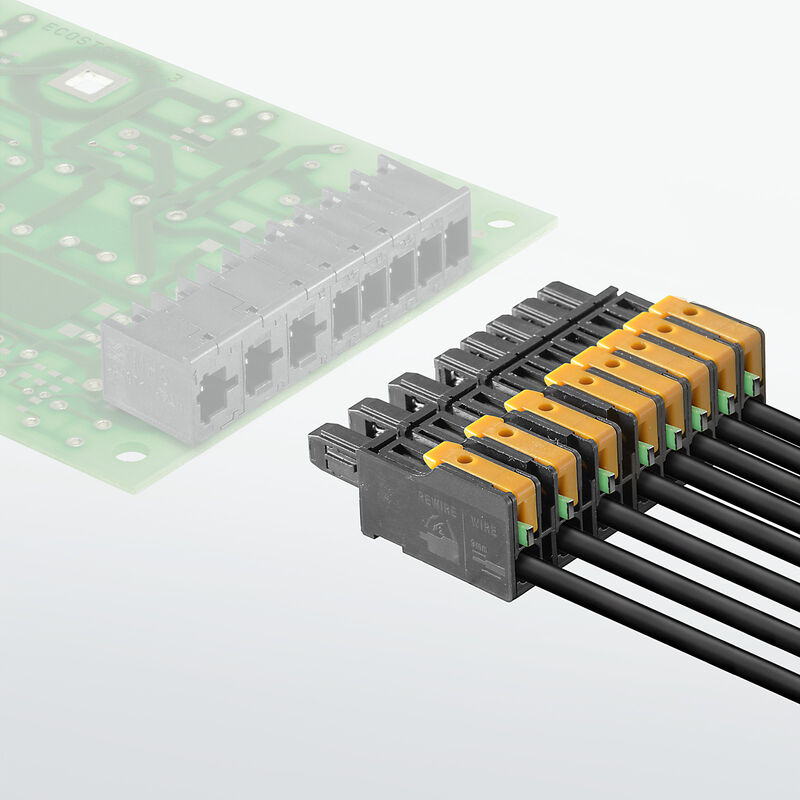

Hybrid -Connection
OMNIMATE® 4.0 - the next evolution step
OMNIMATE® 4.0 follows the trend of One Cable Technology (OCT). The modular concept enables the fast configuration of hybrid interfaces, which transmit data, signals and energy in a single connector. As a result, you can reduce the cabling effort in a wide variety of applications, simplify maintenance and accelerate automation processes. The unique SNAP IN connection is the backbone and speeds up the wiring process.
The fastest connection yet
- Fast, safe, and tool-free wiring due to unique SNAP IN connection
- Ready for Robot through "wire ready" delivery with open clamping point
- Optical and acoustic feedback indicates proper wiring
Create your own configuration
- Flexible configuration and ordering via the Weidmüller Configurator (WMC)
- Dispatch within three days – even for individually configured products
- Automatic offer preparation for the configurated product
Simply configuration of modular hybrid connectors
- Flexible combination options for power, signal and data transmission
- Future-proof Single-Pair Ethernet technology
-
Item No.:8000085260Packaging unit:11 PC
PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 7.50 mm, Number of poles: 6, 90°, Tube
-
Item No.:8000085192Packaging unit:13 PC
PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 7.50 mm, Number of poles: 5, 90°, Tube
-
Item No.:8000085261Packaging unit:10 PC
PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 7.50 mm, Number of poles: 7, 90°, Tube
-
Item No.:8000085263Packaging unit:9 PC
PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 7.50 mm, Number of poles: 8, 90°, Tube
-
Item No.:8000085269Packaging unit:36 PC
PCB plug-in connector, female plug, Pitch in mm (P): 7.50 mm, Number of poles: 6, Box
-
Item No.:8000085268Packaging unit:42 PC
PCB plug-in connector, female plug, Pitch in mm (P): 7.50 mm, Number of poles: 5, Box
-
Item No.:8000085270Packaging unit:30 PC
PCB plug-in connector, female plug, Pitch in mm (P): 7.50 mm, Number of poles: 7, Box
-
Item No.:8000085271Packaging unit:30 PC
PCB plug-in connector, female plug, Pitch in mm (P): 7.50 mm, Number of poles: 8, Box
-
Item No.:2741520000Packaging unit:22 PC
PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 3, 90°, Tube
-
Item No.:2741530000Packaging unit:18 PC
PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 4, 90°, Tube
-
Item No.:2741550000Packaging unit:13 PC
PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 6, 90°, Tube
-
Item No.:2741540000Packaging unit:15 PC
PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 5, 90°, Tube
-
Item No.:2741800000Packaging unit:48 PC
PCB plug-in connector, female plug, Pitch in mm (P): 5.00 mm, Number of poles: 5, 180°, Box
-
Item No.:2741810000Packaging unit:42 PC
PCB plug-in connector, female plug, Pitch in mm (P): 5.00 mm, Number of poles: 6, 180°, Box
-
Item No.:2741910000Packaging unit:48 PC
PCB plug-in connector, female plug, Pitch in mm (P): 5.00 mm, Number of poles: 5, 180°, Box
-
Item No.:2741900000Packaging unit:60 PC
PCB plug-in connector, female plug, Pitch in mm (P): 5.00 mm, Number of poles: 4, 180°, Box
-
Item No.:2741920000Packaging unit:42 PC
PCB plug-in connector, female plug, Pitch in mm (P): 5.00 mm, Number of poles: 6, 180°, Box
-
Item No.:2741780000Packaging unit:72 PC
PCB plug-in connector, female plug, Pitch in mm (P): 5.00 mm, Number of poles: 3, 180°, Box
-
Item No.:2741890000Packaging unit:72 PC
PCB plug-in connector, female plug, Pitch in mm (P): 5.00 mm, Number of poles: 3, 180°, Box
-
Item No.:2741790000Packaging unit:60 PC
PCB plug-in connector, female plug, Pitch in mm (P): 5.00 mm, Number of poles: 4, 180°, Box
