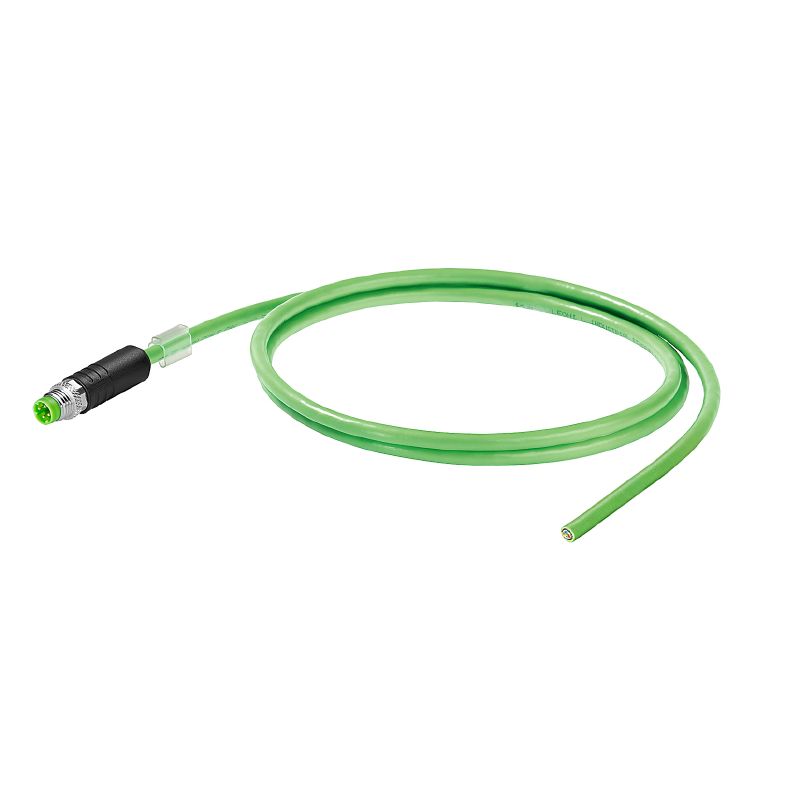

Dragline cable, PROFINET, M8 D-code - IP67 straight pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 10 m

Item No. 2706150100
Download data sheet Engineering Support Product Downloads
Related products 57
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Verze
Dragline cable, PROFINET, M8 D-code - IP67 straight pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 10 m
Číslo objednávky
2706150100
Typ
IE-C5DD4UG0100DCSXXX-E
GTIN (EAN)
4050118742770
Množství
1 items

Dimensions and weights

Délka
10 m
Length (inches)
393.701 inch
Net weight
619 g

Temperatures

Skladovací teplota
-50 °C...70 °C
Provozní teplota
-40 °C...70 °C
Teplota instalace
-20 °C...60 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant with exemption
Výjimka ze směrnice RoHS (je-li použitelné/známo)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Standard, izolační materiál
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standardní, materiál stínění
DIN EN 13602 Cu-ETP-A..B
Standardní, materiál vodiče
DIN EN 13602 Cu-ETP-A

General standards

Connector standard
IEC 61076-2-114

Standards

Connector standard
IEC 61076-2-114
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

Arrangement of wire cores
Star-quad
Colour sequence or wires - wire pairs
white, yellow, blue, orange
Complete shielding
Aluminium foil
Shielding braid made from copper wiring
Cross-section
4*AWG 22/7 - 0.32 mm²
Diameter of inner sheathing
3.9 mm
Filler
As central element
Insulation
PE
Insulation cross-section
1.5 mm
Material sheath
PUR
Number of wires
4
Overlap of shielding braid
85 %
Sheath diameter, max.
6.7 mm
Sheath diameter, min.
6.3 mm
Sheathing colour
green (RAL 6018)
Sheathing material thickness
0.9 mm
Shielding
SF/UTP
Shielding braid thickness
0.13 mm
Standard designations
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Strands
7
Wire core insulation thickness
0.38 mm
Wire material
Stranded tin-plated copper wire

Electrical properties of cable

Capacity at 1 kHz
52 nF/km
Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Delay skew
40 ns/100m
Loop resistance
120 Ω/km
Operating voltage (UL rating)
600 V
Operating voltage, UL
600 V
Resistance differential
3 %
Signal propagation time
5.3 ns/m
Speed
180 m/min
Test voltage: wire-wire-shield
2000 Veff, 50 Hz, 1 min
Transfer impedance
20 mΩ/m at 10 MHz

Mechanical and material properties of cable

Fire propagation
No
Force d'extraction
≤ 150 N
Gyorsulás
4 m/s²
Hajlítási ciklusok
3 Mio
Halogen
halogen-free, according to IEC 60754-2
Min. hajlítási sugár, csak egyszer
5 x cable diameter
Min. hajlítási sugár, ismétlődő
7.5 x cable diameter
Resistenza all'abrasione
very good
Sin silicona
Yes
Speed
180 m/min
UV-resistant
Yes
Ölbeständigkeit
in accordance with IEC 60811-2-1
화염 내성
in accordance with IEC 60332-1

Plug, left

Wtyk po lewej
M8, D-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Zástrčka vpravo
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
