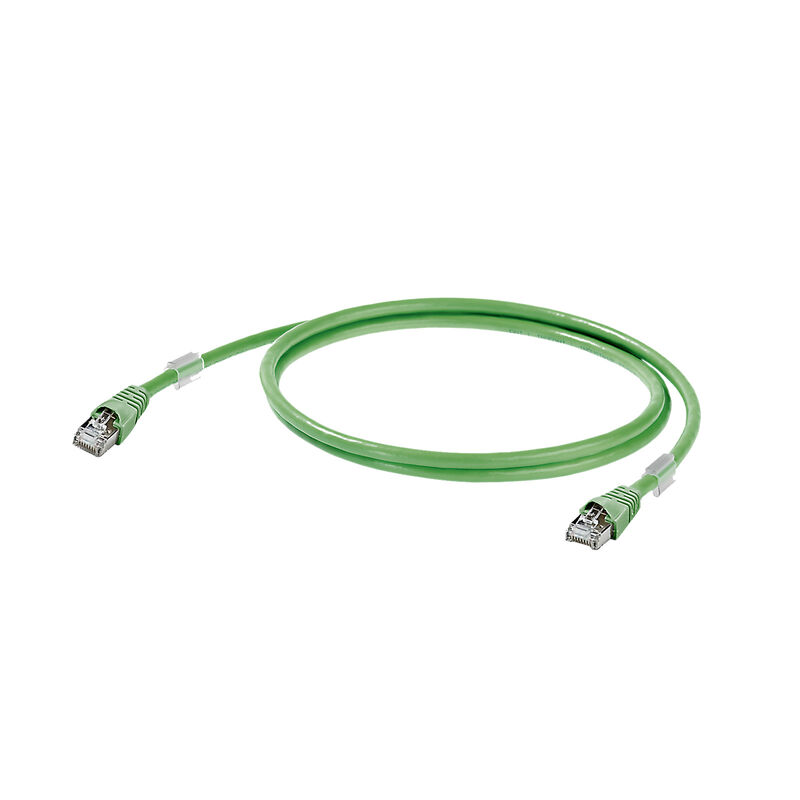

System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801), PUR, 5 m

Ürün No. 1166000050
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 2 İlgili ürünler 16
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical properties General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications Approvals

General ordering data

Version
System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801), PUR, 5 m
Order No.
1166000050
Type
IE-C5ES8UG0050M40M40-G
GTIN (EAN)
4032248956579
Qty.
1  adet

Dimensions and weights

Length
5  m
Length (inches)
196,85  inch
Net weight
201  g

Temperatures

Operating temperature
-40 °C...75 °C
Installation temperature
-10 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Electrical properties

PoE / PoE+
conforming to IEEE 802.3at

General standards

Certificate no. (cULus)
E316369
Connector standard
IEC 60603-7-51

Standards

Connector standard
IEC 60603-7-51

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white/blue - blue, white/orange - orange, white/green - green, white/brown - brown
Complete shielding
Shielding braid made from copper wiring
Cross-section
4*2*AWG 26/7 - 4*2*0.128 mm²
Insulation
PE
Insulation cross-section
0,98  mm
Material sheath
PUR
Number of wires
8
Sheath diameter, max.
6  mm
Sheath diameter, min.
5,6  mm
Sheathing colour
green
Shielding
SF/UTP
Strands
7
Wire material
Stranded tin-plated copper wire
Wire pair shielding
Aluminium foil

Electrical properties of cable

Category
Cat.5 (ISO/IEC 11801)
Test voltage: wire-wire-shield
750 V DC, 1 min
Transmission rate
10/100 MBit/s
1000 MBit/s

Mechanical and material properties of cable

Abrasion resistance
very good
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Resistance to oils
EN 50305
Resistance to spread of flame
in accordance with IEC 60332-1
Silicone-free
Yes
UV-resistant
Yes

Plug

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded
Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, left

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 6.0
EC002599
ETIM 7.0
EC002599
ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 9.0
27-06-03-08
ECLASS 9.1
27-06-03-08
ECLASS 10.0
27-06-03-08
ECLASS 11.0
27-06-03-08
ECLASS 12.0
27-06-03-08
ECLASS 13.0
27-06-03-08
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08

Approvals

Approvals
