Properties
| Category | Cat.5 (ISO/IEC 11801) |
| Connector left | RJ45 IP 20 |
| Connector right | RJ45 IP 20 |
| Material sheath | PUR |
| Product type | System cable |
| Sheathing colour | green |
| Version | System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801), PUR, 10 m |
| Order No. | 1166000100 |

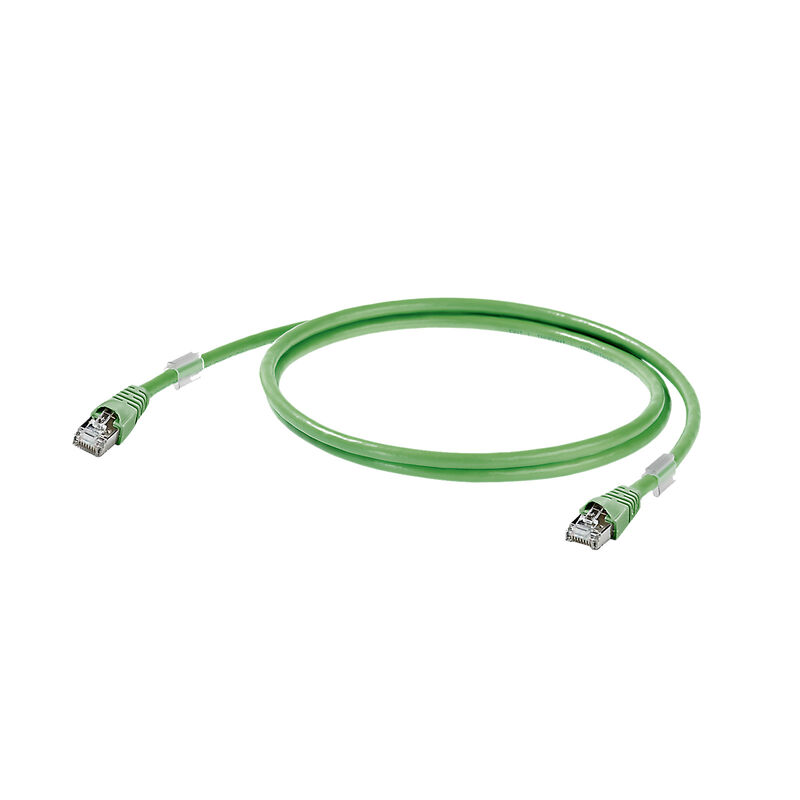

| Type | IE-C5ES8UG0100M40M40-G |
| GTIN (EAN) | 4032248956586 |
| Qty. | 1 items |
| Length | 10 m |
| Length (inches) | 393.701 inch |
| Net weight | 367 g |
| Operating temperature | -40 °C...75 °C |
| Installation temperature | -10 °C...60 °C |
| REACH SVHC | / |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Certificate no. (cULus) | E316369 |
| Connector standard | IEC 60603-7-51 |
| Connector standard | IEC 60603-7-51 |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white/blue - blue, white/orange - orange, white/green - green, white/brown - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Insulation | PE |
| Insulation cross-section | 0.98 mm |
| Material sheath | PUR |
| Number of wires | 8 |
| Sheath diameter, max. | 6 mm |
| Sheath diameter, min. | 5.6 mm |
| Sheathing colour | green |
| Shielding | SF/UTP |
| Strands | 7 |
| Wire material | Stranded tin-plated copper wire |
| Wire pair shielding | Aluminium foil |
| Category | Cat.5 (ISO/IEC 11801) |
| Test voltage: wire-wire-shield | 750 V DC, 1 min |
| Transmission rate |
10/100 MBit/s
1000 MBit/s |
| Abrasion resistance | very good |
| Halogen | halogen-free, according to IEC 60754-2 |
| Min. bending radius, once only | 5 x cable diameter |
| Min. bending radius, repetitive | 10 x cable diameter |
| Resistance to oils | EN 50305 |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Silicone-free | Yes |
| UV-resistant | Yes |
| Plug left | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug right | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug left | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug right | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_181095) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1166000100) |
| Product Change Notification |
[PCN-PB47-20180213-00-A_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_52811)
[PCN-PB47-20180213-00-A_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_52812) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E316369 |
