Properties

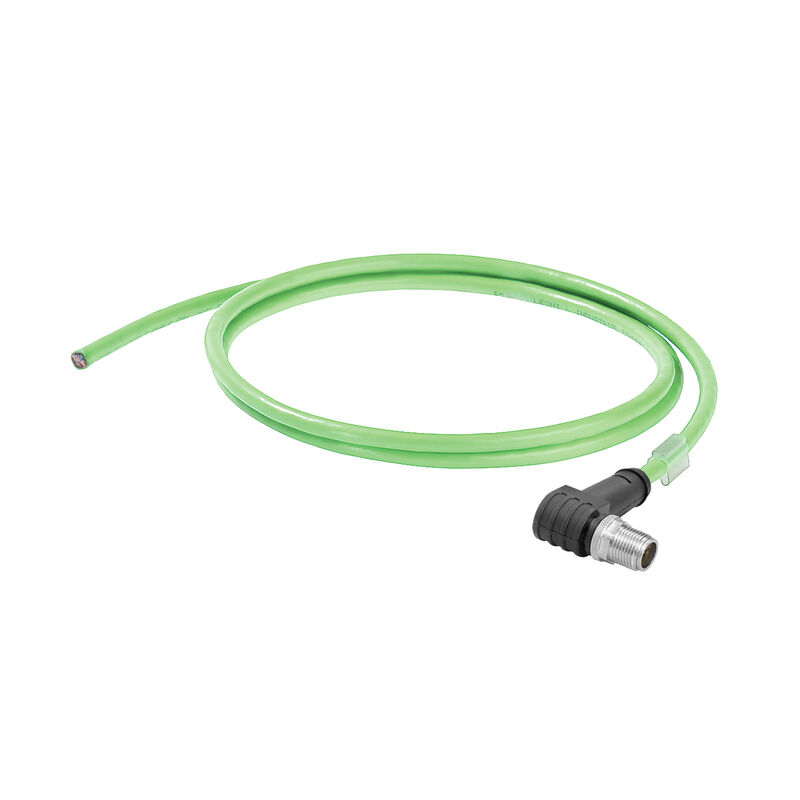

| Version | System cable, Open, M12 X-type IP67 male, angled, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 5 m |
| Order No. | 2455130050 |
| Type | IE-C6EL8UG0050XCAXXX-E |
| GTIN (EAN) | 4050118497618 |
| Qty. | 1 items |
| Length | 5 m |
| Length (inches) | 196.85 inch |
| Net weight | 250 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...80 °C |
| Installation temperature | -20 °C...60 °C |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Impervious to smoke | According to IEC 61034 |
| Standard, assembly | UL Style 20963 |
| Impervious to smoke | According to IEC 61034 |
| Standard, assembly | UL Style 20963 |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white - blue, white - orange, white - green, white - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Copper diameter | 0.48 µm |
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Insulation | PE |
| Insulation cross-section | 0.98 mm |
| Material sheath | PUR |
| Number of wires | 8 |
| Sheath diameter, max. | 6.7 mm |
| Sheath diameter, min. | 6.1 mm |
| Sheathing colour | green (RAL 6018) |
| Shielding | S/FTP |
| Shielding braid thickness | 0.1 mm |
| Standard designations |
S/FTP
LIO2YSC11Y 4x2x0.15 PIMF FRNC GN |
| Strands | 7 |
| Wire material | Stranded tin-plated copper wire |
| Wire pair shielding | Aluminium foil |
| Wiring | EIA/TIA T568 B |
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Loop resistance | 290 Ω/km |
| Signal propagation time | 5.2 ns/m |
| Test voltage: wire-wire-shield | 700 Vrms, 50 Hz, 1 min |
| Transfer impedance |
15 mΩ/m at 1 MHz
10 mΩ/m at 10 MHz 30 mΩ/m at 30 MHz |
| Transmission rate | 10 Gbit/s |
| Abrasion resistance | very good |
| Halogen | halogen-free, according to IEC 60754-1 |
| Impervious to smoke | According to IEC 61034 |
| Min. bending radius, once only | 5 x cable diameter |
| Min. bending radius, repetitive | 10 x cable diameter |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Resistance to spread of flame | in accordance with IEC 60332-1-2 |
| Plug left | M12, X-coded, IP67, male contact, straight, plug, Plastic, shielded |
| Plug right | free conductor end |
