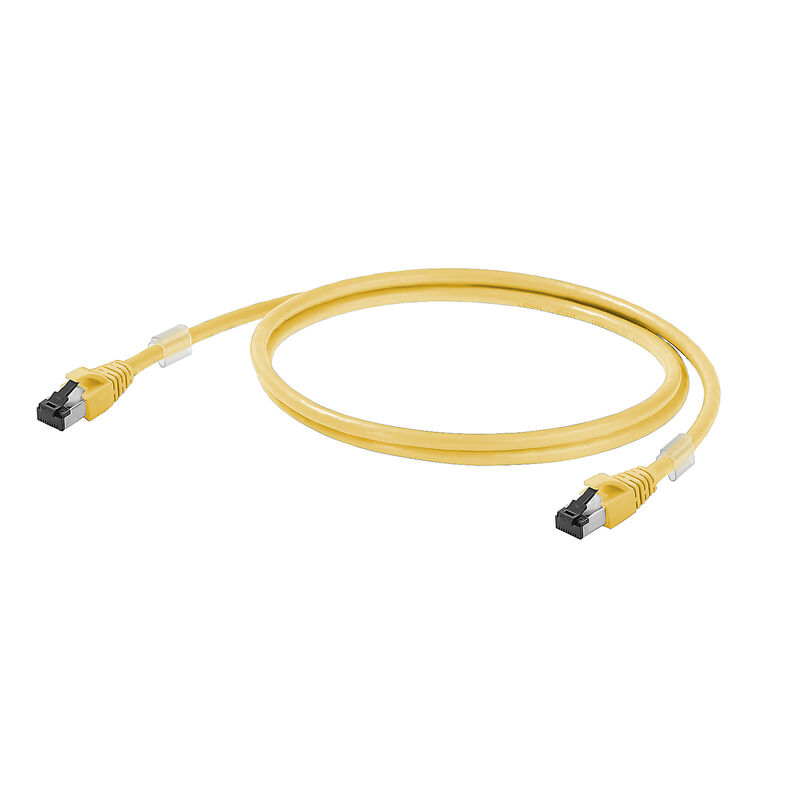

Patch cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 1.5 m

Item No. 1251580015
Download data sheet Engineering Support Product Downloads
Accessories 2 Related products 20
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical properties General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319218/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Version
Patch cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 1.5 m
Order No.
1251580015
Type
IE-C6FP8LY0015M40M40-Y
GTIN (EAN)
4050118042962
Qty.
1  items

Dimensions and weights

Length
1.5  m
Length (inches)
59.055  inch
Net weight
70  g

Temperatures

Storage temperature
-20 °C...60 °C
Operating temperature
-20 °C...60 °C
Installation temperature
0 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Electrical properties

Current-carrying capacity at 50 °C
1  A
PoE / PoE+
conforming to IEEE 802.3at

General standards

Application-specific communication cable facilities
ANSI / TIA / EIA-568-B.2-10
ISO / IEC 11801:2002
EN50173-1:2007
Certificate no. (cULus)
E316369
Connector standard
IEC 60603-7-51

Standards

Connector standard
IEC 60603-7-51

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Shielding braid made from copper wiring
Cross-section
4*2*AWG 27/7 - 4*2*0.1 mm²
Insulation
PE
Insulation cross-section
1.04  mm
Material sheath
LSZH
Number of wires
8
Overlap of shielding braid
60  %
Sheath diameter, max.
5.9  mm
Sheath diameter, min.
5.5  mm
Sheathing colour
yellow
Shielding
S/FTP
Strands
7
Wire pair shielding
Aluminium foil

Electrical properties of cable

Capacity at 1 kHz
46  nF/km
Category
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Coupling attenuation up to 1000 MHz
80  dB
Coupling resistance at 10 MHz / m
5  mΩ
Delay skew
2.5  ns/100m
Operating voltage
50 V DC
Operating voltage (UL rating)
30 V AC / 42.4 V DC
Resistance differential
5  %
Separating class according to EN 50174-2
d
Test voltage: wire-wire-shield
2.5 kV / DC for 2 sec
Transmission rate
10 Gbit/s

Mechanical and material properties of cable

Colour
yellow
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
4 x cable diameter
Resistance to spread of flame
in accordance with IEC 60332-2-2
in accordance with IEC 60332-1-2
in accordance with IEC 60332-3-24
in accordance with UL 2556 (FT1)

Plug

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded
Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, left

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 6.0
EC002599
ETIM 7.0
EC002599
ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 9.0
27-06-03-08
ECLASS 9.1
27-06-03-08
ECLASS 10.0
27-06-03-08
ECLASS 11.0
27-06-03-08
ECLASS 12.0
27-06-03-08
ECLASS 13.0
27-06-03-08
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
