Properties

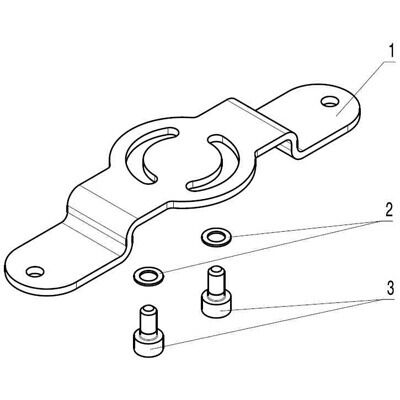

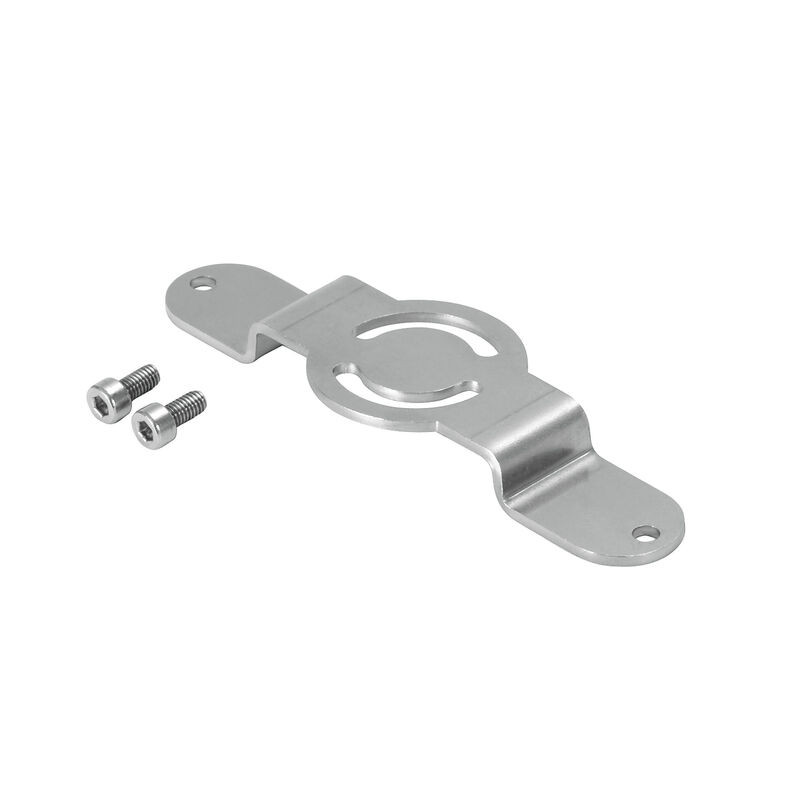

| Version | Mounting foot, FreeCon, IP65 |
| Order No. | 1099580000 |
| Type | IE-CD-MA |
| GTIN (EAN) | 4032248874040 |
| Qty. | 10 items |

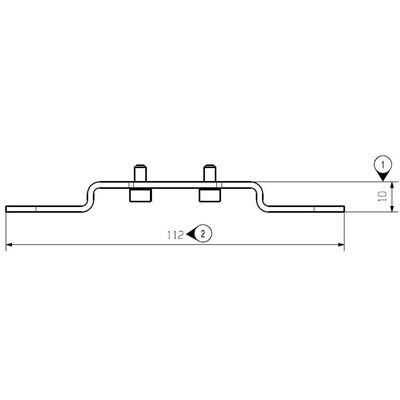

| Height | 10 mm |
| Height (inches) | 0.394 inch |
| Width | 35 mm |
| Width (inches) | 1.378 inch |

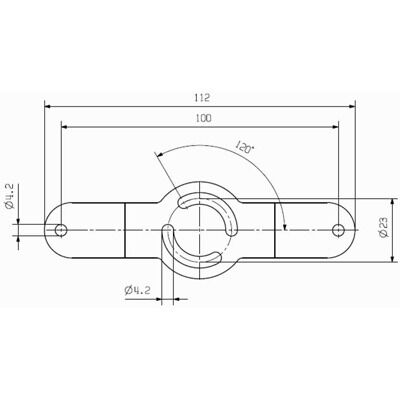

| Length | 112 mm |
| Length (inches) | 4.409 inch |
| Net weight | 42.9 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate no. (cULus) | E316369 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_152729) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1099580000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1099580000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002625 |
| ETIM 7.0 | EC002625 |
| ETIM 8.0 | EC002625 |
| ETIM 9.0 | EC002625 |
| ECLASS 9.0 | 27-18-28-07 |
| ECLASS 9.1 | 27-18-92-34 |
| ECLASS 10.0 | 27-18-28-07 |
| ECLASS 11.0 | 27-18-28-07 |
| ECLASS 12.0 | 27-18-28-07 |
| ECLASS 13.0 | 27-18-28-07 |
| ECLASS 14.0 | 27-18-28-07 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E316369 |
Is accessory of
-
Item No.:1068850000Packaging unit:1 PC
Junction box, FreeCon, Hybrid, Module, IP65
-
-
Item No.:1068830000Packaging unit:1 PC
Junction box, FreeCon, RJ45 module, Supply, IP65
