Properties
| Version | FrontCom, Insert plate, unshielded, 1x Power, 2x Data |
| Order No. | 1450630000 |
| Type | IE-FC-IP-PWB/2ST |
| GTIN (EAN) | 4050118255515 |
| Qty. | 1 items |

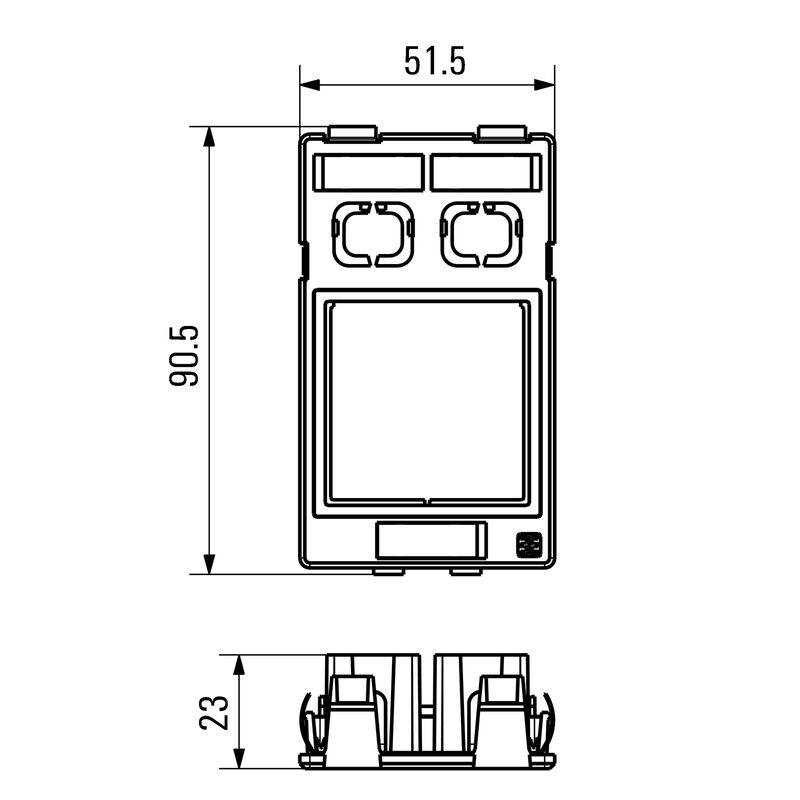

| Height | 23 mm |
| Height (inches) | 0.906 inch |
| Width | 51.5 |
| Width (inches) | 2.028 inch |
| Length | 90.5 mm |
| Length (inches) | 3.563 inch |
| Net weight | 16.5 g |
| Operating temperature | -40 °C...70 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 8a473a8a-33d4-4318-8088-c28f019e7f77 |
| Material | Polycarbonate PC |
| Product type |
Insert plate
unshielded |
| Insert Power large | 1 |
| Insert, data | 2 |
| Certificate No. (CSA) | 2000039-80039714 |
| Certificate No. (cURus) | E223801 |
| Certificate No. (DNV) | TAA000022B |
| Approval/Certificate/Document of Conformity | [GL_FrontCom](https://mdcop.weidmueller.com/mediadelivery/asset/900_58424) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_87491) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1450630000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1450630000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90847) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC000456 |
| ETIM 7.0 | EC000456 |
| ETIM 8.0 | EC000456 |
| ETIM 9.0 | EC000456 |
| ECLASS 9.0 | 27-18-28-06 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-28-06 |
| ECLASS 11.0 | 27-18-28-06 |
| ECLASS 12.0 | 27-18-28-92 |
| ECLASS 13.0 | 27-18-28-92 |
| ECLASS 14.0 | 27-18-28-92 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223801 |
Accessories
-
-
-
-
Item No.:1546590000Packaging unit:1 PC
FrontCom, Insert Power large, Type I, Socket connector, AU, 10 A
-
Item No.:1450770000Packaging unit:1 PC
FrontCom, Insert Power large, Type G, Socket connector, GB
-
Item No.:1450790000Packaging unit:1 PC
FrontCom, Insert Power large, Type I, Socket connector, CN
-
Item No.:1554000000Packaging unit:1 PC
FrontCom, Insert Power large, Type F, Socket connector, DE, orange
-
Item No.:1450780000Packaging unit:1 PC
FrontCom, Insert Power large, Type J, Socket connector, CH
-
Item No.:1450830000Packaging unit:1 PC
FrontCom, Insert Power large, Type I, Socket connector, AU, 15 A
-
Item No.:1450730000Packaging unit:1 PC
FrontCom, Insert Power large, Type F, Socket connector, DE
-
Item No.:1534250000Packaging unit:1 PC
FrontCom, Residual current operated circuit breaker with overcurrent protection (RCBO), Insert Power large, RCBO
-
-
Item No.:1736181044Packaging unit:200 PC
ESG, Device markers x 20 mm, PA 66, Colour: white, pluggable
-
-
Item No.:1963830000Packaging unit:10 PC
RJ45 insert socket, Connector for base, PROFINET
-
Item No.:1962850000Packaging unit:10 PC
RJ45 insert socket, Connector for base, TIA-568A
-
Item No.:1963840000Packaging unit:10 PC
RJ45 insert socket, Connector for base, TIA-568B
