Properties

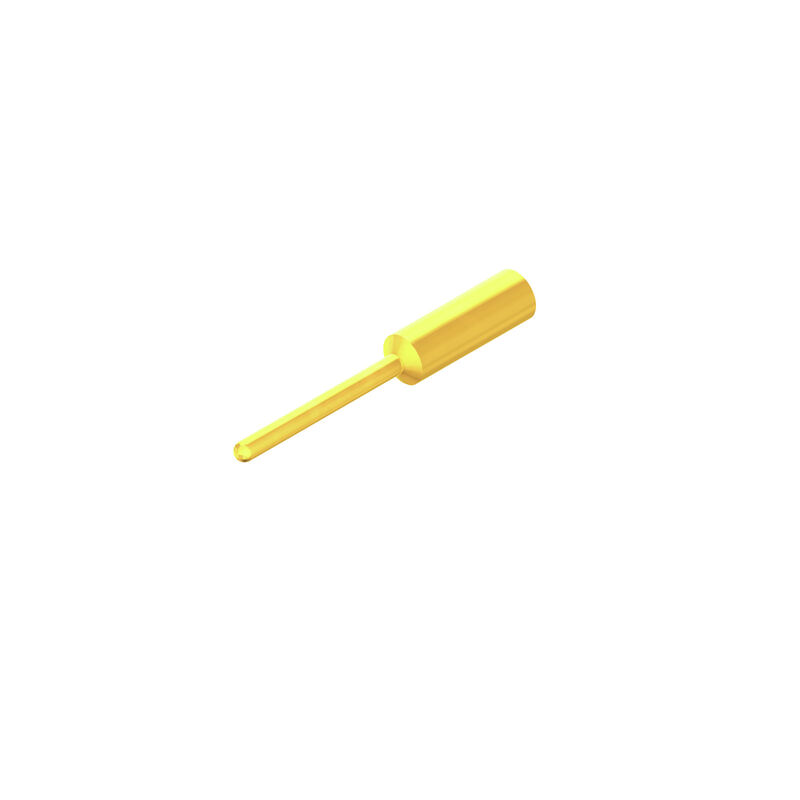

| Version | Contact, Pin |
| Order No. | 2664880000 |
| Type | IE-PIC-M12X-P-22/26 |
| GTIN (EAN) | 4050118765342 |
| Qty. | 100 items |
| Net weight | 0.047 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Coding | X-coded |
| Conductor cross-section, max. | 0.14 mm² |
| Conductor cross-section, min. | 0.34 mm² |
| Connection cross-section | AWG 22 - AWG 26 |
| Contact material |
Copper alloy
Gold-plated |
| Number of poles | 4 |
| Rated current | 1 A |
| Number of poles | 4 |
| Connection 1 | M12 Contact |
| Connection 2 | Crimp |
| Contact material |
Copper alloy
Gold-plated |
| Contact resistance | ≤ 10 mΩ |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 9.0 | EC002635 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-01-02 |
| ECLASS 12.0 | 27-44-01-16 |
| ECLASS 13.0 | 27-44-01-02 |
| ECLASS 14.0 | 27-44-01-16 |
| ROHS | Conform |
