Properties
| Version | RJ45 IDC plug, Cat.5 (ISO/IEC 11801), 4-core, PROFINET |
| Order No. | 1132060000 |

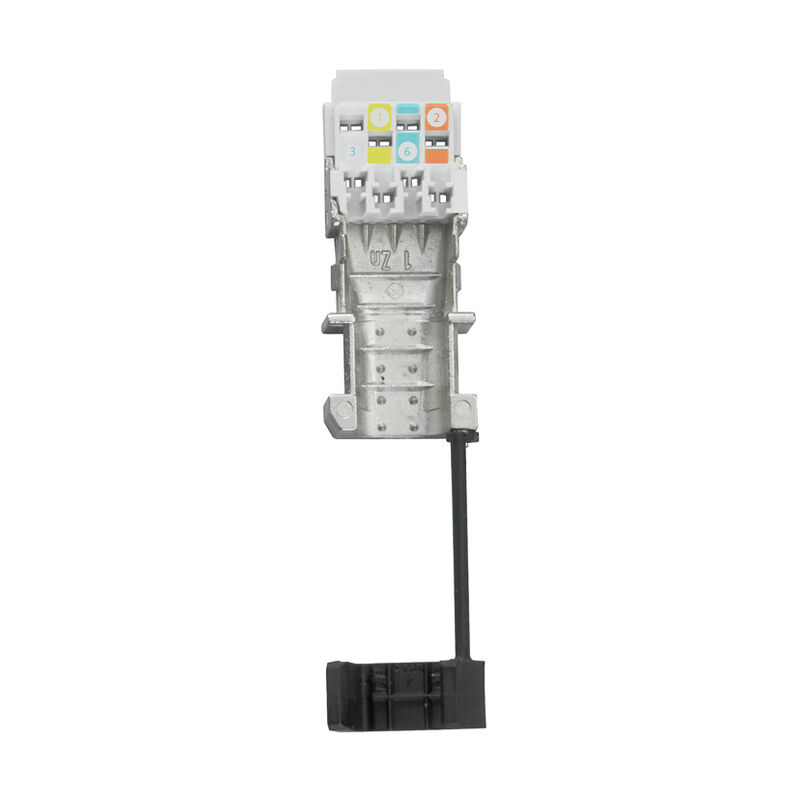

| Type | IE-PS-RJ45-FH-BK-P |
| GTIN (EAN) | 4032248912162 |
| Qty. | 10 items |
| Net weight | 19.9 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Fire load | 77 kJ |
| Halogen | No |
| Material locking lever | PA UL94-V0 |
| Material strain relief | PA UL94-V0 |
| Connection 1 | RJ45 |
| Connection 2 | IDC |
| Wiring |
4-core
PROFINET |
| Housing main material | Zinc diecast |
| Insulation cross-section, min. | 0.85 mm |
| Insulation cross-section, max. | 1.6 mm |
| Category | Cat.5 (ISO/IEC 11801) |
| Contact material | Phosphorus bronze |
| Contact surface | Gold over nickel |
| Connection diameter, solid | 0.41...0.64 mm |
| Conductor connection cross-section, solid (AWG) | AWG 26/1...AWG 22/1 |
| Conductor connection cross-section, solid | 0.13...0.32 mm² |
| Connection diameter, flexible | 0.48...0.76 mm |
| Conductor connection cross-section, flexible (AWG) | AWG 26/7...AWG 22/7 |
| Wire connection cross section, finely stranded, min. | 0.141 mm² |
| Conductor connection cross-section, flexible | 0.14...0.35 mm² |
| Conductor connection cross-section, extremely flexible | , Approval of the cable by Weidmüller necessary |
| Conductor connection cross-section, extremely flexible (AWG) | , Approval of the cable by Weidmüller necessary |
| Note, very finely stranded line connection | Approval of the cable by Weidmüller necessary |
| MICE classification M | M1 |
| MICE classification I | I1 |
| MICE classification C | C1 |
| MICE classification E | E3 |
| Sheath diameter, min. | 5.5 mm |
| Sheath diameter, max. | 8.5 mm |
| Shielding | 360° all-round enclosure |
| Protection degree | IP20 |
| Insertion force | ≤ 30 N |
| Plugging cycles | 750 |
| Material insulator | PA UL94-V0 |
| Ability to reconnect | ≥ 10 cycles (for the same or larger cross-section) |
| Contact resistance | ≤ 20 mΩ |
| Current-carrying capacity at 50 °C | 1 A |
| Dielectric strength, contact / contact | ≥ 1000 V AC/DC |
| Dielectric strength, contact / shield | ≥ 1500 V AC/DC |
| Insulation strength | ≥ 500 MΩ |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Application-specific communication cable facilities | PROFINET installation instructions |
| Certificate no. (cULus) | E316369 |
| Connector standard | IEC 60603-7-51 |
| IP protection classes | IEC 60529 |
| UL standard for communication accessories | UL 1863 |
| Approval/Certificate/Document of Conformity |
[DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418)
[CC-Link IE-PS-RJ45-FH-BK](https://mdcop.weidmueller.com/mediadelivery/asset/900_58432) [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97656) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1132060000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1132060000) |
| Product Change Notification | [TI_20171120_RJ45PN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49694) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_91111) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-44-03-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-44-03-90 |
| ECLASS 13.0 | 27-44-03-90 |
| ECLASS 14.0 | 27-44-03-90 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E316369 |
