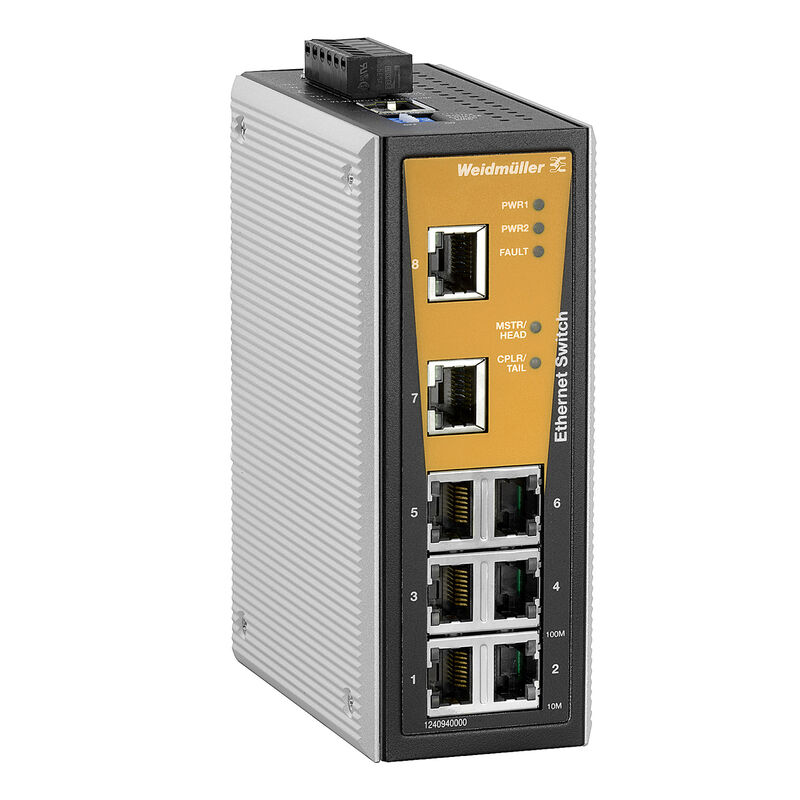

IE-SW-VL08MT-8TX

Network switch, managed, Fast Ethernet, Number of ports: 8x RJ45, IP30, -40 °C...75 °C

Item No. 1240940000

Properties

General ordering data

Version	Network switch, managed, Fast Ethernet, Number of ports: 8x RJ45, IP30, -40 °C...75 °C
Order No.	1240940000
Type	IE-SW-VL08MT-8TX
GTIN (EAN)	4050118028676
Qty.	1 items

Dimensions and weights

Depth	105 mm
Depth (inches)	4.134 inch
Height	135 mm
Height (inches)	5.315 inch
Width	53.6 mm
Width (inches)	2.11 inch
Net weight	890 g

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...75 °C
Humidity	5 to 95 % (non-condensing)

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	9229992a-00b9-4096-8962-200a7f33e289
RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a, 7cI

EMC conformity and approvals

EMC standards	EN 55032 EN 55024 CISPR 32 FCC Part 15 Subpart B Class A IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8
Explosive risk zone	UL/cUL, Class I, Division 2, Groups A, B, C and D ATEX Zone 2 Ex nA nC IIC T4 Gc
Free fall	According to IEC 60068-2-32
Safety standard	UL508 UL 60950-1 EN 60950-1
Ship use	DNV
Shock	according to IEC 60068-2-27
Vibration	according to IEC 60068-2-6

Environmental conditions

Humidity	5 to 95 % (non-condensing)
Operating temperature, max.	75 °C
Operating temperature, min.	-40 °C
Storage temperature, max.	85 °C
Storage temperature, min.	-40 °C

Time interval

5 years

Alarm contact	1 relay output with a current capacity of 1 A at 24 V DC
Console port interface	RS-232
Function DIP switch	Turbo-Ring Master Coupler Reserve
LED indicator	PWR1 PWR2 FAULT MSTR/HEAD CPLR/TAIL 10/100M (TP-Port)
Number of ports	8x RJ45
RJ45 ports	10/100BaseT(X) auto negotiation Full-/half-duplex mode Auto MDI/MDI-X port

Management features

Device configuration	Webbrowser (HTTP/HTTPS) SNMP v1/v2c/v3 Telnet console Local serial console port (RS-232 via RJ-45 port) Windows tool
Monitoring function	SNMP v1/v2c/v3 Link Layer Discovery Protocol (LLDP) Port mirroring Port statistics Port monitoring Syslog RMON (Remote monitoring) Event based warning via E-Mail Event based warning via relay Event based warning via SNMP trap
Network redundancy	Spanning Tree Protocol (STP) Rapid Spanning Tree Protocol (RSTP) Turbo-Ring (recovery time <20 ms) Turbo-Chain (recovery time <20 ms)
Network traffic filter	Quality of Service (QoS) Tag based VLAN Port based VLAN IGMP v1/v2 GMRP Traffic Rate Limiting
IP-address management	Static BootP RARP DHCP-Client DHCP-Server (port based) DHCP Option 82 (Relay Agent)
Security functions	VLAN segmentation Enable/disable ports Loop protection
Time synchronization management	SNTP client NTP client
Industrial protocol support	PROFINET device acc. to conformance class B EtherNet/IP Modbus/TCP slave

MTBF	According to Standard: Telcordia (Bellcore), GB Operating time (hours), min.: 1,339,439 h

Connection type	1 removable 6-pin terminal block
Current consumption	Voltage: 24 V Current: 0.26 A
Overload current protection	Yes
Reverse polarity protection	Yes
Voltage supply	12/24/48 V DC 2 redundant inputs
Voltage supply range	Voltage type: DC Voltage, min.: 9.6 V Voltage, max.: 60 V

Switch characteristics

Bandwidth backplane	1.6 Gbit/s
IGMP-Groups	256
MAC table size	8 K
Max. number of available VLANs	64
Packet buffer size	1 Mbit
Priority queues	4
VLAN-ID max	4094
VLAN-ID min	1

Housing main material	metal
Protection degree	IP30
Speed	Fast Ethernet
Switch	managed
Type of mounting	DIN rail Panel (with optional mounting kit)

Data switching	Store and Forward
Flow control	IEEE 802.3x flow control Back pressure flow control
MIB	MIB-II Ethernet-Like MIB P-BRIDGE MIB Bridge MIB RSTP MIB RMON MIB Group 1, 2, 3, 9
Standard	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for the Spanning Tree protocol IEEE 802.1w for Rapid STP IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN tagging

Approval/Certificate/Document of Conformity	[ODVA Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_35381) [PNO Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_38327) [DNV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_74376) [ATEX certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_82222) [KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_96967) [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35399) [UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_289063)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_103750)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1240940000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1240940000)
Product Change Notification	[35641](https://mdcop.weidmueller.com/mediadelivery/asset/900_35641) [73941](https://mdcop.weidmueller.com/mediadelivery/asset/900_73941)
Software	[Software -- Managed Switch Configuration Utility](https://mdcop.weidmueller.com/mediadelivery/asset/900_35378) [Device description -- SNMP MIB file](https://mdcop.weidmueller.com/mediadelivery/asset/900_35638) [Device description -- GSDML IE-SW-VL08M-series](https://mdcop.weidmueller.com/mediadelivery/asset/900_35663) [Firmware -- Current Firmware](https://mdcop.weidmueller.com/mediadelivery/asset/900_35666) [Device description -- EDS IE-SW-VL08M-series](https://mdcop.weidmueller.com/mediadelivery/asset/900_35669)
User Documentation	[Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_35501) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_39906) [20191204 Security Advisory - Multiple vulnerabilities in IE Managed Switches](https://mdcop.weidmueller.com/mediadelivery/asset/900_102694)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
