Properties

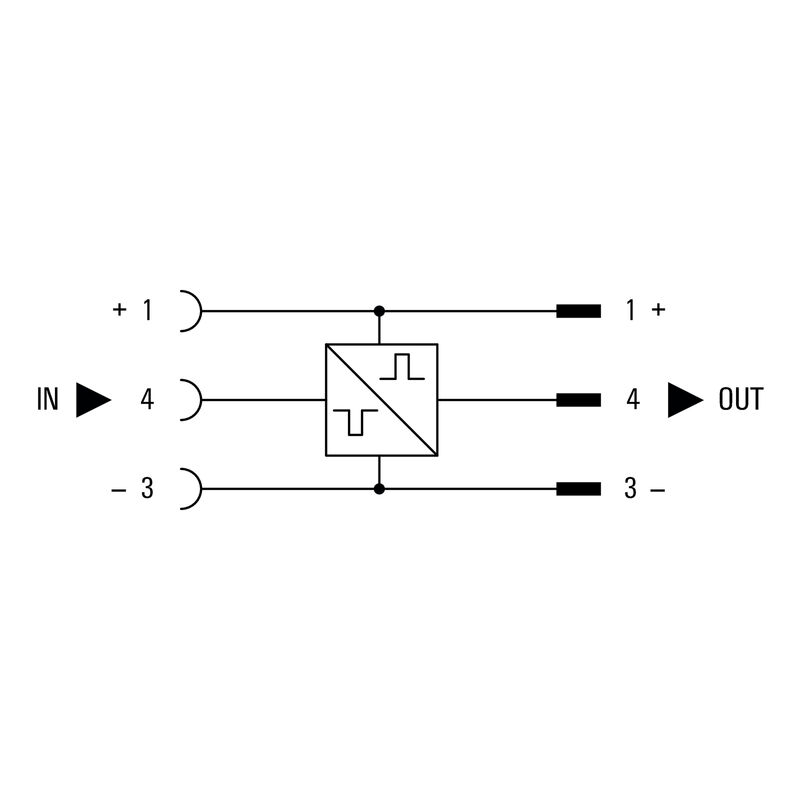

| Version | JACKPAC, Level converter, Rated control voltage: 18...24...30 V DC , Rated switching voltage: 18...30 V DC, Continuous current: 0.4 A, M12 plug/socket, A-coded |
| Order No. | 8852350000 |
| Type | JPP NPN PNP 24VDC |
| GTIN (EAN) | 4032248567355 |
| Qty. | 1 items |
| Height | 14.4 mm |
| Height (inches) | 0.567 inch |
| Width | 36 mm |
| Width (inches) | 1.417 inch |
| Length | 83 mm |
| Length (inches) | 3.268 inch |
| Net weight | 48.5 g |
| Storage temperature | -20 °C...85 °C |
| Operating temperature | 0 °C...60 °C |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| Rated control voltage | 18...24...30 V DC |
| Rated control voltage | 18...30 V DC |
| Rated control voltage | 18...24...30 V DC |
| Sensor | 2-/ 3-Conductor Sensor NPN-type |
| Input current for sensor | <200 mA |
| Continuous current |
|
| Rated switching voltage |
|
| Rated switching voltage | 18...30 V DC |
| Continuous current | 0.4 A |
| Rated switching voltage | 18...30 V DC |
| Continuous current | 0.4 A |
| Rated switching current | 400 mA |
| Voltage drop at max. load | ≤ 1 V |
| Version | Jackpac IP67 with M12 connection |
| Colour | grey |
| Rated voltage | 32 V |
| Surge voltage category | I |
| Pollution severity | 2 |
| Protection degree | IP67 |
| Impulse withstand voltage | 500 V |
| Rated voltage | 32 V |
| Pollution severity | 2 |
| Surge voltage category | I |
| Impulse withstand voltage | 500 V |
| Protection degree | IP67 |
| Standards |
DIN EN 50178
UL508 |
| Certificate no. (cULus) | E141197 |
| Standards |
DIN EN 50178
UL508 |
| Certificate no. (cULus) | E141197 |
| Wire connection method | M12 plug/socket, A-coded |
| Switching voltage, max. | 18...30 V DC |
| Certificate no. (cULus) | E141197 |
| Number of poles | 1 |
| Shielded | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_151640) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8852350000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8852350000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001134 |
| ETIM 7.0 | EC001134 |
| ETIM 8.0 | EC001134 |
| ETIM 9.0 | EC001134 |
| ECLASS 9.0 | 19-17-92-90 |
| ECLASS 9.1 | 27-21-91-90 |
| ECLASS 10.0 | 19-17-92-90 |
| ECLASS 11.0 | 19-17-90-90 |
| ECLASS 12.0 | 19-17-90-90 |
| ECLASS 13.0 | 19-17-90-90 |
| ECLASS 14.0 | 19-17-90-90 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
Accessories
-
-
-
-
Item No.:9457340030Packaging unit:1 PC
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 0.3 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
-
Item No.:9457340150Packaging unit:1 PC
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 1.5 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
-
Item No.:9457340060Packaging unit:1 PC
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 0.6 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
