Properties
| Version | Clamping yoke, Clamping yoke, PA 66 GF 30 |
| Order No. | 1403070000 |

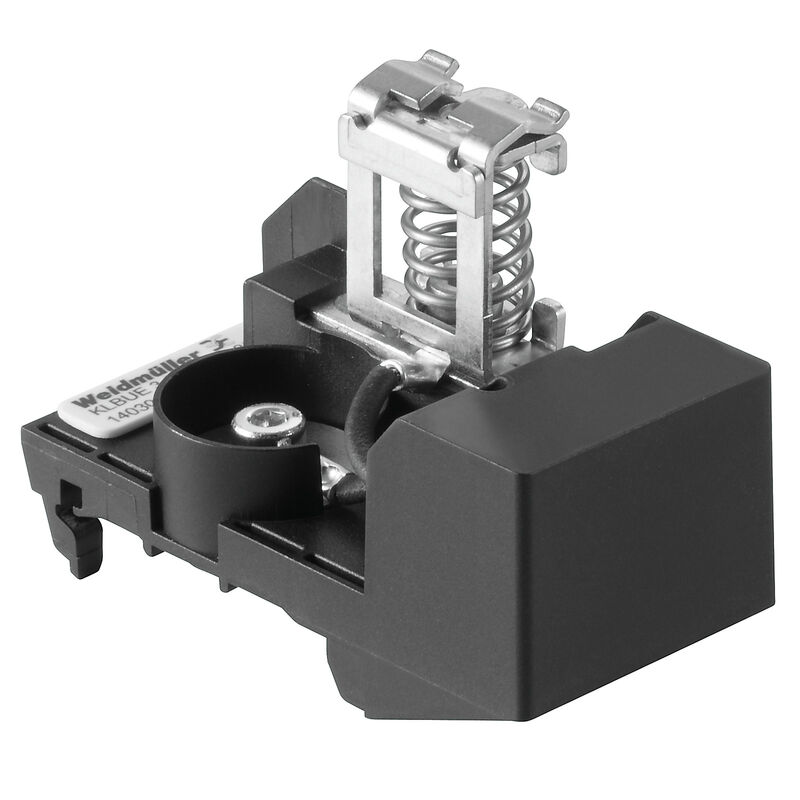

| Type | KLBUE 3-8 RC TS27 |
| GTIN (EAN) | 4050118204780 |
| Qty. | 1 items |
| Depth | 50 mm |
| Depth (inches) | 1.968 inch |
| Height | 67.5 mm |
| Height (inches) | 2.657 inch |
| Width | 35 mm |
| Width (inches) | 1.378 inch |
| Net weight | 61.19 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -25 °C |
| Continuous operating temp., max. | 105 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6fc8563f-82a2-46cf-b3da-0e2c7ddd4382 |
| Material | PA 66 GF 30 |
| Colour |
black
Silver grey |
| UL 94 flammability rating | V-0 |
| Version |
For a shield connection
With resistor |
| Rail | TS 27 |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of mounting | Snap-on |
| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 3 mm |
| Stripping length | 22 mm |
| Type of connection | Spring connection |
| Installation advice | Direct mounting |
| Rail | TS 27 |
| Rated voltage | 230 V |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61670) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1403070000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1403070000) |
| User Documentation |
[Beipackzettel_KLBUE_RC.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35513)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002020 |
| ETIM 7.0 | EC002020 |
| ETIM 8.0 | EC002020 |
| ETIM 9.0 | EC002020 |
| ECLASS 9.0 | 27-14-11-50 |
| ECLASS 9.1 | 27-14-11-50 |
| ECLASS 10.0 | 27-14-11-50 |
| ECLASS 11.0 | 27-14-11-50 |
| ECLASS 12.0 | 27-14-11-50 |
| ECLASS 13.0 | 27-25-01-20 |
| ECLASS 14.0 | 27-25-01-20 |
| ROHS | Conform |
