Properties
| Version | Clamping yoke, Clamping yoke, Steel |
| Order No. | 1749161001 |

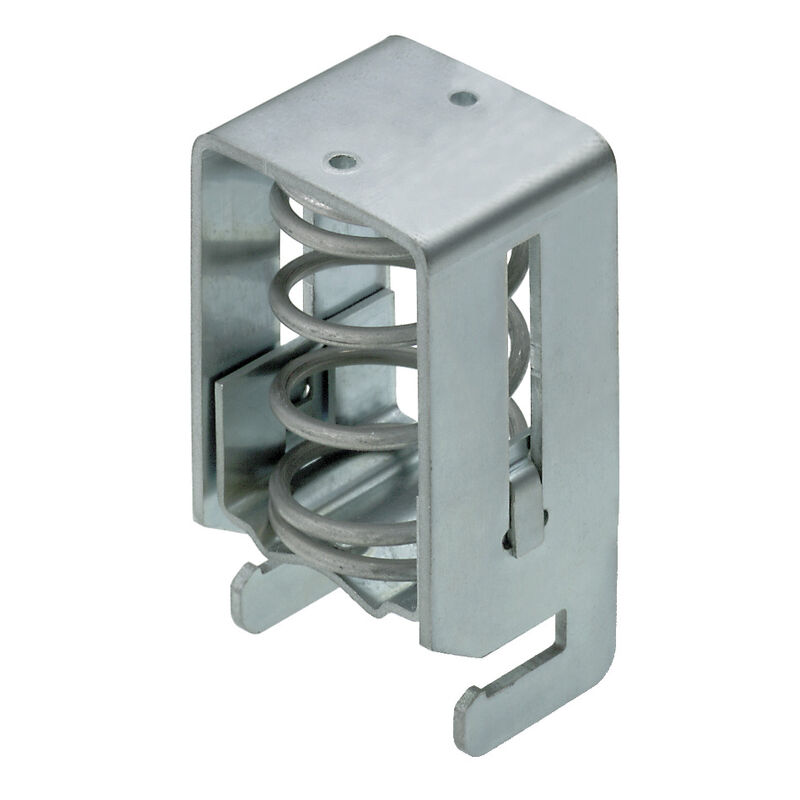

| Type | KLBUE CO 4 |
| GTIN (EAN) | 4032248064458 |
| Qty. | 10 items |
| Depth | 56 mm |
| Depth (inches) | 2.205 inch |
| 32 mm | |
| Height (inches) | 1.26 inch |
| Width | 25 mm |
| Width (inches) | 0.984 inch |
| Mounting dimension - width | 31 mm |
| Net weight | 53.252 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Steel |
| Colour | silver |
| UL 94 flammability rating | None |
| Version | For a shield connection |
| End cover plate required | No |
| Rail | Busbar |
| Explosion-tested version | No |
| Installation advice | Busbar |
| Type of fixing | Snap-on |
| Cable diameter, max. | 28 mm |
| Cable diameter, min. | 15 mm |
| Connection cross-section, stranded, max. | 28 mm² |
| Connection cross-section, stranded, min. | 15 mm² |
| Stripping length | 25 mm |
| Type of connection | Spring connection |
| Pitch in mm (P) | 25 mm |
| Installation advice | Busbar |
| Rail | Busbar |
| Rated cross-section | 28 mm² |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63330) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1749161001) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1749161001) |
| User Documentation |
[Beipackzettel_KLBUE.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35361)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002020 |
| ETIM 7.0 | EC002020 |
| ETIM 8.0 | EC002020 |
| ETIM 9.0 | EC002020 |
| ECLASS 9.0 | 27-14-11-50 |
| ECLASS 9.1 | 27-14-11-50 |
| ECLASS 10.0 | 27-14-11-50 |
| ECLASS 11.0 | 27-14-11-50 |
| ECLASS 12.0 | 27-14-11-50 |
| ECLASS 13.0 | 27-25-01-20 |
| ECLASS 14.0 | 27-25-01-20 |
| ROHS | Conform |
